SpringBoot RedisHealthIndicator.doHealthCheck is not invoked when health check is performed by http://localhost:8080/actuator/health

Hello.

Open JDK 17 spring-boot 3.2.1 spring-boot-actuator 3.2.1

Just trying to call health checks for ElasticSearch and Redis. Both Indicators (rg.springframework.boot.actuate.data.redis.RedisHealthIndicator and org.springframework.boot.actuate.elasticsearch.ElasticsearchRestClientHealthIndicator) extend the same org.springframework.boot.actuate.health.AbstractHealthIndicator.

application.properties contains the following regarding health:

management.security.enabled = false
management.endpoints.web.exposure.include=*
management.endpoint.health.show-details=always

I didn't include management.health.redis.enabled=true - that's the default value.

So when http://localhost:8080/actuator/health is invoked I do receive the following:

{
  "status": "UP",
  "components": {
    "diskSpace": {
      "status": "UP",
      "details": {
        "total":,
        "free":,
        "threshold":,
        "path": " <some path>",
        "exists": true
      }
    },
    "elasticsearch": {
      "status": "UP",
      "details": {
        "cluster_name": "docker-cluster",
        "status": "green",
        "timed_out": false,
        "number_of_nodes": 1,
        "number_of_data_nodes": 1,
        "active_primary_shards": 626,
        "active_shards": 626,
        "relocating_shards": 0,
        "initializing_shards": 0,
        "unassigned_shards": 0,
        "delayed_unassigned_shards": 0,
        "number_of_pending_tasks": 0,
        "number_of_in_flight_fetch": 0,
        "task_max_waiting_in_queue_millis": 0,
        "active_shards_percent_as_number": 100
      }
    },
    "ping": {
      "status": "UP"
    }
  }
}

I tried to debug ElasticsearchRestClientHealthIndicator and RedisHealthIndicator and indeed - ElasticsearchRestClientHealthIndicator.doHealthCheck is invoked but Redis is not.

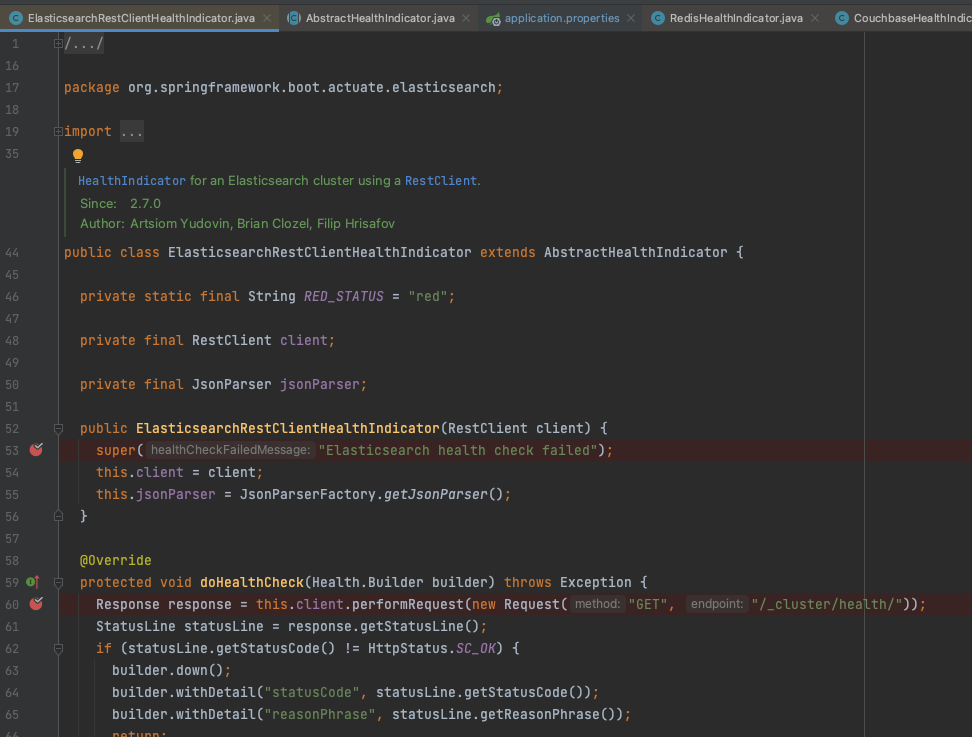

And RedisHealthIndicator looks incompatible but Elastic one is OK (pls see the screen shots). Tried to find solution probably with versions compatibility - no success.

So the question is - why Redis Health is not invoked and how to resolve that? Thx a lot in advance. Appreciate any help.

Have a nice day BR Andrei

Comment From: bclozel

It is likely a configuration issue with your application. Can you run the application in debug mode (setting debug=true in application.properties for example) and provide here the auto-configuration report that is printed in the console when the application starts? The relevant auto-configuration classes should show why some conditions did not match and the endpoint is not contributed to the application.

Comment From: korotkikhandrey

Hello @bclozel Here it is. ConfigReport.log Thx a lot

Comment From: bclozel

The endpoint is not present because Spring Data Redis is not present. For further questions, please use StackOverflow.

   RedisHealthContributorAutoConfiguration:
      Did not match:
         - @ConditionalOnClass did not find required class 'org.springframework.data.redis.connection.RedisConnectionFactory' (OnClassCondition)
