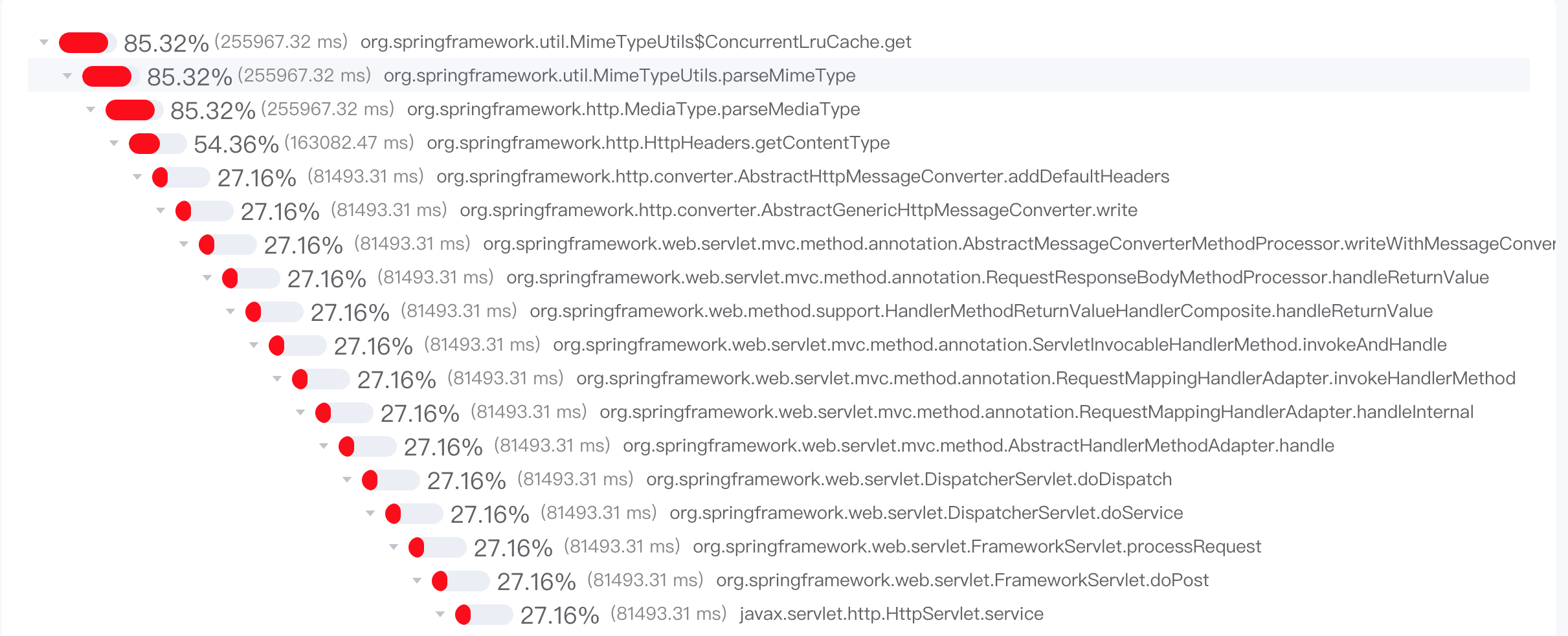

85.32%(255967.32 ms) org.springframework.util.MimeTypeUtils$ConcurrentLruCache.get 85.32%(255967.32 ms) org.springframework.util.MimeTypeUtils.parseMimeType
https://stackoverflow.com/questions/59879550/spring-boot-2-2-x-increased-cpu
It's similar to what this link describes, but I Running 10 days later Appear
spring boot 2.1.x is well, but 2.2.x cpu 90%
Comment From: bclozel
The MimeTypeUtils class belongs to Spring Framework, so this issue is likely to be migrated there.
First, I'd like to get more information about this issue. What kind of MIME types is your application producing here? Could you provide a small sample reproducing the problem?
In this case, I don't need a full web application, a simple Java class with repeated MediaType.parseMediatype calls with values specific to your application should be enough.
Spring Framework made improvements in that area with spring-projects/spring-framework#23211 and we have benchmarks around that part. Anything you can provide here with MediaType.parseMediatype showing the difference between Spring Framework 5.1.x and 5.2.x would be useful.
Without the usage pattern for this in your application, it will be hard to pinpoint the problem. Maybe your application is writing many media types? Or is it highly concurrent?
Thanks!
Comment From: Percy0601
Concurrent Not highly 5-15QPS, For Content-Type: There is no data support because there is no monitoring
Comment From: bclozel
A few queries per-second is not in line with recent issues and the benchmarks we've run, so there might be another problem here.
The screenshot you've provided point to content types produced by the application itself, so you should be able to know which media types are produced here, even without specific monitoring (looking at the controllers and the web configuration for those endpoints might be enough).
Does this happen on all services running on this Spring Boot version, or on a particular application? Anything you can give us here will help us find the issue.
Comment From: Percy0601
My workmate service has the similar problem when the concurrency is relatively large. The service is about 500qps, but after removing the Actuator module and ErrormvcAutoConfiguration, back to normal.
servlet:
multipart:
enabled: false
autoconfigure:
exclude: org.springframework.boot.autoconfigure.web.servlet.error.ErrorMvcAutoConfiguration
management:
endpoints:
enabled-by-default: false
web:
base-path: ""
OR remote actuator starter
Thanks.
Comment From: bclozel
Excluding the error page auto-configuration and removing actuator are very different things. Removing the error auto-configuration means you won't have custom error pages (and Spring Boot won't render JSON error pages, for example). On the other hand, removing the Actuator dependency will remove micrometer instrumentation and actuator endpoints; unless there's heavy traffic on actuator endpoints, this does not explain the performance difference.
I'm reopening this issue to find the actual source of the performance problem. You've described very different scenarios and use cases.
Could you narrow down the problem and maybe provide a sample? I'll try and run comparative benchmarks on my side to try and pinpoint possible issues.
Comment From: rstoyanchev
Note related #24469, perhaps a closer look there could also provide clues here?
Comment From: Percy0601
When MimeTypeUtils.queue is more than half of the default, (the default value is 64, which is more than 32), the code not only performs read lock, but also write lock. Although the LRU algorithm is subsequently used, the program will not be automatically reduced to less than half.
Comment From: bclozel
@Percy0601 I'm sure that I can find a performance difference with this change. Your first use case (long running, low request/sec) might explain that after many hours, we might exceed the 32 limit. But the low request/sec would not explain such a difference, since locks really make a difference with high concurrency.
Again, I'm looking at various benchmarks and improvements - any information about the issues you're seeing will help. Also, could you explain a bit more the screenshot you've provided? The 85% number doesn't tell much: was this profiling performed in production? How long had the application been running? What was the traffic at the time? Is that 85% the overall % of CPU time, or a subset? Is the application itself resolving media types as part as the application code?
Comment From: Percy0601
I also need to explain another phenomenon. After removing the spring-actutor-starter related components, the number of MimeTypeUtils.get () method reduce half. By default, an HTTP request requires 16 times to MimeTypeUtils.get (), and 8 times after remove.
Comment From: Percy0601
85% is JVM, Not Linux System.
Comment From: Percy0601
The program started around the 7th day of operation. On the 9th day, the response time of a code without any logic over 300ms. On the 10th day, the service was disabled by the service management mechanism, and then various alerts were issued.
Comment From: Percy0601
In order to verify the problem today, I used more than 32 common media types for testing. The response time of a non-logical method exceeded 15ms. Before that, it took an average of 0ms or 0.1ms.
Comment From: bclozel
Thanks @Percy0601 , this is just what I needed! I'll work on #24469 and I also have an alternate parser implementation as well. Cheers!
Comment From: Percy0601
Because using the spring-actuator-starter component caused MimeType.get () calls to increase twice times, this issue should be reported back to the spring-boot community, which is also a reason that will affect performance.
Comment From: Percy0601
I am going to bed and hope that the issue will be fixed soon. Thanks
Comment From: bclozel
No need to report that in Spring Boot, all the implementation is here. Having a reasonable cache size should not make the performance way worse. I've scheduled this for the next maintenance release and Spring Boot should pick this up.
Thanks a lot for your help!
Comment From: bclozel
I've merged #24469 and improved the proposed changes.
I've run benchmarks with changes and they're showing a +75% throughput improvement in the following case: * high concurrency * cache size > 32 elements
It seems that reducing the scope of the read lock and keeping track of the size locally improves things.
I've also removed the artificial cacheMaxSize / 2 limit; from now, we'll only keep track of least/most used cache entries as soon as the cache hits its maximum size. This generally improves cases where the limit is not reached, at the cost of possible inefficiencies when the limit has just been reached (trashing cached result that might be needed still).
This last change is a x10 throughput improvement if the cache size is under its limit.
Comment From: hsw409328
In order to verify the problem today, I used more than 32 common media types for testing. The response time of a non-logical method exceeded 15ms. Before that, it took an average of 0ms or 0.1ms.
你好，我正式环境出现了个问题，但是本地一直无法复现，请教一下复现的方式。我这边也使用了多种媒体类型，强制每次都触发读写锁，但是依然无法复现。
Comment From: bclozel
@hsw409328 Could you provide more information? To which version you’re comparing to? What kind of traffic you’re getting in that application? Is that a benchmark or real traffic?
Anything that you can provide to help narrow down the issue would be helpful. With the changes done in this issue, the 32 limit has no effect and should behave like <32.
Comment From: hsw409328
@hsw409328 Could you provide more information? To which version you’re comparing to? What kind of traffic you’re getting in that application? Is that a benchmark or real traffic?
Anything that you can provide to help narrow down the issue would be helpful. With the changes done in this issue, the 32 limit has no effect and should behave like <32.

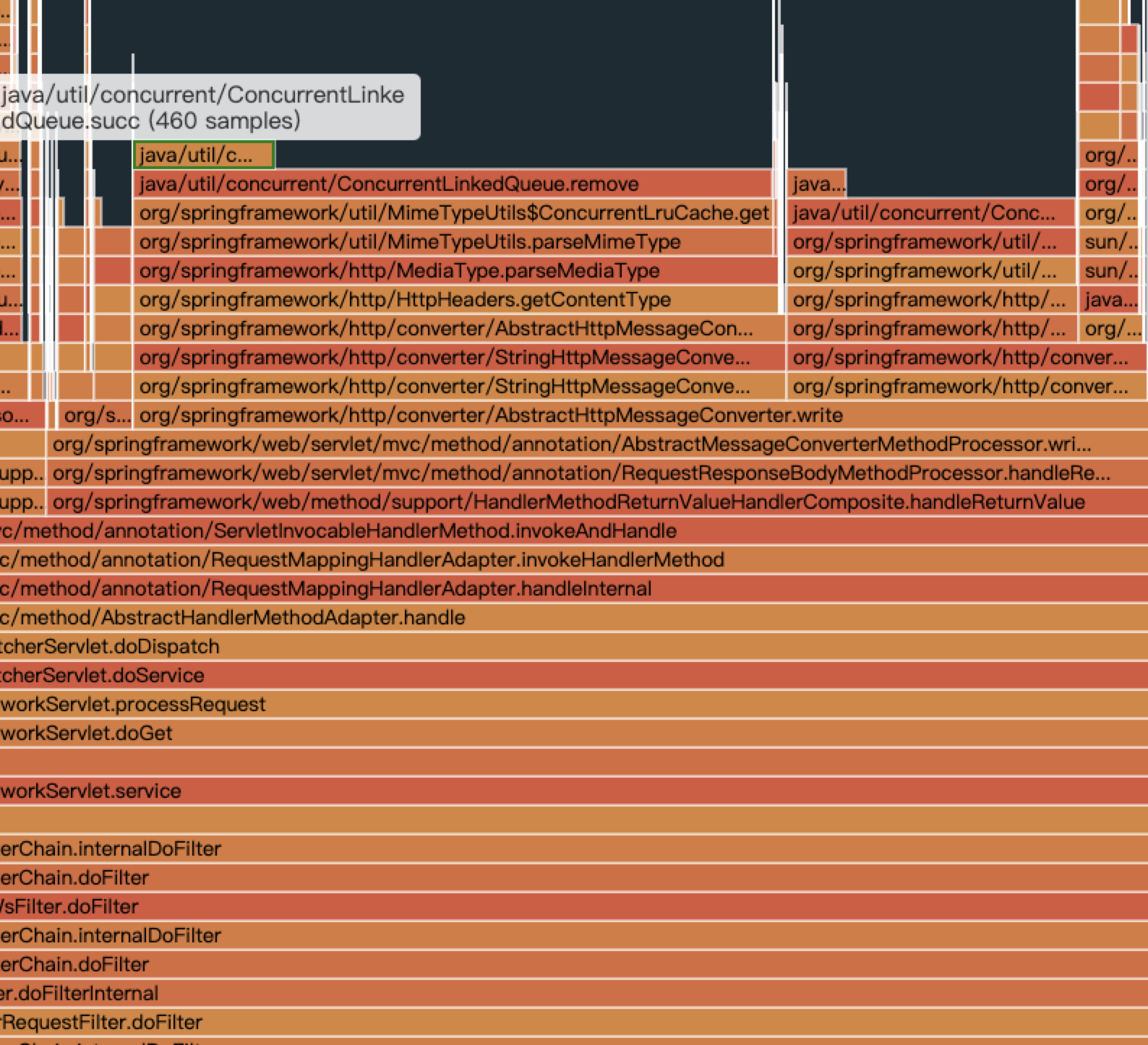

spring boot 2.2.6 qps 400 dump a lot: "http-nio-1601-exec-919" #1195 daemon prio=5 os_prio=0 tid=0x00007fe4c838b000 nid=0x8a3b2 waiting on condition [0x00007fdf2c583000] java.lang.Thread.State: WAITING (parking) at sun.misc.Unsafe.park(Native Method) - parking to wait for <0x00000000c1c33a60> (a java.util.concurrent.locks.AbstractQueuedSynchronizer$ConditionObject) at java.util.concurrent.locks.LockSupport.park(LockSupport.java:175) at java.util.concurrent.locks.AbstractQueuedSynchronizer$ConditionObject.await(AbstractQueuedSynchronizer.java:2039) at org.apache.commons.pool2.impl.LinkedBlockingDeque.takeFirst(LinkedBlockingDeque.java:590) at org.apache.commons.pool2.impl.GenericObjectPool.borrowObject(GenericObjectPool.java:432) at org.apache.commons.pool2.impl.GenericObjectPool.borrowObject(GenericObjectPool.java:349)
dump jmap: num #instances #bytes class name
1: 4071536 97716864 java.util.concurrent.ConcurrentLinkedQueue$Node 2: 50959 77795112 [B 3: 136164 62161192 [C 4: 1010 4140848 [Ljava.nio.ByteBuffer; 5: 119791 2874984 java.lang.String 6: 57984 2783232 org.apache.tomcat.util.buf.ByteChunk 7: 53940 2589120 org.apache.tomcat.util.buf.CharChunk 8: 52930 2540640 org.apache.tomcat.util.buf.MessageBytes 9: 64236 2055552 java.util.concurrent.ConcurrentHashMap$Node 10: 29694 1770824 [Ljava.lang.Object; 11: 13858 1426632 java.lang.Class 12: 15448 1359424 java.lang.reflect.Method 13: 34318 1098176 java.util.HashMap$Node 14: 10047 1045240 [Ljava.util.HashMap$Node; 15: 20992 1041520 [Ljava.lang.String; 16: 16244 909664 java.util.LinkedHashMap 17: 12759 891640 [I 18: 389 666200 [J 19: 20506 656192 java.lang.ThreadLocal$ThreadLocalMap$Entry 20: 15472 618880 java.util.LinkedHashMap$Entry 21: 6276 589024 [Z 22: 1291 565200 [Ljava.util.concurrent.ConcurrentHashMap$Node; 23: 11671 560208 java.nio.HeapByteBuffer 24: 20986 503664 java.util.ArrayList 25: 10087 484176 java.util.HashMap 26: 3068 441792 java.text.DecimalFormat 27: 26221 419536 java.lang.Object
Comment From: hsw409328
@bclozel
Comment From: bclozel
@Percy0601 @hsw409328 I'm trying to find the change that caused the performance issue and how to reproduce that properly in a benchmark. Could you provide some more data, comparing the version that was performing well (Spring Framework version, ideally flamegraph or any performance metric) and the latest current version (with same flamegraph and performance metrics). Thanks a lot for your help.
Comment From: yes-github
@bclozel
正式环境SpringBoot 2.2.0.RELEASE多次碰到相同的问题, 运行一段时间后CPU高居不下, 下面是用arthas抓到的占用CPU高的线程信息, 都和org.springframework.util.MimeTypeUtils$ConcurrentLruCache.get有关, 希望对你有所帮助 :
[arthas@28660]$ thread -n 3
"http-nio-22100-exec-385" Id=12550 cpuUsage=28% WAITING on java.util.concurrent.locks.ReentrantReadWriteLock$NonfairSync@6325fc63 owned by "http-nio-22100-exec-261" Id=11066
at sun.misc.Unsafe.park(Native Method)
- waiting on java.util.concurrent.locks.ReentrantReadWriteLock$NonfairSync@6325fc63
at java.util.concurrent.locks.LockSupport.park(LockSupport.java:175)
at java.util.concurrent.locks.AbstractQueuedSynchronizer.parkAndCheckInterrupt(AbstractQueuedSynchronizer.java:836)
at java.util.concurrent.locks.AbstractQueuedSynchronizer.doAcquireShared(AbstractQueuedSynchronizer.java:967)
at java.util.concurrent.locks.AbstractQueuedSynchronizer.acquireShared(AbstractQueuedSynchronizer.java:1283)
at java.util.concurrent.locks.ReentrantReadWriteLock$ReadLock.lock(ReentrantReadWriteLock.java:727)
at org.springframework.util.MimeTypeUtils$ConcurrentLruCache.get(MimeTypeUtils.java:435)
at org.springframework.util.MimeTypeUtils.parseMimeType(MimeTypeUtils.java:196)
at org.springframework.http.MediaType.parseMediaType(MediaType.java:571)
at org.springframework.http.HttpHeaders.getContentType(HttpHeaders.java:966)
at org.springframework.http.converter.AbstractHttpMessageConverter.addDefaultHeaders(AbstractHttpMessageConverter.java:260)
at org.springframework.http.converter.AbstractGenericHttpMessageConverter.write(AbstractGenericHttpMessageConverter.java:88)
at org.springframework.web.servlet.mvc.method.annotation.AbstractMessageConverterMethodProcessor.writeWithMessageConverters(AbstractMessageConverterMethodProcessor.java:295)
at org.springframework.web.servlet.mvc.method.annotation.RequestResponseBodyMethodProcessor.handleReturnValue(RequestResponseBodyMethodProcessor.java:181)
at org.springframework.web.method.support.HandlerMethodReturnValueHandlerComposite.handleReturnValue(HandlerMethodReturnValueHandlerComposite.java:82)
at org.springframework.web.servlet.mvc.method.annotation.ServletInvocableHandlerMethod.invokeAndHandle(ServletInvocableHandlerMethod.java:124)
at org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerAdapter.invokeHandlerMethod(RequestMappingHandlerAdapter.java:888)
at org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerAdapter.handleInternal(RequestMappingHandlerAdapter.java:793)
at org.springframework.web.servlet.mvc.method.AbstractHandlerMethodAdapter.handle(AbstractHandlerMethodAdapter.java:87)
at org.springframework.web.servlet.DispatcherServlet.doDispatch(DispatcherServlet.java:1040)
at org.springframework.web.servlet.DispatcherServlet.doService(DispatcherServlet.java:943)
at org.springframework.web.servlet.FrameworkServlet.processRequest(FrameworkServlet.java:1006)
at org.springframework.web.servlet.FrameworkServlet.doGet(FrameworkServlet.java:898)
at javax.servlet.http.HttpServlet.service(HttpServlet.java:634)
at org.springframework.web.servlet.FrameworkServlet.service(FrameworkServlet.java:883)
at javax.servlet.http.HttpServlet.service(HttpServlet.java:741)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:231)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
at org.apache.tomcat.websocket.server.WsFilter.doFilter(WsFilter.java:53)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:320)
at org.springframework.security.web.access.intercept.FilterSecurityInterceptor.invoke(FilterSecurityInterceptor.java:126)
at org.springframework.security.web.access.intercept.FilterSecurityInterceptor.doFilter(FilterSecurityInterceptor.java:90)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:334)
at org.springframework.security.web.access.ExceptionTranslationFilter.doFilter(ExceptionTranslationFilter.java:118)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:334)
at org.springframework.security.web.session.SessionManagementFilter.doFilter(SessionManagementFilter.java:137)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:334)
at org.springframework.security.web.authentication.AnonymousAuthenticationFilter.doFilter(AnonymousAuthenticationFilter.java:111)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:334)
at org.springframework.security.web.servletapi.SecurityContextHolderAwareRequestFilter.doFilter(SecurityContextHolderAwareRequestFilter.java:158)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:334)
at org.springframework.security.web.savedrequest.RequestCacheAwareFilter.doFilter(RequestCacheAwareFilter.java:63)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:334)
at org.springframework.security.web.authentication.www.BasicAuthenticationFilter.doFilterInternal(BasicAuthenticationFilter.java:154)
at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:119)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:334)
at org.springframework.security.web.authentication.logout.LogoutFilter.doFilter(LogoutFilter.java:116)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:334)
at org.springframework.security.web.header.HeaderWriterFilter.doHeadersAfter(HeaderWriterFilter.java:92)
at org.springframework.security.web.header.HeaderWriterFilter.doFilterInternal(HeaderWriterFilter.java:77)
at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:119)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:334)
at org.springframework.security.web.context.SecurityContextPersistenceFilter.doFilter(SecurityContextPersistenceFilter.java:105)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:334)
at org.springframework.security.web.context.request.async.WebAsyncManagerIntegrationFilter.doFilterInternal(WebAsyncManagerIntegrationFilter.java:56)
at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:119)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:334)
at org.springframework.security.web.FilterChainProxy.doFilterInternal(FilterChainProxy.java:215)
at org.springframework.security.web.FilterChainProxy.doFilter(FilterChainProxy.java:178)
at org.springframework.web.filter.DelegatingFilterProxy.invokeDelegate(DelegatingFilterProxy.java:358)
at org.springframework.web.filter.DelegatingFilterProxy.doFilter(DelegatingFilterProxy.java:271)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
at org.springframework.web.filter.RequestContextFilter.doFilterInternal(RequestContextFilter.java:100)
at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:119)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
at org.springframework.web.filter.FormContentFilter.doFilterInternal(FormContentFilter.java:93)
at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:119)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
at org.springframework.boot.actuate.metrics.web.servlet.WebMvcMetricsFilter.doFilterInternal(WebMvcMetricsFilter.java:108)
at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:119)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
at org.springframework.web.filter.CharacterEncodingFilter.doFilterInternal(CharacterEncodingFilter.java:201)
at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:119)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
at org.apache.catalina.core.StandardWrapperValve.invoke(StandardWrapperValve.java:202)
at org.apache.catalina.core.StandardContextValve.invoke(StandardContextValve.java:96)
at org.apache.catalina.authenticator.AuthenticatorBase.invoke(AuthenticatorBase.java:526)
at org.apache.catalina.core.StandardHostValve.invoke(StandardHostValve.java:139)
at org.apache.catalina.valves.ErrorReportValve.invoke(ErrorReportValve.java:92)
at org.apache.catalina.core.StandardEngineValve.invoke(StandardEngineValve.java:74)
at org.apache.catalina.connector.CoyoteAdapter.service(CoyoteAdapter.java:343)
at org.apache.coyote.http11.Http11Processor.service(Http11Processor.java:408)
at org.apache.coyote.AbstractProcessorLight.process(AbstractProcessorLight.java:66)
at org.apache.coyote.AbstractProtocol$ConnectionHandler.process(AbstractProtocol.java:861)
at org.apache.tomcat.util.net.NioEndpoint$SocketProcessor.doRun(NioEndpoint.java:1579)
at org.apache.tomcat.util.net.SocketProcessorBase.run(SocketProcessorBase.java:49)
- locked org.apache.tomcat.util.net.NioEndpoint$NioSocketWrapper@126f667
at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1142)
at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:617)
at org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61)
at java.lang.Thread.run(Thread.java:745)
Number of locked synchronizers = 1
- java.util.concurrent.ThreadPoolExecutor$Worker@46c62753
"http-nio-22100-exec-181" Id=8821 cpuUsage=25% WAITING on java.util.concurrent.locks.ReentrantReadWriteLock$NonfairSync@6325fc63 owned by "http-nio-22100-exec-261" Id=11066
at sun.misc.Unsafe.park(Native Method)
- waiting on java.util.concurrent.locks.ReentrantReadWriteLock$NonfairSync@6325fc63
at java.util.concurrent.locks.LockSupport.park(LockSupport.java:175)
at java.util.concurrent.locks.AbstractQueuedSynchronizer.parkAndCheckInterrupt(AbstractQueuedSynchronizer.java:836)
at java.util.concurrent.locks.AbstractQueuedSynchronizer.doAcquireShared(AbstractQueuedSynchronizer.java:967)
at java.util.concurrent.locks.AbstractQueuedSynchronizer.acquireShared(AbstractQueuedSynchronizer.java:1283)
at java.util.concurrent.locks.ReentrantReadWriteLock$ReadLock.lock(ReentrantReadWriteLock.java:727)
at org.springframework.util.MimeTypeUtils$ConcurrentLruCache.get(MimeTypeUtils.java:435)
at org.springframework.util.MimeTypeUtils.parseMimeType(MimeTypeUtils.java:196)
at org.springframework.http.MediaType.parseMediaType(MediaType.java:571)
at org.springframework.http.MediaType.parseMediaTypes(MediaType.java:600)
at org.springframework.http.MediaType.parseMediaTypes(MediaType.java:620)
at org.springframework.web.accept.HeaderContentNegotiationStrategy.resolveMediaTypes(HeaderContentNegotiationStrategy.java:53)
at org.springframework.web.accept.ContentNegotiationManager.resolveMediaTypes(ContentNegotiationManager.java:124)
at org.springframework.web.servlet.mvc.method.annotation.AbstractMessageConverterMethodProcessor.getAcceptableMediaTypes(AbstractMessageConverterMethodProcessor.java:400)
at org.springframework.web.servlet.mvc.method.annotation.AbstractMessageConverterMethodProcessor.writeWithMessageConverters(AbstractMessageConverterMethodProcessor.java:234)
at org.springframework.web.servlet.mvc.method.annotation.RequestResponseBodyMethodProcessor.handleReturnValue(RequestResponseBodyMethodProcessor.java:181)
at org.springframework.web.method.support.HandlerMethodReturnValueHandlerComposite.handleReturnValue(HandlerMethodReturnValueHandlerComposite.java:82)
at org.springframework.web.servlet.mvc.method.annotation.ServletInvocableHandlerMethod.invokeAndHandle(ServletInvocableHandlerMethod.java:124)
at org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerAdapter.invokeHandlerMethod(RequestMappingHandlerAdapter.java:888)
at org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerAdapter.handleInternal(RequestMappingHandlerAdapter.java:793)
at org.springframework.web.servlet.mvc.method.AbstractHandlerMethodAdapter.handle(AbstractHandlerMethodAdapter.java:87)
at org.springframework.web.servlet.DispatcherServlet.doDispatch(DispatcherServlet.java:1040)
at org.springframework.web.servlet.DispatcherServlet.doService(DispatcherServlet.java:943)
at org.springframework.web.servlet.FrameworkServlet.processRequest(FrameworkServlet.java:1006)
at org.springframework.web.servlet.FrameworkServlet.doGet(FrameworkServlet.java:898)
at javax.servlet.http.HttpServlet.service(HttpServlet.java:634)
at org.springframework.web.servlet.FrameworkServlet.service(FrameworkServlet.java:883)
at javax.servlet.http.HttpServlet.service(HttpServlet.java:741)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:231)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
at org.apache.tomcat.websocket.server.WsFilter.doFilter(WsFilter.java:53)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:320)
at org.springframework.security.web.access.intercept.FilterSecurityInterceptor.invoke(FilterSecurityInterceptor.java:126)
at org.springframework.security.web.access.intercept.FilterSecurityInterceptor.doFilter(FilterSecurityInterceptor.java:90)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:334)
at org.springframework.security.web.access.ExceptionTranslationFilter.doFilter(ExceptionTranslationFilter.java:118)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:334)
at org.springframework.security.web.session.SessionManagementFilter.doFilter(SessionManagementFilter.java:137)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:334)
at org.springframework.security.web.authentication.AnonymousAuthenticationFilter.doFilter(AnonymousAuthenticationFilter.java:111)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:334)
at org.springframework.security.web.servletapi.SecurityContextHolderAwareRequestFilter.doFilter(SecurityContextHolderAwareRequestFilter.java:158)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:334)
at org.springframework.security.web.savedrequest.RequestCacheAwareFilter.doFilter(RequestCacheAwareFilter.java:63)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:334)
at org.springframework.security.web.authentication.www.BasicAuthenticationFilter.doFilterInternal(BasicAuthenticationFilter.java:154)
at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:119)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:334)
at org.springframework.security.web.authentication.logout.LogoutFilter.doFilter(LogoutFilter.java:116)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:334)
at org.springframework.security.web.header.HeaderWriterFilter.doHeadersAfter(HeaderWriterFilter.java:92)
at org.springframework.security.web.header.HeaderWriterFilter.doFilterInternal(HeaderWriterFilter.java:77)
at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:119)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:334)
at org.springframework.security.web.context.SecurityContextPersistenceFilter.doFilter(SecurityContextPersistenceFilter.java:105)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:334)
at org.springframework.security.web.context.request.async.WebAsyncManagerIntegrationFilter.doFilterInternal(WebAsyncManagerIntegrationFilter.java:56)
at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:119)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:334)
at org.springframework.security.web.FilterChainProxy.doFilterInternal(FilterChainProxy.java:215)
at org.springframework.security.web.FilterChainProxy.doFilter(FilterChainProxy.java:178)
at org.springframework.web.filter.DelegatingFilterProxy.invokeDelegate(DelegatingFilterProxy.java:358)
at org.springframework.web.filter.DelegatingFilterProxy.doFilter(DelegatingFilterProxy.java:271)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
at org.springframework.web.filter.RequestContextFilter.doFilterInternal(RequestContextFilter.java:100)
at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:119)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
at org.springframework.web.filter.FormContentFilter.doFilterInternal(FormContentFilter.java:93)
at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:119)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
at org.springframework.boot.actuate.metrics.web.servlet.WebMvcMetricsFilter.doFilterInternal(WebMvcMetricsFilter.java:108)
at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:119)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
at org.springframework.web.filter.CharacterEncodingFilter.doFilterInternal(CharacterEncodingFilter.java:201)
at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:119)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
at org.apache.catalina.core.StandardWrapperValve.invoke(StandardWrapperValve.java:202)
at org.apache.catalina.core.StandardContextValve.invoke(StandardContextValve.java:96)
at org.apache.catalina.authenticator.AuthenticatorBase.invoke(AuthenticatorBase.java:526)
at org.apache.catalina.core.StandardHostValve.invoke(StandardHostValve.java:139)
at org.apache.catalina.valves.ErrorReportValve.invoke(ErrorReportValve.java:92)
at org.apache.catalina.core.StandardEngineValve.invoke(StandardEngineValve.java:74)
at org.apache.catalina.connector.CoyoteAdapter.service(CoyoteAdapter.java:343)
at org.apache.coyote.http11.Http11Processor.service(Http11Processor.java:408)
at org.apache.coyote.AbstractProcessorLight.process(AbstractProcessorLight.java:66)
at org.apache.coyote.AbstractProtocol$ConnectionHandler.process(AbstractProtocol.java:861)
at org.apache.tomcat.util.net.NioEndpoint$SocketProcessor.doRun(NioEndpoint.java:1579)
at org.apache.tomcat.util.net.SocketProcessorBase.run(SocketProcessorBase.java:49)
- locked org.apache.tomcat.util.net.NioEndpoint$NioSocketWrapper@66c7746f
at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1142)
at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:617)
at org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61)
at java.lang.Thread.run(Thread.java:745)
Number of locked synchronizers = 1
- java.util.concurrent.ThreadPoolExecutor$Worker@2b11a006
"http-nio-22100-exec-451" Id=19847 cpuUsage=15% WAITING on java.util.concurrent.locks.ReentrantReadWriteLock$NonfairSync@6325fc63 owned by "http-nio-22100-exec-261" Id=11066
at sun.misc.Unsafe.park(Native Method)
- waiting on java.util.concurrent.locks.ReentrantReadWriteLock$NonfairSync@6325fc63
at java.util.concurrent.locks.LockSupport.park(LockSupport.java:175)
at java.util.concurrent.locks.AbstractQueuedSynchronizer.parkAndCheckInterrupt(AbstractQueuedSynchronizer.java:836)
at java.util.concurrent.locks.AbstractQueuedSynchronizer.doAcquireShared(AbstractQueuedSynchronizer.java:967)
at java.util.concurrent.locks.AbstractQueuedSynchronizer.acquireShared(AbstractQueuedSynchronizer.java:1283)
at java.util.concurrent.locks.ReentrantReadWriteLock$ReadLock.lock(ReentrantReadWriteLock.java:727)
at org.springframework.util.MimeTypeUtils$ConcurrentLruCache.get(MimeTypeUtils.java:435)
at org.springframework.util.MimeTypeUtils.parseMimeType(MimeTypeUtils.java:196)
at org.springframework.http.MediaType.parseMediaType(MediaType.java:571)
at org.springframework.http.HttpHeaders.getContentType(HttpHeaders.java:966)
at org.springframework.http.converter.json.AbstractJackson2HttpMessageConverter.writeInternal(AbstractJackson2HttpMessageConverter.java:253)
at org.springframework.http.converter.AbstractGenericHttpMessageConverter.write(AbstractGenericHttpMessageConverter.java:104)
at org.springframework.web.servlet.mvc.method.annotation.AbstractMessageConverterMethodProcessor.writeWithMessageConverters(AbstractMessageConverterMethodProcessor.java:295)
at org.springframework.web.servlet.mvc.method.annotation.RequestResponseBodyMethodProcessor.handleReturnValue(RequestResponseBodyMethodProcessor.java:181)
at org.springframework.web.method.support.HandlerMethodReturnValueHandlerComposite.handleReturnValue(HandlerMethodReturnValueHandlerComposite.java:82)
at org.springframework.web.servlet.mvc.method.annotation.ServletInvocableHandlerMethod.invokeAndHandle(ServletInvocableHandlerMethod.java:124)
at org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerAdapter.invokeHandlerMethod(RequestMappingHandlerAdapter.java:888)
at org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerAdapter.handleInternal(RequestMappingHandlerAdapter.java:793)
at org.springframework.web.servlet.mvc.method.AbstractHandlerMethodAdapter.handle(AbstractHandlerMethodAdapter.java:87)
at org.springframework.web.servlet.DispatcherServlet.doDispatch(DispatcherServlet.java:1040)
at org.springframework.web.servlet.DispatcherServlet.doService(DispatcherServlet.java:943)
at org.springframework.web.servlet.FrameworkServlet.processRequest(FrameworkServlet.java:1006)
at org.springframework.web.servlet.FrameworkServlet.doGet(FrameworkServlet.java:898)
at javax.servlet.http.HttpServlet.service(HttpServlet.java:634)
at org.springframework.web.servlet.FrameworkServlet.service(FrameworkServlet.java:883)
at javax.servlet.http.HttpServlet.service(HttpServlet.java:741)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:231)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
at org.apache.tomcat.websocket.server.WsFilter.doFilter(WsFilter.java:53)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:320)
at org.springframework.security.web.access.intercept.FilterSecurityInterceptor.invoke(FilterSecurityInterceptor.java:126)
at org.springframework.security.web.access.intercept.FilterSecurityInterceptor.doFilter(FilterSecurityInterceptor.java:90)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:334)
at org.springframework.security.web.access.ExceptionTranslationFilter.doFilter(ExceptionTranslationFilter.java:118)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:334)
at org.springframework.security.web.session.SessionManagementFilter.doFilter(SessionManagementFilter.java:137)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:334)
at org.springframework.security.web.authentication.AnonymousAuthenticationFilter.doFilter(AnonymousAuthenticationFilter.java:111)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:334)
at org.springframework.security.web.servletapi.SecurityContextHolderAwareRequestFilter.doFilter(SecurityContextHolderAwareRequestFilter.java:158)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:334)
at org.springframework.security.web.savedrequest.RequestCacheAwareFilter.doFilter(RequestCacheAwareFilter.java:63)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:334)
at org.springframework.security.web.authentication.www.BasicAuthenticationFilter.doFilterInternal(BasicAuthenticationFilter.java:154)
at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:119)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:334)
at org.springframework.security.web.authentication.logout.LogoutFilter.doFilter(LogoutFilter.java:116)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:334)
at org.springframework.security.web.header.HeaderWriterFilter.doHeadersAfter(HeaderWriterFilter.java:92)
at org.springframework.security.web.header.HeaderWriterFilter.doFilterInternal(HeaderWriterFilter.java:77)
at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:119)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:334)
at org.springframework.security.web.context.SecurityContextPersistenceFilter.doFilter(SecurityContextPersistenceFilter.java:105)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:334)
at org.springframework.security.web.context.request.async.WebAsyncManagerIntegrationFilter.doFilterInternal(WebAsyncManagerIntegrationFilter.java:56)
at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:119)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:334)
at org.springframework.security.web.FilterChainProxy.doFilterInternal(FilterChainProxy.java:215)
at org.springframework.security.web.FilterChainProxy.doFilter(FilterChainProxy.java:178)
at org.springframework.web.filter.DelegatingFilterProxy.invokeDelegate(DelegatingFilterProxy.java:358)
at org.springframework.web.filter.DelegatingFilterProxy.doFilter(DelegatingFilterProxy.java:271)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
at org.springframework.web.filter.RequestContextFilter.doFilterInternal(RequestContextFilter.java:100)
at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:119)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
at org.springframework.web.filter.FormContentFilter.doFilterInternal(FormContentFilter.java:93)
at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:119)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
at org.springframework.boot.actuate.metrics.web.servlet.WebMvcMetricsFilter.doFilterInternal(WebMvcMetricsFilter.java:108)
at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:119)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
at org.springframework.web.filter.CharacterEncodingFilter.doFilterInternal(CharacterEncodingFilter.java:201)
at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:119)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
at org.apache.catalina.core.StandardWrapperValve.invoke(StandardWrapperValve.java:202)
at org.apache.catalina.core.StandardContextValve.invoke(StandardContextValve.java:96)
at org.apache.catalina.authenticator.AuthenticatorBase.invoke(AuthenticatorBase.java:526)
at org.apache.catalina.core.StandardHostValve.invoke(StandardHostValve.java:139)
at org.apache.catalina.valves.ErrorReportValve.invoke(ErrorReportValve.java:92)
at org.apache.catalina.core.StandardEngineValve.invoke(StandardEngineValve.java:74)
at org.apache.catalina.connector.CoyoteAdapter.service(CoyoteAdapter.java:343)
at org.apache.coyote.http11.Http11Processor.service(Http11Processor.java:408)
at org.apache.coyote.AbstractProcessorLight.process(AbstractProcessorLight.java:66)
at org.apache.coyote.AbstractProtocol$ConnectionHandler.process(AbstractProtocol.java:861)
at org.apache.tomcat.util.net.NioEndpoint$SocketProcessor.doRun(NioEndpoint.java:1579)
at org.apache.tomcat.util.net.SocketProcessorBase.run(SocketProcessorBase.java:49)
- locked org.apache.tomcat.util.net.NioEndpoint$NioSocketWrapper@6e6a056d
at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1142)
at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:617)
at org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61)
at java.lang.Thread.run(Thread.java:745)
Number of locked synchronizers = 1
- java.util.concurrent.ThreadPoolExecutor$Worker@3c15e606
Affect(row-cnt:0) cost in 566 ms.
Comment From: bclozel
I think I’ve found it, thanks for the information all! I’ll create a new issue and link back here as it’s a different problem.
Comment From: bclozel
See #24886
