Affects: SpringBoot 2.6.6, Spring Expression 5.3.18
Hi, engineers.
I think I have found an issue regarding PropertyCacheKey. An exception is thrown when I load a login page (containing following fragment) for the first time an application is started. I am using following template in spring:
<script th:if="#authentication != null
&& #authentication.principal.class.name == 'com.xxxx.utils.security.AppUserDetails'}"
th:inline="javascript">
ga('send', 'pageview', {
'dimension1': /*[[${#authentication.principal.activeBizId}]]*/ 0
});
</script>
<script th:if="${#authentication != null
&& #authentication.class.name == 'com.xxxx.utils.security.CustomerAuthenticationToken'}"
th:inline="javascript">
ga('send', 'pageview', {
'dimension1': /*[[${#authentication.bizId}]]*/ 0
});
</script>
The difference between two scripts is the IF attribute, which contains authentication.principal.class.name or authentication.class.name. And the order matters.

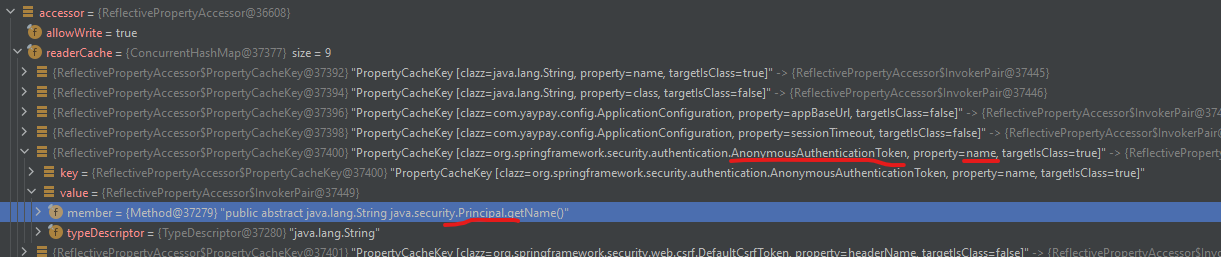

Problem with this is that both attributes are represented by the same cacheKey (className(=AnonymousAuth class) and propertyName(=name)). So, when the second part of fragment is being evaluated, there is an exception thrown java.lang.IllegalArgumentException: object is not an instance of declaring class. because a getNameOfPrincipal method getter has been returned from a cache, which is an invalid invocation on a AnonymousAuthentication.
There is a simple workaround, I can use canonicalName for a second part of fragment, but anyway, I would expect this to work. I consider this to be low severity and maybe there would be simpler more convinient way how to achieve this behaviour.
Exception:
java.lang.IllegalArgumentException: object is not an instance of declaring class
at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
at java.base/jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.base/java.lang.reflect.Method.invoke(Method.java:566)
at org.springframework.expression.spel.support.ReflectivePropertyAccessor$OptimalPropertyAccessor.read(ReflectivePropertyAccessor.java:704)
at org.springframework.expression.spel.ast.PropertyOrFieldReference.readProperty(PropertyOrFieldReference.java:204)
at org.springframework.expression.spel.ast.PropertyOrFieldReference.getValueInternal(PropertyOrFieldReference.java:104)
at org.springframework.expression.spel.ast.PropertyOrFieldReference.access$000(PropertyOrFieldReference.java:51)
at org.springframework.expression.spel.ast.PropertyOrFieldReference$AccessorLValue.getValue(PropertyOrFieldReference.java:406)
at org.springframework.expression.spel.ast.CompoundExpression.getValueInternal(CompoundExpression.java:92)
at org.springframework.expression.spel.ast.OpEQ.getValueInternal(OpEQ.java:42)
at org.springframework.expression.spel.ast.OpEQ.getValueInternal(OpEQ.java:32)
at org.springframework.expression.spel.ast.SpelNodeImpl.getValue(SpelNodeImpl.java:188)
at org.springframework.expression.spel.ast.OpAnd.getBooleanValue(OpAnd.java:57)
at org.springframework.expression.spel.ast.OpAnd.getValueInternal(OpAnd.java:52)
at org.springframework.expression.spel.ast.SpelNodeImpl.getValue(SpelNodeImpl.java:112)
at org.springframework.expression.spel.standard.SpelExpression.getValue(SpelExpression.java:338)
at org.thymeleaf.spring5.expression.SPELVariableExpressionEvaluator.evaluate(SPELVariableExpressionEvaluator.java:265)
at org.thymeleaf.standard.expression.VariableExpression.executeVariableExpression(VariableExpression.java:166)
at org.thymeleaf.standard.expression.SimpleExpression.executeSimple(SimpleExpression.java:66)
at org.thymeleaf.standard.expression.Expression.execute(Expression.java:109)
at org.thymeleaf.standard.expression.Expression.execute(Expression.java:138)
at org.thymeleaf.standard.expression.Expression.execute(Expression.java:125)
at org.thymeleaf.standard.processor.StandardIfTagProcessor.isVisible(StandardIfTagProcessor.java:59)
at org.thymeleaf.standard.processor.AbstractStandardConditionalVisibilityTagProcessor.doProcess(AbstractStandardConditionalVisibilityTagProcessor.java:61)
at org.thymeleaf.processor.element.AbstractAttributeTagProcessor.doProcess(AbstractAttributeTagProcessor.java:74)
at org.thymeleaf.processor.element.AbstractElementTagProcessor.process(AbstractElementTagProcessor.java:95)
at org.thymeleaf.util.ProcessorConfigurationUtils$ElementTagProcessorWrapper.process(ProcessorConfigurationUtils.java:633)
at org.thymeleaf.engine.ProcessorTemplateHandler.handleOpenElement(ProcessorTemplateHandler.java:1314)
at org.thymeleaf.engine.OpenElementTag.beHandled(OpenElementTag.java:205)
at org.thymeleaf.engine.Model.process(Model.java:282)
at org.thymeleaf.engine.ProcessorTemplateHandler.handleOpenElement(ProcessorTemplateHandler.java:1587)
at org.thymeleaf.engine.OpenElementTag.beHandled(OpenElementTag.java:205)
at org.thymeleaf.engine.Model.process(Model.java:282)
at org.thymeleaf.engine.ProcessorTemplateHandler.handleOpenElement(ProcessorTemplateHandler.java:1587)
at org.thymeleaf.engine.OpenElementTag.beHandled(OpenElementTag.java:205)
at org.thymeleaf.engine.TemplateModel.process(TemplateModel.java:136)
at org.thymeleaf.engine.TemplateManager.parseAndProcess(TemplateManager.java:592)
at org.thymeleaf.TemplateEngine.process(TemplateEngine.java:1098)
at org.thymeleaf.TemplateEngine.process(TemplateEngine.java:1072)
at org.thymeleaf.spring5.view.ThymeleafView.renderFragment(ThymeleafView.java:366)
at org.thymeleaf.spring5.view.ThymeleafView.render(ThymeleafView.java:190)
at org.springframework.web.servlet.DispatcherServlet.render(DispatcherServlet.java:1401)
at org.springframework.web.servlet.DispatcherServlet.processDispatchResult(DispatcherServlet.java:1145)
at org.springframework.web.servlet.DispatcherServlet.doDispatch(DispatcherServlet.java:1084)
at org.springframework.web.servlet.DispatcherServlet.doService(DispatcherServlet.java:963)
at org.springframework.web.servlet.FrameworkServlet.processRequest(FrameworkServlet.java:1006)
at org.springframework.web.servlet.FrameworkServlet.doGet(FrameworkServlet.java:898)
at javax.servlet.http.HttpServlet.service(HttpServlet.java:655)
at org.springframework.web.servlet.FrameworkServlet.service(FrameworkServlet.java:883)
at javax.servlet.http.HttpServlet.service(HttpServlet.java:764)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:227)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:162)
at org.apache.tomcat.websocket.server.WsFilter.doFilter(WsFilter.java:53)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:189)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:162)
at org.springframework.security.web.FilterChainProxy.doFilterInternal(FilterChainProxy.java:204)
at org.springframework.security.web.FilterChainProxy.doFilter(FilterChainProxy.java:178)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:189)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:162)
at org.springframework.security.saml.SAMLLogoutFilter.processLogout(SAMLLogoutFilter.java:168)
at org.springframework.security.saml.SAMLLogoutFilter.doFilter(SAMLLogoutFilter.java:110)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:189)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:162)
at org.springframework.security.saml.SAMLLogoutProcessingFilter.processLogout(SAMLLogoutProcessingFilter.java:209)
at org.springframework.security.saml.SAMLLogoutProcessingFilter.doFilter(SAMLLogoutProcessingFilter.java:107)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:189)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:162)
at org.springframework.security.web.authentication.AbstractAuthenticationProcessingFilter.doFilter(AbstractAuthenticationProcessingFilter.java:219)
at org.springframework.security.web.authentication.AbstractAuthenticationProcessingFilter.doFilter(AbstractAuthenticationProcessingFilter.java:213)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:189)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:162)
at org.springframework.security.web.authentication.AbstractAuthenticationProcessingFilter.doFilter(AbstractAuthenticationProcessingFilter.java:219)
at org.springframework.security.web.authentication.AbstractAuthenticationProcessingFilter.doFilter(AbstractAuthenticationProcessingFilter.java:213)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:189)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:162)
at org.springframework.security.saml.metadata.MetadataDisplayFilter.doFilter(MetadataDisplayFilter.java:84)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:189)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:162)
at org.springframework.security.saml.metadata.MetadataGeneratorFilter.doFilter(MetadataGeneratorFilter.java:87)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:189)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:162)
at org.springframework.security.saml.SAMLDiscovery.doFilter(SAMLDiscovery.java:137)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:189)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:162)
at org.springframework.security.saml.SAMLEntryPoint.doFilter(SAMLEntryPoint.java:102)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:189)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:162)
at org.springframework.security.web.authentication.AbstractAuthenticationProcessingFilter.doFilter(AbstractAuthenticationProcessingFilter.java:219)
at org.springframework.security.web.authentication.AbstractAuthenticationProcessingFilter.doFilter(AbstractAuthenticationProcessingFilter.java:213)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:189)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:162)
at org.springframework.web.servlet.resource.ResourceUrlEncodingFilter.doFilter(ResourceUrlEncodingFilter.java:67)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:189)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:162)
at net.bull.javamelody.MonitoringFilter.doFilter(MonitoringFilter.java:239)
at net.bull.javamelody.MonitoringFilter.doFilter(MonitoringFilter.java:215)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:189)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:162)
at com.xxxx.utils.BizUrlFilter.doFilter(BizUrlFilter.java:62)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:189)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:162)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:327)
at org.springframework.security.web.access.intercept.FilterSecurityInterceptor.invoke(FilterSecurityInterceptor.java:115)
at org.springframework.security.web.access.intercept.FilterSecurityInterceptor.doFilter(FilterSecurityInterceptor.java:81)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:336)
at org.springframework.security.web.access.ExceptionTranslationFilter.doFilter(ExceptionTranslationFilter.java:122)
at org.springframework.security.web.access.ExceptionTranslationFilter.doFilter(ExceptionTranslationFilter.java:116)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:336)
at com.xxxx.utils.SecurityGroupsFilter.doFilterInternal(SecurityGroupsFilter.java:125)
at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:117)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:336)
at org.springframework.security.web.session.SessionManagementFilter.doFilter(SessionManagementFilter.java:126)
at org.springframework.security.web.session.SessionManagementFilter.doFilter(SessionManagementFilter.java:81)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:336)
at org.springframework.security.web.authentication.AnonymousAuthenticationFilter.doFilter(AnonymousAuthenticationFilter.java:109)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:336)
at org.springframework.security.web.authentication.rememberme.RememberMeAuthenticationFilter.doFilter(RememberMeAuthenticationFilter.java:136)
at org.springframework.security.web.authentication.rememberme.RememberMeAuthenticationFilter.doFilter(RememberMeAuthenticationFilter.java:93)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:336)
at org.springframework.security.web.servletapi.SecurityContextHolderAwareRequestFilter.doFilter(SecurityContextHolderAwareRequestFilter.java:149)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:336)
at org.springframework.security.web.savedrequest.RequestCacheAwareFilter.doFilter(RequestCacheAwareFilter.java:63)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:336)
at org.springframework.security.web.FilterChainProxy.doFilterInternal(FilterChainProxy.java:204)
at org.springframework.security.web.FilterChainProxy.doFilter(FilterChainProxy.java:178)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:336)
at org.springframework.security.web.authentication.AbstractAuthenticationProcessingFilter.doFilter(AbstractAuthenticationProcessingFilter.java:219)
at org.springframework.security.web.authentication.AbstractAuthenticationProcessingFilter.doFilter(AbstractAuthenticationProcessingFilter.java:213)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:336)
at org.springframework.security.web.authentication.AbstractAuthenticationProcessingFilter.doFilter(AbstractAuthenticationProcessingFilter.java:219)
at org.springframework.security.web.authentication.AbstractAuthenticationProcessingFilter.doFilter(AbstractAuthenticationProcessingFilter.java:213)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:336)
at org.springframework.security.web.authentication.logout.LogoutFilter.doFilter(LogoutFilter.java:103)
at org.springframework.security.web.authentication.logout.LogoutFilter.doFilter(LogoutFilter.java:89)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:336)
at org.springframework.security.web.csrf.CsrfFilter.doFilterInternal(CsrfFilter.java:117)
at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:117)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:336)
at org.springframework.security.web.header.HeaderWriterFilter.doHeadersAfter(HeaderWriterFilter.java:90)
at org.springframework.security.web.header.HeaderWriterFilter.doFilterInternal(HeaderWriterFilter.java:75)
at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:117)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:336)
at org.springframework.security.web.context.SecurityContextPersistenceFilter.doFilter(SecurityContextPersistenceFilter.java:110)
at org.springframework.security.web.context.SecurityContextPersistenceFilter.doFilter(SecurityContextPersistenceFilter.java:80)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:336)
at org.springframework.security.web.context.request.async.WebAsyncManagerIntegrationFilter.doFilterInternal(WebAsyncManagerIntegrationFilter.java:55)
at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:117)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:336)
at org.springframework.security.saml.metadata.MetadataGeneratorFilter.doFilter(MetadataGeneratorFilter.java:87)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:336)
at org.springframework.security.web.FilterChainProxy.doFilterInternal(FilterChainProxy.java:211)
at org.springframework.security.web.FilterChainProxy.doFilter(FilterChainProxy.java:183)
at org.springframework.web.filter.DelegatingFilterProxy.invokeDelegate(DelegatingFilterProxy.java:354)
at org.springframework.web.filter.DelegatingFilterProxy.doFilter(DelegatingFilterProxy.java:267)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:189)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:162)
at org.springframework.web.filter.RequestContextFilter.doFilterInternal(RequestContextFilter.java:100)
at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:117)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:189)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:162)
at org.springframework.web.filter.FormContentFilter.doFilterInternal(FormContentFilter.java:93)
at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:117)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:189)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:162)
at org.springframework.session.web.http.SessionRepositoryFilter.doFilterInternal(SessionRepositoryFilter.java:142)
at org.springframework.session.web.http.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:82)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:189)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:162)
at org.springframework.boot.actuate.metrics.web.servlet.WebMvcMetricsFilter.doFilterInternal(WebMvcMetricsFilter.java:96)
I really appretiate your time, thank you for your amazing work!
Comment From: snicoll
@dbydzovsky sorry it took so long to triage the issue. I am trying to get my head around the sample you've shared and how the cache key is computed. Would it be possible for you to share a small sample that we can run to reproduce the issue? I am afraid that the code snippet above does not provide enough information for me to figure out how to reproduce the error.
Comment From: dbydzovsky
@snicoll
I recovered one screenshot from my debugging session. I should have attached it here previously.
During debugging I have discovered that spring was using cache for that expressions and that the PropertyCacheKey is computed like this: "className + propertyName", so it means that authentication.principal.class.name and authentication.class.name shares the same key, even though they are both different.
I have no clue this issue occurs in latest springboot 3, but, I hope it is now much more clearer.
Comment From: snicoll
Thanks @dbydzovsky. I am not sure about your assumptions about the cache here and I wonder if Thymeleaf isn't involved. If you can debug this still, it would be nice to see what the raw SpEL expression looks like. Adding a breakpoint in SPELVariableExpressionEvaluator and extracting the SpEL expressions that thymeaf is asking to evaluate would be helpful.
Comment From: dbydzovsky
I have created a small app that reproduces that exact error with spring boot 3.1.4. https://github.com/dbydzovsky/spring-framework-28456
Also, that SPELVariableExpressionEvaluator has param that contains whole string, e.g. #authentication != null && #authentication.principal.class.name == 'com.example.utils.security.AppUserDetails'
Comment From: snicoll
OK I've tried again and I can confirm that it's
#authentication != null && #authentication.principal.class.name == 'com.example.utils.security.AppUserDetails'
The evaluation of authentication.principal.class.name leads to register a cache key for class org.springframework.security.core.userdetails.User#name which is clearly invalid and you using the canonicalName is working around the fact it registered a key for the wrong target class.
I think it's best to report this against Thymeleaf, there is a lot of code around the evaluation context that is thymeleaf specific and I think you'll probably get a better answer there to what you're trying to do. Feel free to link this issue with the Thymeleaf one we can help the team there if they have Spring-related questions.
