Spring Spring stomp websocket parse CONNECT frame error

Affects: 6.1.1

Client: Use rx-Stomp js lib to connect websocket

const rxStomp = new RxStomp();
  rxStomp.configure({
    brokerURL: `ws://localhost:8080/websocket/tracker/4/efa0b978/websocket`,
    connectHeaders: {
      Authorization: token,
    },
    heartbeatIncoming: 0,
    heartbeatOutgoing: 0,
  });

  rxStomp.activate();

Server:
Config endpoints at implement class WebSocketMessageBrokerConfigurer:

@Configuration
@EnableWebSocketMessageBroker
public class WebsocketConfiguration implements WebSocketMessageBrokerConfigurer {
@Override
    public void configureMessageBroker(MessageBrokerRegistry config) {
        config.enableSimpleBroker("/topic");
    }
@Override
    public void registerStompEndpoints(StompEndpointRegistry registry) {
        registry
            .addEndpoint("/websocket/tracker")
            .withSockJS();
    }
}

I connected success to websocket. By default, rx-stomp sends a 'CONNECT' frame when the handshake success, but the server cannot read it's frame and throw an exception:

2024-01-09T10:52:55.179+07:00 ERROR 9045 --- [backend] [   XNIO-1 I/O-6] s.w.s.s.t.s.WebSocketServerSockJsSession : Broken data received. Terminating WebSocket connection abruptly

com.fasterxml.jackson.core.JsonParseException: Unrecognized token 'CONNECT': was expecting (JSON String, Number, Array, Object or token 'null', 'true' or 'false')
 at [Source: (String)"CONNECT
accept-version:1.2,1.1,1.0
heart-beat:0,0

\u0000"; line: 1, column: 8]
    at com.fasterxml.jackson.core.JsonParser._constructError(JsonParser.java:2477)
    at com.fasterxml.jackson.core.base.ParserMinimalBase._reportError(ParserMinimalBase.java:760)
    at com.fasterxml.jackson.core.json.ReaderBasedJsonParser._reportInvalidToken(ReaderBasedJsonParser.java:3041)
    at com.fasterxml.jackson.core.json.ReaderBasedJsonParser._handleOddValue(ReaderBasedJsonParser.java:2082)
    at com.fasterxml.jackson.core.json.ReaderBasedJsonParser.nextToken(ReaderBasedJsonParser.java:808)
    at com.fasterxml.jackson.databind.ObjectMapper._initForReading(ObjectMapper.java:4912)
    at com.fasterxml.jackson.databind.ObjectMapper._readMapAndClose(ObjectMapper.java:4818)
    at com.fasterxml.jackson.databind.ObjectMapper.readValue(ObjectMapper.java:3772)
    at com.fasterxml.jackson.databind.ObjectMapper.readValue(ObjectMapper.java:3740)
    at org.springframework.web.socket.sockjs.frame.Jackson2SockJsMessageCodec.decode(Jackson2SockJsMessageCodec.java:64)
    at org.springframework.web.socket.sockjs.transport.session.WebSocketServerSockJsSession.handleMessage(WebSocketServerSockJsSession.java:187)
    at org.springframework.web.socket.sockjs.transport.handler.SockJsWebSocketHandler.handleTextMessage(SockJsWebSocketHandler.java:93)
    at org.springframework.web.socket.handler.AbstractWebSocketHandler.handleMessage(AbstractWebSocketHandler.java:43)
    at org.springframework.web.socket.adapter.standard.StandardWebSocketHandlerAdapter.handleTextMessage(StandardWebSocketHandlerAdapter.java:113)
    at org.springframework.web.socket.adapter.standard.StandardWebSocketHandlerAdapter$3.onMessage(StandardWebSocketHandlerAdapter.java:84)
    at org.springframework.web.socket.adapter.standard.StandardWebSocketHandlerAdapter$3.onMessage(StandardWebSocketHandlerAdapter.java:81)
    at io.undertow.websockets.jsr.FrameHandler$7.run(FrameHandler.java:288)
    at io.undertow.websockets.jsr.ServerWebSocketContainer$1.call(ServerWebSocketContainer.java:170)
    at io.undertow.websockets.jsr.ServerWebSocketContainer$1.call(ServerWebSocketContainer.java:167)
    at io.undertow.servlet.core.ContextClassLoaderSetupAction$1.call(ContextClassLoaderSetupAction.java:43)
    at io.undertow.websockets.jsr.ServerWebSocketContainer.invokeEndpointMethod(ServerWebSocketContainer.java:618)
    at io.undertow.websockets.jsr.ServerWebSocketContainer.invokeEndpointMethod(ServerWebSocketContainer.java:608)
    at io.undertow.websockets.jsr.FrameHandler.invokeTextHandler(FrameHandler.java:268)
    at io.undertow.websockets.jsr.FrameHandler.onFullTextMessage(FrameHandler.java:319)
    at io.undertow.websockets.core.AbstractReceiveListener$2.complete(AbstractReceiveListener.java:156)
    at io.undertow.websockets.core.AbstractReceiveListener$2.complete(AbstractReceiveListener.java:152)
    at io.undertow.websockets.core.BufferedTextMessage.read(BufferedTextMessage.java:105)
    at io.undertow.websockets.core.AbstractReceiveListener.readBufferedText(AbstractReceiveListener.java:152)
    at io.undertow.websockets.core.AbstractReceiveListener.bufferFullMessage(AbstractReceiveListener.java:90)
    at io.undertow.websockets.jsr.FrameHandler.onText(FrameHandler.java:184)
    at io.undertow.websockets.core.AbstractReceiveListener.handleEvent(AbstractReceiveListener.java:44)
    at io.undertow.websockets.core.AbstractReceiveListener.handleEvent(AbstractReceiveListener.java:33)
    at org.xnio.ChannelListeners.invokeChannelListener(ChannelListeners.java:92)
    at io.undertow.server.protocol.framed.AbstractFramedChannel$FrameReadListener.handleEvent(AbstractFramedChannel.java:974)
    at io.undertow.server.protocol.framed.AbstractFramedChannel$FrameReadListener.handleEvent(AbstractFramedChannel.java:954)
    at org.xnio.ChannelListeners.invokeChannelListener(ChannelListeners.java:92)
    at org.xnio.conduits.ReadReadyHandler$ChannelListenerHandler.readReady(ReadReadyHandler.java:66)
    at org.xnio.nio.NioSocketConduit.handleReady(NioSocketConduit.java:89)
    at org.xnio.nio.WorkerThread.run(WorkerThread.java:591)

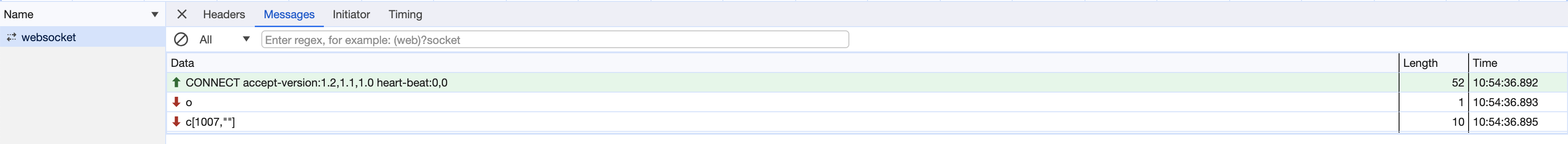

Here is devtools: Spring Spring stomp websocket parse CONNECT frame error *Edit: I'm missing Websocket config secure file without custom code:


@Configuration
@EnableWebSocketSecurity
public class WebsocketSecurityConfiguration extends AbstractSecurityWebSocketMessageBrokerConfigurer {
}

Comment From: duongxinh2003

I'd resolve this issue. Maybe the conflict caused by @EnableWebSocketSecurity and class AbstractSecurityWebSocketMessageBrokerConfigurer.
In the backend, I remove @EnableWebSocketSecurity and only use class AbstractSecurityWebSocketMessageBrokerConfigurer

@Configuration
//@EnableWebSocketSecurity
public class WebsocketSecurityConfiguration extends AbstractSecurityWebSocketMessageBrokerConfigurer {

}

Frontend side, I add some configuration like this

rxStomp.configure({
  // brokerURL: `ws://localhost:8080/websocket/tracker/4/efa0b978/websocket`,
  webSocketFactory: function () {
    // Note that the URL is different from the WebSocket URL
    return new SockJS(`http://localhost:8080/websocket/tracker?token=${hash}`);
  },
  connectHeaders: {
    Authorization: token,
  },
  heartbeatIncoming: 0,
  heartbeatOutgoing: 0,
});
