Affects: : >= 6.1.2 Related issue : #31698

Since spring-boot 3.2.1, we have noticed a significant performance drop in our application. A colleague of mine (@koisyu) have tried to figure out the cause. He had analyzed that loading the Java class every time while invoking getClassifier() from KType was the reason. I think that if cache these parts, spring-framework can use this feature with similar performance as before.

Steps to reproduce

This is a very simple Kotlin-based controller method that makes it easy to test.

@GetMapping("/message")
fun message(message1: String, message2: String, message3: String): String {
    return "$message1 $message2 $message3"
}

benchmark

  • spring-boot 3.2.0
[~/Workspaces/spring]$ hey -n 100000 -c 1 http://localhost:8080/message\?message1\=hello\&message2\=hi\&message3\=thanks

Summary:
  Total:    13.5588 secs
  Slowest:  0.0098 secs
  Fastest:  0.0001 secs
  Average:  0.0001 secs
  Requests/sec: 7375.3008
  • spring-boot 3.2.1
[~/Workspaces/spring]$ hey -n 100000 -c 1 http://localhost:8080/message\?message1\=hello\&message2\=hi\&message3\=thanks

Summary:
  Total:    14.9566 secs
  Slowest:  0.1087 secs
  Fastest:  0.0001 secs
  Average:  0.0001 secs
  Requests/sec: 6686.0123

async-profiler

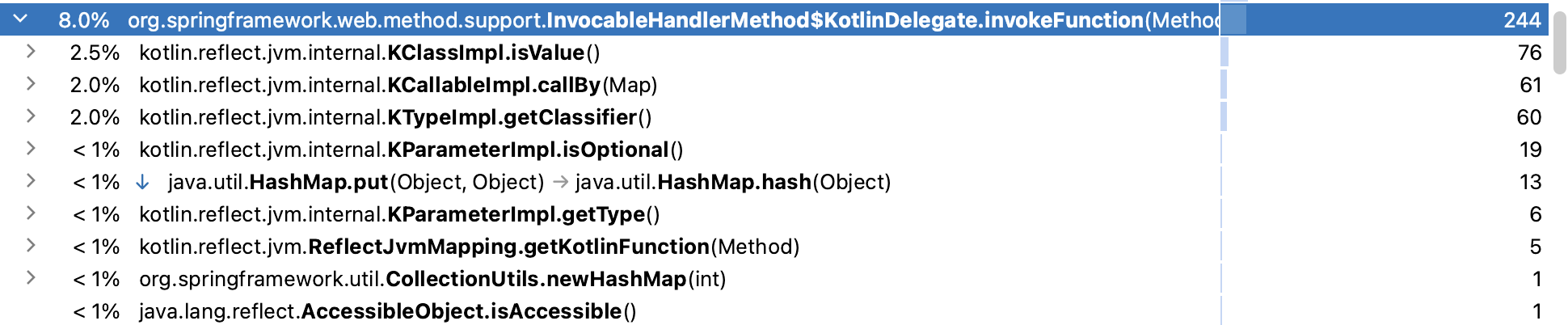

  • spring-boot 3.2.0 Spring Performance degradation due to Kotlin value class checks

  • spring-boot 3.2.1 Spring Performance degradation due to Kotlin value class checks

Comment From: sdeleuze

The analysis of the flame graphs confirmed this issue, and I have been able to check on my side that the fix I just pushed bring back the performances to the pre-regression level. Feel free to double check with 6.1.5-SNAPSHOT (once the CI build is finished) and provide a feedback here.

Comment From: koo-taejin

I have checked a lot of improvements. However, the resource usage of the `getClassifier()' method remains the same.

Because it is registered as AOP, it has a performance impact because it is executed on every call to the suspend method registered with the bean.

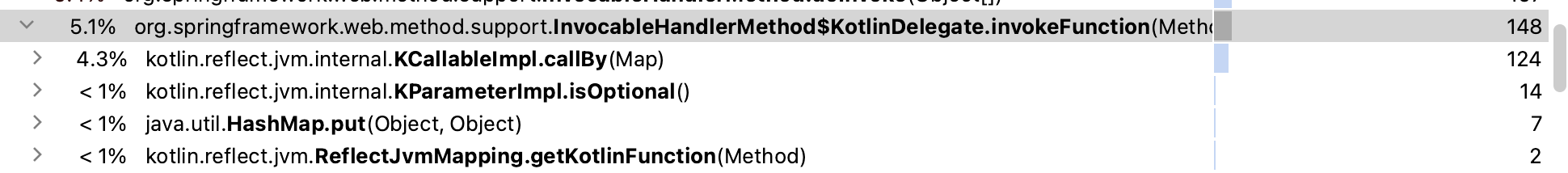

  • spring-boot 3.2.0 Spring Performance degradation due to Kotlin value class checks

  • spring-boot 3.2.1 with 6.1.5-SNAPSHOT Spring Performance degradation due to Kotlin value class checks

Comment From: sdeleuze

For more performance optimizations, #21546 will likely be needed so feel free to vote for this issue that I am actively reviewing.

Comment From: koo-taejin

I left it in because I thought it was a change since that issue, rather than an optimization. This is a very resource intensive part of especially where coroutines are heavily used. I hope you will consider it someday.

Thank you always for creating a framework that is easy to use. πŸ‘

Comment From: sdeleuze

I have refined the optimizations in order to leverage KTypesJvm#getJvmErasure instead since it seems faster and also refactored a bit the code to be cleaner and more efficient.

@koo-taejin @efemoney Please check 6.1.5-SNAPSHOT against your user cases once this build is finished.

Notice I will likely do shortly another pass of optimization for Coroutines.

Comment From: koo-taejin

Unfortunately, I don't think the situation has changed much. It would be accurate to put it into production and test it, but I apologize for not being able to do this.

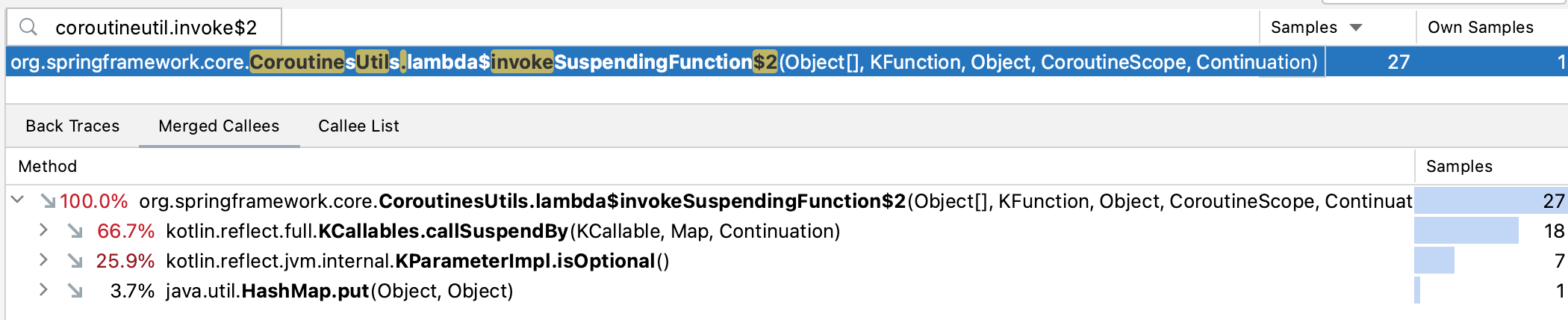

Method of getClassifier()has been replaced by method of getJvmErasure(). I had checked that getClassifier() is called from getJvmErasure(). (in org.springframework.core.CoroutinesUtils.lambda$invokeSuspendingFunction$2(Object[], KFunction, Object, CoroutineScope, Continuation)) - spring-boot 3.2.0 Spring Performance degradation due to Kotlin value class checks

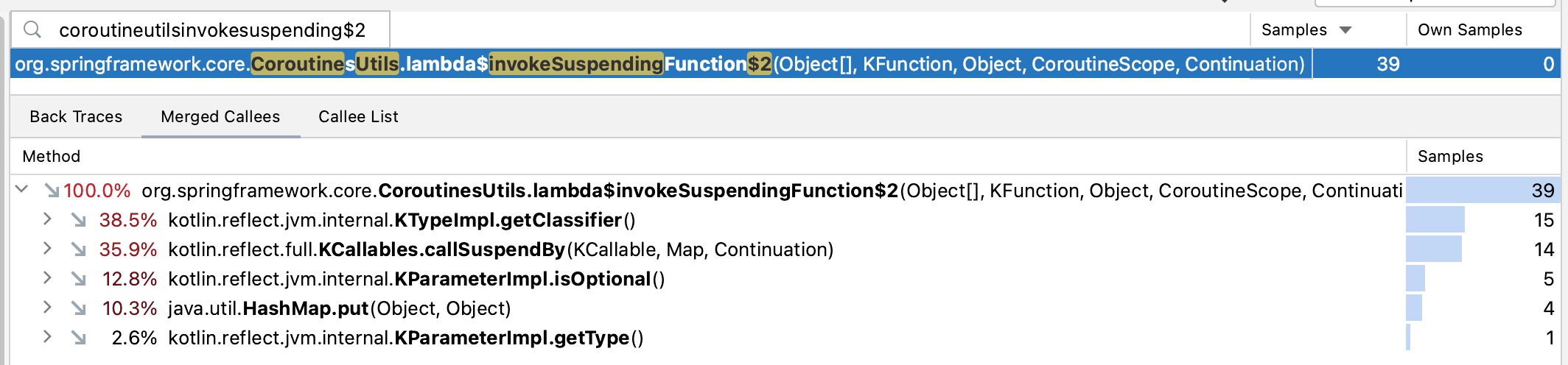

  • spring-boot 3.2.1 with 6.1.5-SNAPSHOT-p1 Spring Performance degradation due to Kotlin value class checks

  • spring-boot 3.2.1 with 6.1.5-SNAPSHOT-p2 Spring Performance degradation due to Kotlin value class checks

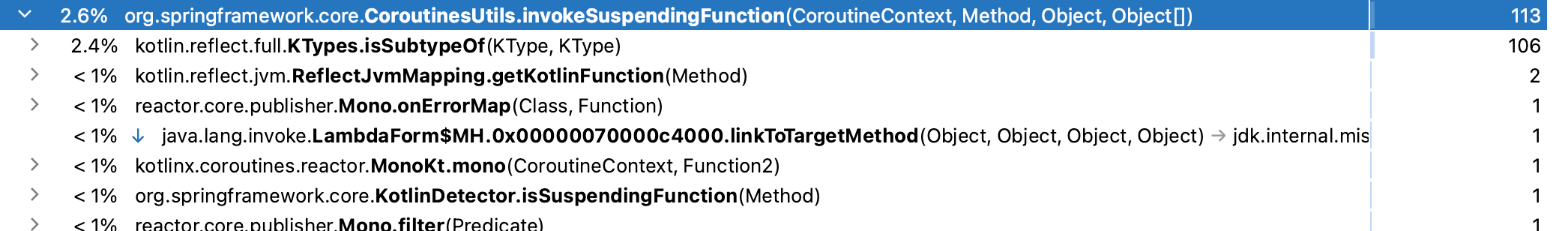

Also, in the latest version, the isSubTypeOf() method uses resources. (in org.springframework.core.CoroutinesUtils#invokeSuspendingFunction(kotlin.coroutines.CoroutineContext, java.lang.reflect.Method, java.lang.Object, java.lang.Object...)) - spring-boot 3.2.1 with 6.1.5-SNAPSHOT-p1 Spring Performance degradation due to Kotlin value class checks

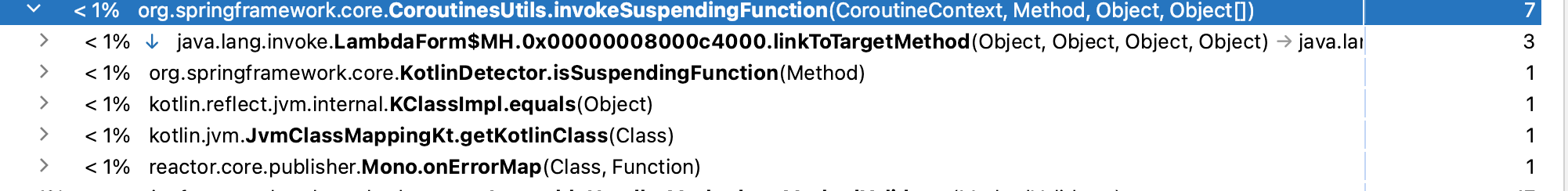

  • spring-boot 3.2.1 with 6.1.5-SNAPSHOT-p2 Spring Performance degradation due to Kotlin value class checks

This is called for every suspend function, so more use Coroutines, the bigger the impact seems to be.

If there is anything I can do to help, please let me know.

Thank you so much. πŸ™‡

Comment From: sdeleuze

I had another look but I can't really optimize much more without using a cache. I discussed with the Kolin team the possibility to use KType#javaType in order to avoid retrieving the classifier, but that does not work as the unboxed type is returned.

Concerning getJvmErasure you are right, so I have restored getClassifier usage, and have removed 1 or the 3 isSubTypeOf for the most common code path.

I would suggest that we don't go further for 6.1.5 as with #32390 optimizations should limit the performance regression we see with value type checks, or even provide better performances (this is what I see in my benchmarks). If that's not enough, I guess we will need to explore if a cache is worth to introduce, but that if we go that path, that will probably have to wait for 6.2 as some refactoring will be needed to have a single cache for the various use cases.

Comment From: koo-taejin

Thank you for your thoughtful consideration. I totally agree with you :) πŸ‘
