Affects: 6.1.8
While upgrading a project from spring boot 3.1.12 to spring boot 3.2.6 I've encountered issues with my @Value injection path to system file on my Windows machine being rebuilt incorrectly by StringUtils.cleanPath(...). I believe this concerns the way Spring handles \ characters when loading maven properties in application.yml. I've created a demo I'll attach showcasing the issue.
My file is loaded like this:
@Value("${path.to.a.file}")
private RSAPublicKey resource;
where the property in application.yml looks like this:
path.to.a.file: file:@path.to.a.key.file@
the maven property referenced is:
<properties>
<main.basedir>${project.basedir}${file.separator}..</main.basedir>
<path.to.a.key.file>${main.basedir}${file.separator}lib${file.separator}someFile</path.to.a.key.file>
</properties>
(the original project is a multi-module project)
From my testing this is related to the change to https://github.com/spring-projects/spring-framework/blob/v6.1.8/spring-core/src/main/java/org/springframework/util/ResourceUtils.java#L412 in previous major version this would build directly without any changes to location: https://github.com/spring-projects/spring-framework/blob/v6.0.21/spring-core/src/main/java/org/springframework/util/ResourceUtils.java#L419

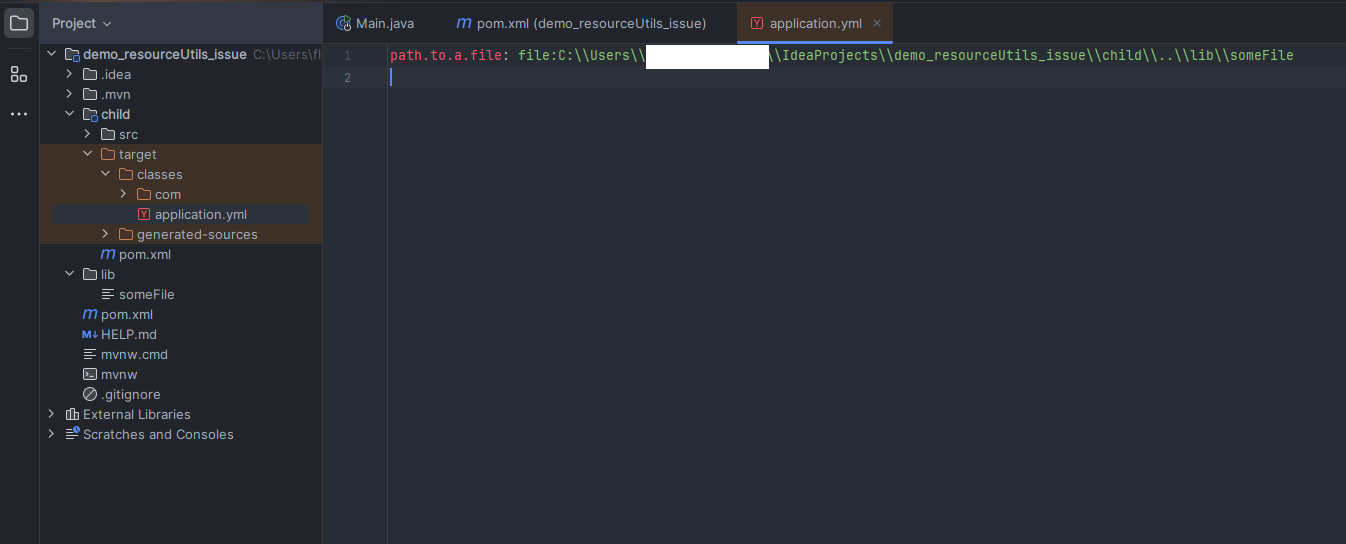

I don't think this is an issue with StringUtils.cleanPath(...), but with the fact that Spring will inject this maven property with double \\, rather than just one \. Example images from the demo project I have attached, how application.yml looks like in target folder:

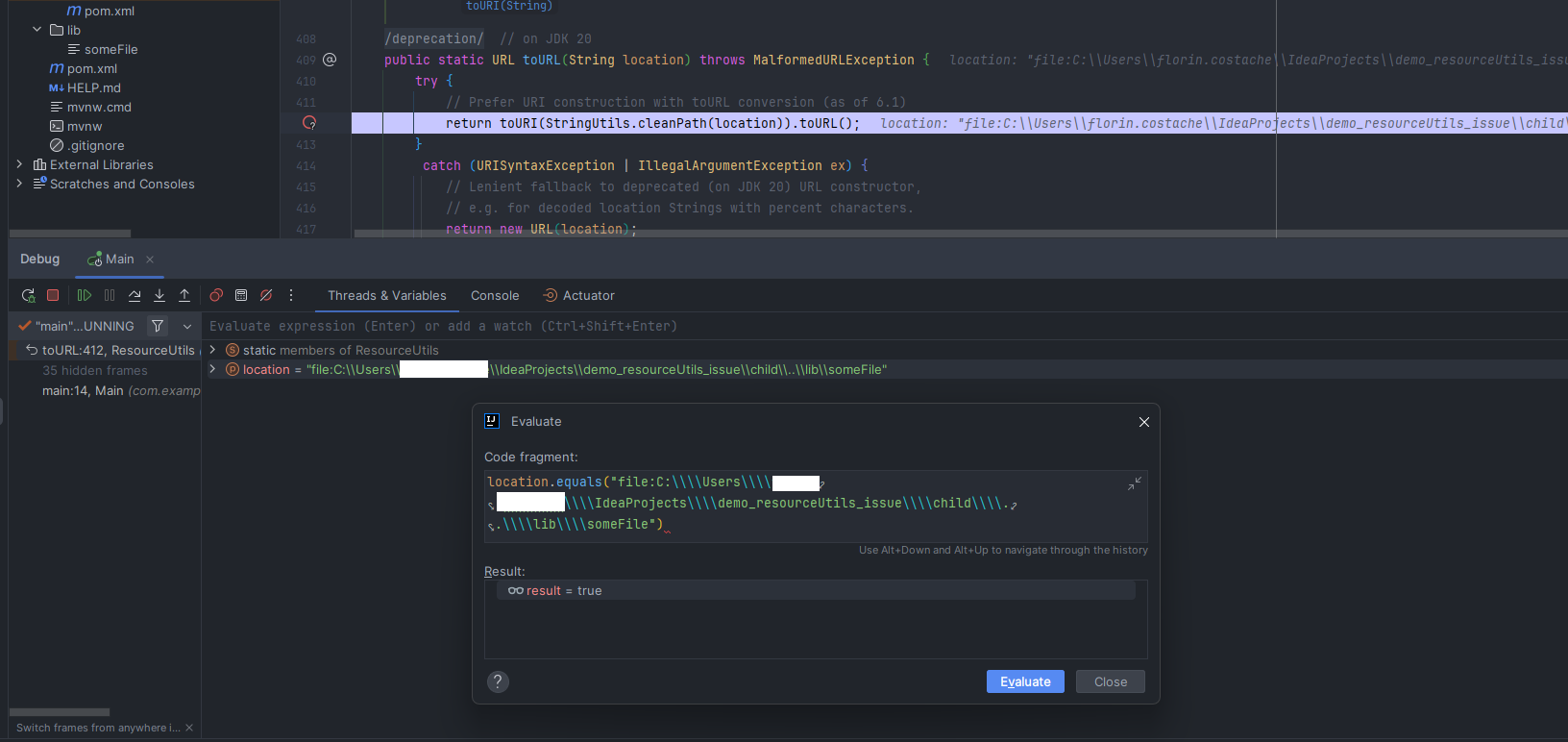

And debugging, what the String is equal to since I was confused by the IntelliJ output:

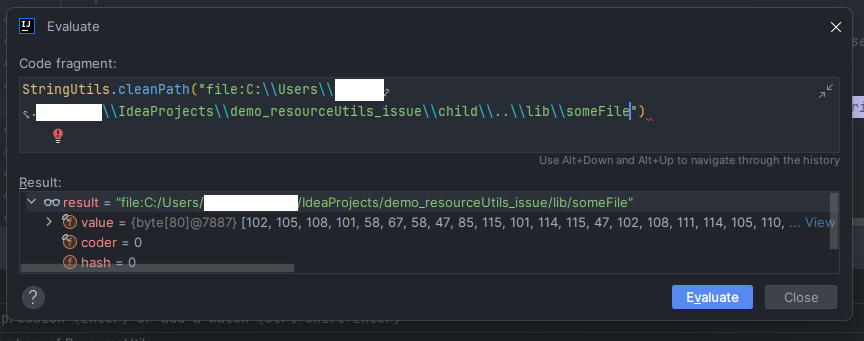

how cleanPath outputs the wrong path when given input with double \:

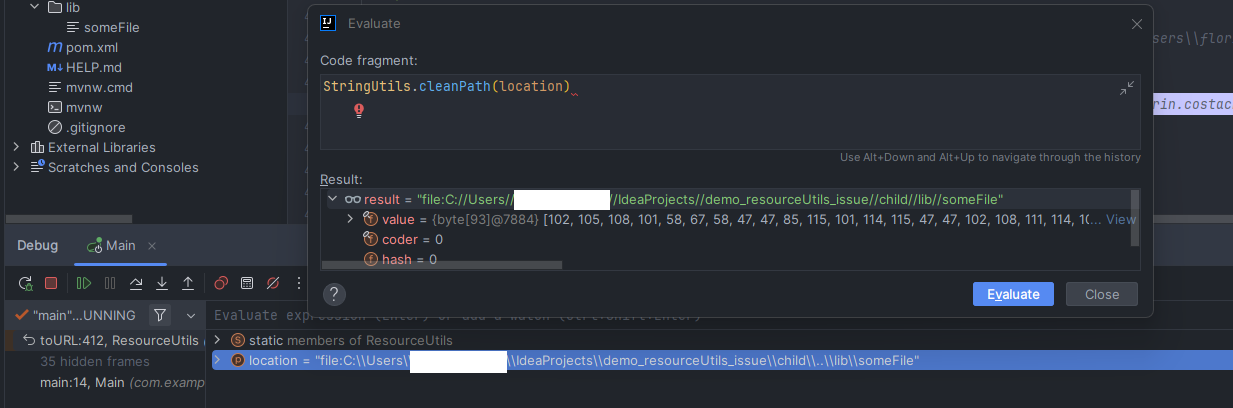

after removing one escaped \, cleanPath works as expected:

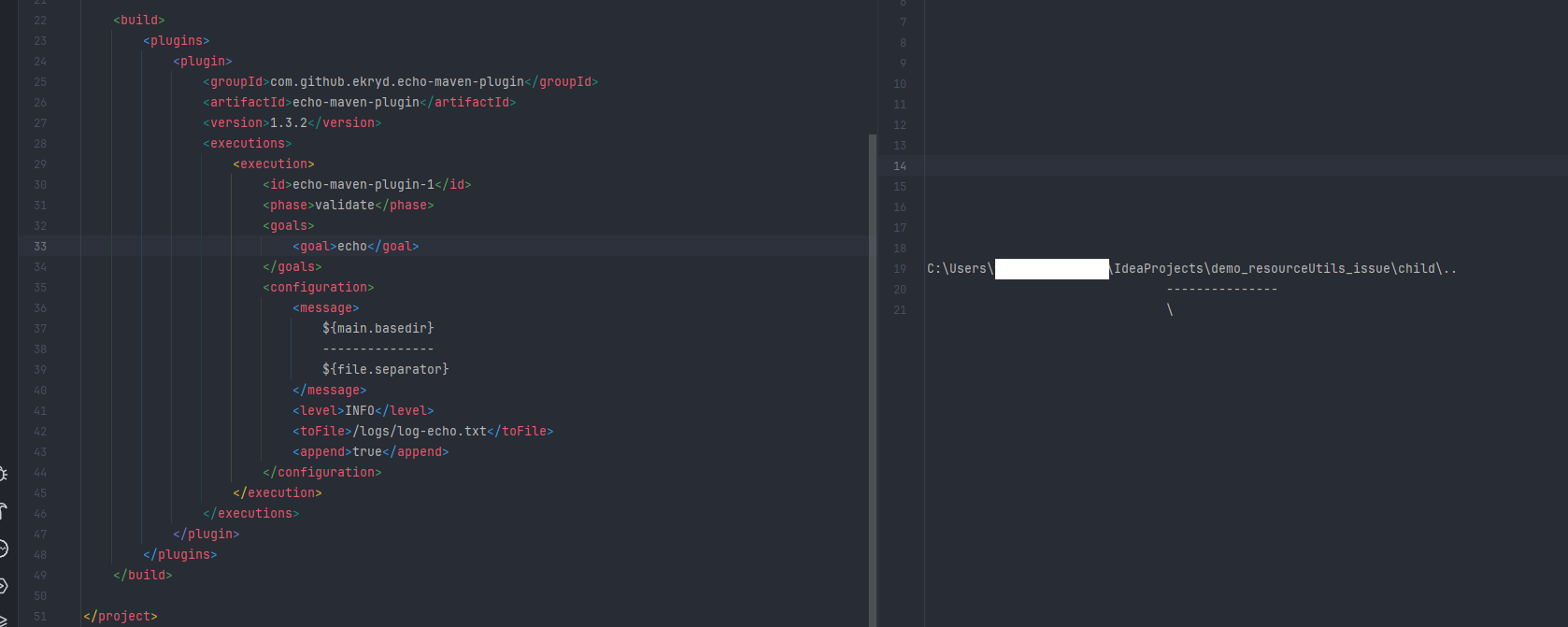

From what I can tell maven won't use double backslashes so these are added by Spring I believe (output of maven command to check how properties look like):
Here is the stack trace:
Error starting ApplicationContext. To display the condition evaluation report re-run your application with 'debug' enabled. 2024-06-05T18:05:06.429+03:00 ERROR 28320 --- [ main] o.s.boot.SpringApplication : Application run failed
org.springframework.beans.factory.UnsatisfiedDependencyException: Error creating bean with name 'com.example.Main$ExampleComponent': Unsatisfied dependency expressed through field 'resource': Failed to convert value of type 'java.lang.String' to required type 'java.security.interfaces.RSAPublicKey'; Failed to convert from type [java.lang.String] to type [@org.springframework.beans.factory.annotation.Value java.security.interfaces.RSAPublicKey] for value [file:C:\Users\...\IdeaProjects\demo_resourceUtils_issue\child\..\lib\someFile] at org.springframework.beans.factory.annotation.AutowiredAnnotationBeanPostProcessor$AutowiredFieldElement.resolveFieldValue(AutowiredAnnotationBeanPostProcessor.java:787) ~[spring-beans-6.1.8.jar:6.1.8] at org.springframework.beans.factory.annotation.AutowiredAnnotationBeanPostProcessor$AutowiredFieldElement.inject(AutowiredAnnotationBeanPostProcessor.java:767) ~[spring-beans-6.1.8.jar:6.1.8] at org.springframework.beans.factory.annotation.InjectionMetadata.inject(InjectionMetadata.java:145) ~[spring-beans-6.1.8.jar:6.1.8] at org.springframework.beans.factory.annotation.AutowiredAnnotationBeanPostProcessor.postProcessProperties(AutowiredAnnotationBeanPostProcessor.java:508) ~[spring-beans-6.1.8.jar:6.1.8] at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.populateBean(AbstractAutowireCapableBeanFactory.java:1421) ~[spring-beans-6.1.8.jar:6.1.8] at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.doCreateBean(AbstractAutowireCapableBeanFactory.java:599) ~[spring-beans-6.1.8.jar:6.1.8] at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBean(AbstractAutowireCapableBeanFactory.java:522) ~[spring-beans-6.1.8.jar:6.1.8] at org.springframework.beans.factory.support.AbstractBeanFactory.lambda$doGetBean$0(AbstractBeanFactory.java:337) ~[spring-beans-6.1.8.jar:6.1.8] at org.springframework.beans.factory.support.DefaultSingletonBeanRegistry.getSingleton(DefaultSingletonBeanRegistry.java:234) ~[spring-beans-6.1.8.jar:6.1.8] at org.springframework.beans.factory.support.AbstractBeanFactory.doGetBean(AbstractBeanFactory.java:335) ~[spring-beans-6.1.8.jar:6.1.8] at org.springframework.beans.factory.support.AbstractBeanFactory.getBean(AbstractBeanFactory.java:200) ~[spring-beans-6.1.8.jar:6.1.8] at org.springframework.beans.factory.support.DefaultListableBeanFactory.preInstantiateSingletons(DefaultListableBeanFactory.java:975) ~[spring-beans-6.1.8.jar:6.1.8] at org.springframework.context.support.AbstractApplicationContext.finishBeanFactoryInitialization(AbstractApplicationContext.java:962) ~[spring-context-6.1.8.jar:6.1.8] at org.springframework.context.support.AbstractApplicationContext.refresh(AbstractApplicationContext.java:624) ~[spring-context-6.1.8.jar:6.1.8] at org.springframework.boot.web.servlet.context.ServletWebServerApplicationContext.refresh(ServletWebServerApplicationContext.java:146) ~[spring-boot-3.2.6.jar:3.2.6] at org.springframework.boot.SpringApplication.refresh(SpringApplication.java:754) ~[spring-boot-3.2.6.jar:3.2.6] at org.springframework.boot.SpringApplication.refreshContext(SpringApplication.java:456) ~[spring-boot-3.2.6.jar:3.2.6] at org.springframework.boot.SpringApplication.run(SpringApplication.java:335) ~[spring-boot-3.2.6.jar:3.2.6] at org.springframework.boot.builder.SpringApplicationBuilder.run(SpringApplicationBuilder.java:149) ~[spring-boot-3.2.6.jar:3.2.6] at com.example.Main.main(Main.java:14) ~[classes/:na] Caused by: org.springframework.beans.TypeMismatchException: Failed to convert value of type 'java.lang.String' to required type 'java.security.interfaces.RSAPublicKey'; Failed to convert from type [java.lang.String] to type [@org.springframework.beans.factory.annotation.Value java.security.interfaces.RSAPublicKey] for value [file:C:\Users\...\IdeaProjects\demo_resourceUtils_issue\child\..\lib\someFile] at org.springframework.beans.TypeConverterSupport.convertIfNecessary(TypeConverterSupport.java:87) ~[spring-beans-6.1.8.jar:6.1.8] at org.springframework.beans.TypeConverterSupport.convertIfNecessary(TypeConverterSupport.java:71) ~[spring-beans-6.1.8.jar:6.1.8] at org.springframework.beans.factory.support.DefaultListableBeanFactory.doResolveDependency(DefaultListableBeanFactory.java:1381) ~[spring-beans-6.1.8.jar:6.1.8] at org.springframework.beans.factory.support.DefaultListableBeanFactory.resolveDependency(DefaultListableBeanFactory.java:1353) ~[spring-beans-6.1.8.jar:6.1.8] at org.springframework.beans.factory.annotation.AutowiredAnnotationBeanPostProcessor$AutowiredFieldElement.resolveFieldValue(AutowiredAnnotationBeanPostProcessor.java:784) ~[spring-beans-6.1.8.jar:6.1.8] ... 19 common frames omitted Caused by: org.springframework.core.convert.ConversionFailedException: Failed to convert from type [java.lang.String] to type [@org.springframework.beans.factory.annotation.Value java.security.interfaces.RSAPublicKey] for value [file:C:\Users\...\IdeaProjects\demo_resourceUtils_issue\child\..\lib\someFile] at org.springframework.core.convert.support.ConversionUtils.invokeConverter(ConversionUtils.java:47) ~[spring-core-6.1.8.jar:6.1.8] at org.springframework.core.convert.support.GenericConversionService.convert(GenericConversionService.java:182) ~[spring-core-6.1.8.jar:6.1.8] at org.springframework.beans.TypeConverterDelegate.convertIfNecessary(TypeConverterDelegate.java:131) ~[spring-beans-6.1.8.jar:6.1.8] at org.springframework.beans.TypeConverterSupport.convertIfNecessary(TypeConverterSupport.java:80) ~[spring-beans-6.1.8.jar:6.1.8] ... 23 common frames omitted Caused by: java.io.UncheckedIOException: java.io.FileNotFoundException: C:\Users...\IdeaProjects\demo_resourceUtils_issue\child\lib\someFile (The system cannot find the path specified) at org.springframework.security.config.crypto.RsaKeyConversionServicePostProcessor$ResourceKeyConverterAdapter.toInputStream(RsaKeyConversionServicePostProcessor.java:158) ~[spring-security-config-6.2.4.jar:6.2.4] at org.springframework.security.config.crypto.RsaKeyConversionServicePostProcessor$ResourceKeyConverterAdapter.lambda$pemInputStreamConverter$0(RsaKeyConversionServicePostProcessor.java:146) ~[spring-security-config-6.2.4.jar:6.2.4] at org.springframework.core.convert.converter.Converter.lambda$andThen$0(Converter.java:62) ~[spring-core-6.1.8.jar:6.1.8] at org.springframework.security.config.crypto.RsaKeyConversionServicePostProcessor$ResourceKeyConverterAdapter.convert(RsaKeyConversionServicePostProcessor.java:132) ~[spring-security-config-6.2.4.jar:6.2.4] at org.springframework.security.config.crypto.RsaKeyConversionServicePostProcessor$ResourceKeyConverterAdapter.convert(RsaKeyConversionServicePostProcessor.java:113) ~[spring-security-config-6.2.4.jar:6.2.4] at org.springframework.core.convert.support.GenericConversionService$ConverterAdapter.convert(GenericConversionService.java:358) ~[spring-core-6.1.8.jar:6.1.8] at org.springframework.core.convert.support.ConversionUtils.invokeConverter(ConversionUtils.java:41) ~[spring-core-6.1.8.jar:6.1.8] ... 26 common frames omitted Caused by: java.io.FileNotFoundException: C:\Users...\IdeaProjects\demo_resourceUtils_issue\child\lib\someFile (The system cannot find the path specified) at java.base/java.io.FileInputStream.open0(Native Method) ~[na:na] at java.base/java.io.FileInputStream.open(FileInputStream.java:216) ~[na:na] at java.base/java.io.FileInputStream.
(FileInputStream.java:157) ~[na:na] at java.base/java.io.FileInputStream. (FileInputStream.java:111) ~[na:na] at java.base/sun.net.www.protocol.file.FileURLConnection.connect(FileURLConnection.java:86) ~[na:na] at java.base/sun.net.www.protocol.file.FileURLConnection.getInputStream(FileURLConnection.java:189) ~[na:na] at org.springframework.core.io.UrlResource.getInputStream(UrlResource.java:233) ~[spring-core-6.1.8.jar:6.1.8] at org.springframework.security.config.crypto.RsaKeyConversionServicePostProcessor$ResourceKeyConverterAdapter.toInputStream(RsaKeyConversionServicePostProcessor.java:155) ~[spring-security-config-6.2.4.jar:6.2.4] ... 32 common frames omitted
This can easily be fixed by editing the string with SpEL: @Value("#{'${path.to.a.file}'.replace('\\\\', '\\')}") or just telling maven to add the files to my classpath, but I am opening this in case this is an issue worth considering, I apologize otherwise.
Demo project: demo_resourceUtils_issue.zip
Comment From: sdeleuze
Hi, I am not on Windows but what likely happens is that:
- Spring Boot parent POM enables resource filtering on src/main/resources by default
- Maven resource plugin automatically escape Windows path by default
- On Windows, both \\ and \ are valid path separators (see this related SO response)
- The change we did here now turns \\ path separator (valid) to // (invalid).
Even if this double backslash comes from a (kind of surprising to me) Maven feature enabled by default, the fact that \\ can be used as a separator on Windows, combined with the fact this is a popular arrangement (enabled by default with Boot parent POM) and that this is a change of behavior on Spring side makes me think that maybe we should handle this use case and convert \\ to / like we convert \ to /.
Comment From: sdeleuze
Based on https://en.wikipedia.org/wiki/File_URI_scheme, it should not be needed to support the leading \\ use case. Since there was some performance regression visible in the JMH benchmark, I have implemented an optimization for the case where there is no \ in the path.
@floringolintchi Please check your repro is fine on Windows with Spring Framework 6.1.9-SNAPSHOT since I am not able to test on Windows.
Comment From: floringolintchi
@sdeleuze Tried it in test project and it works fine now, thank you for the fix. 🍻
Comment From: stevo-devo
This change has broken the ability to use a network path as a URI in windows. eg. if we want to access a path such as \\networklocation\path we would specify \\\\networklocation/path and this previously worked.
Now it is always failing due to the path being "cleaned" as /networklocation/path due to this change.
Comment From: sbrannen
@stevo-devo, since this issue is closed (with the changes released in 6.1.9), can you please create a new issue to report the regression you are experiencing?
