@Override
public String getToken() {
    HttpServletRequest request = httpRequest.getIfAvailable();
    if (request == null) {
        throw new IllegalStateException("No HttpServletRequest available");
    }
    String token = request.getHeader(ConfigClientProperties.TOKEN_HEADER);
    if (!StringUtils.hasLength(token)) {
        throw new IllegalArgumentException(
                "Missing required header in HttpServletRequest: "
                        + ConfigClientProperties.TOKEN_HEADER);
    }
    return token;
}

The above method is from the HttpRequestConfigTokenProvider class.

We use a Spring Config Server that connects both to Vault and a Git Repository. So, it's bootstrap file has the entry: spring.profiles.active=git, vault. We have a Spring Boot app that connects to this Config Server. I am using the property spring.cloud.config.headers.X-Config-Token=vault token in the bootstrap file of the Spring Boot app and the application starts up fine. It is to be noted that during start-up, the EnvironmentController class is called as also the HttpRequestConfigTokenProvider .getToken() method and each time the token gets sent from the application to the Config Server as can be noted from the attached screenshot.

I use a ReloadableResourceBundleMessageSource to load a required properties file from the Git Repository.. When I call messageSource.getMessage(code, args, locale), the following mapping from the ResourceController class is invoked in the Config Server.

@RequestMapping("/{name}/{profile}/{label}/**")
public String retrieve(@PathVariable String name, @PathVariable String profile,
        @PathVariable String label, ServletWebRequest request,
        @RequestParam(defaultValue = "true") boolean resolvePlaceholders)
        throws IOException {
    String path = getFilePath(request, name, profile, label);
    return retrieve(request, name, profile, label, path, resolvePlaceholders);
}

Subsequently, the same HttpRequestConfigTokenProvider.getToken() method gets invoked but, now, it returns a null token.

The messages from the git repository get loaded properly under two scenarios: 1. I remove vault and only use git as an active profile in the Config Server bootstrap file (this is not an option. I just did for testing.) OR 2. I specify the Vault Token in the Config Server bootstrap file instead of passing it from the Spring Boot application. (this is not an option either. I did it just for testing.)

However, I am unable to load the messages similarly only if I pass the vault token from the Spring Boot application that already has the header X-Config-Token set in both the bootstrap and the application.properties files (added here for testing). Before calling the getMessage(..) on the messageSource, I do a env.get(spring.cloud.config.headers.X-Config-Token) and the token value gets printed. However, the HttpRequestConfigTokenProvider.getToken() method returns null instead of the vault token header value and thus, the properties do not get loaded and the call fails with the attached error trace.

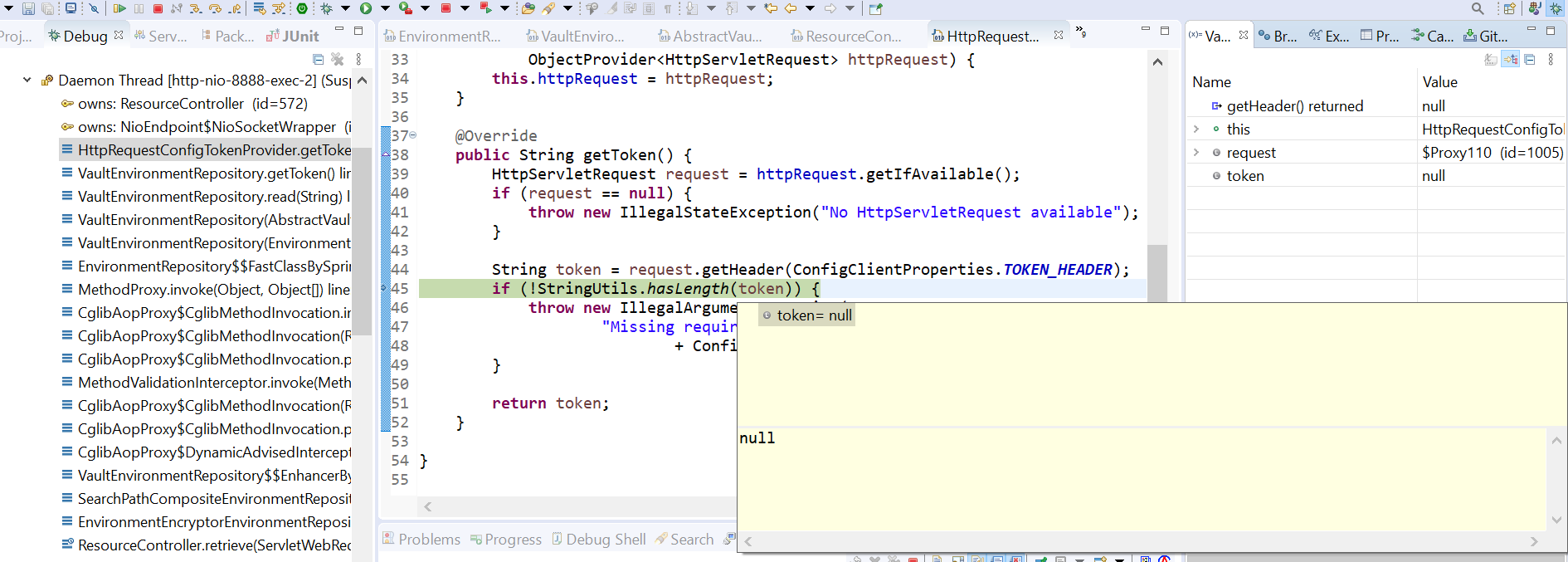

ReloadableRBMSCallToConfigServer_VaultTokenIsNull

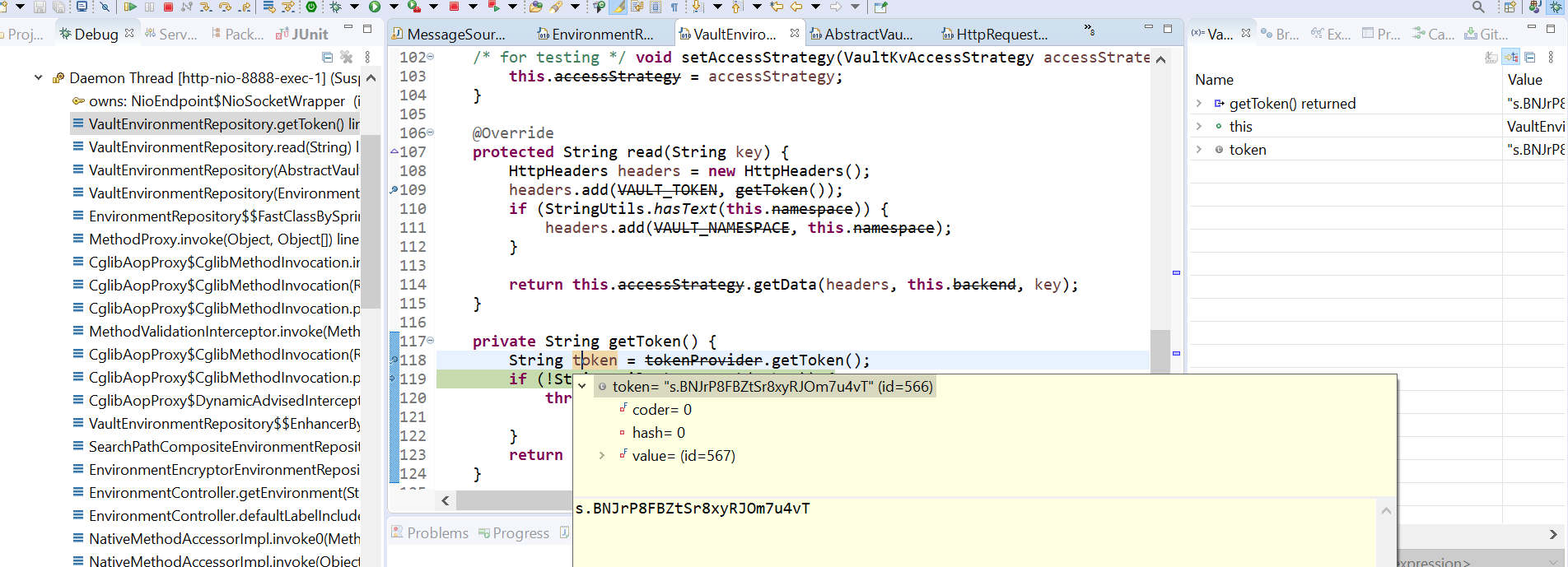

VaultTokenGetsPassedAtStartupWithSameHeaderX-Config-Token

ErrorTraceInTheConfigServerApplication.txt

ErrorTraceInTheSpringBootApplication.txt

Comment From: philwebb

Spring Cloud Config is managed in a different GitHub repo. I've copied your issue to https://github.com/spring-cloud/spring-cloud-config/issues/1688

Comment From: Ayesha-Hyath

Okay, thank you.
