SpringBoot server.servlet.session.timeout not work

I set server.servlet.session.timeout=PT60S but not work; As the document default value is 30 minutes, but actually I test it on redis is 30 days

Comment From: wilkinsona

Thanks for the report. Can you please describe what you did that told you that you configuration did not work? Also, how did you "test it on Redis" to determine that the value was 30 days?

Comment From: gingili

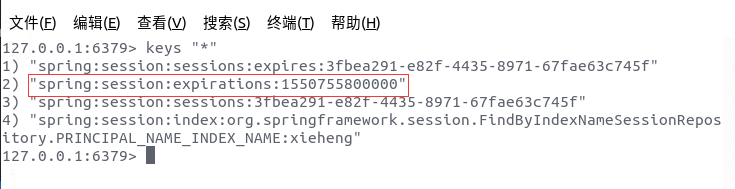

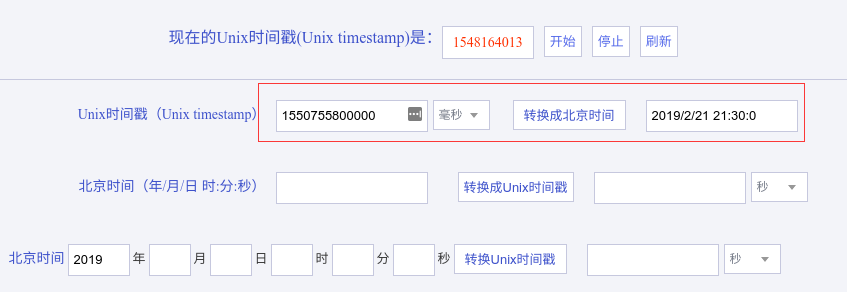

I have login module using spring-security and spring-session-data-redis. In springboot 1.5.x, I use annotation @EnableRedisHttpSession(maxInactiveIntervalInSeconds = 43200) to set timeout 12 hours, I am very sure it's worked on production environment. When I upgrade to springboot 2.x.x, following document set server.servlet.session.timeout=PT12H on application.properties and remove maxInactiveIntervalInSeconds(I am not sure it's necessary). one day my engineer and tester told me timeout maybe not work(because 12 hours is too long), so I set PT60S to test it. 1. flushall on redis-cli 2. login 3. check spring:session:expirations because my time zone is GTM+8, so 2019/2/21 21:30:0 - 22 Jan 2019 13:29:40 - 8:00:00 = 30 days

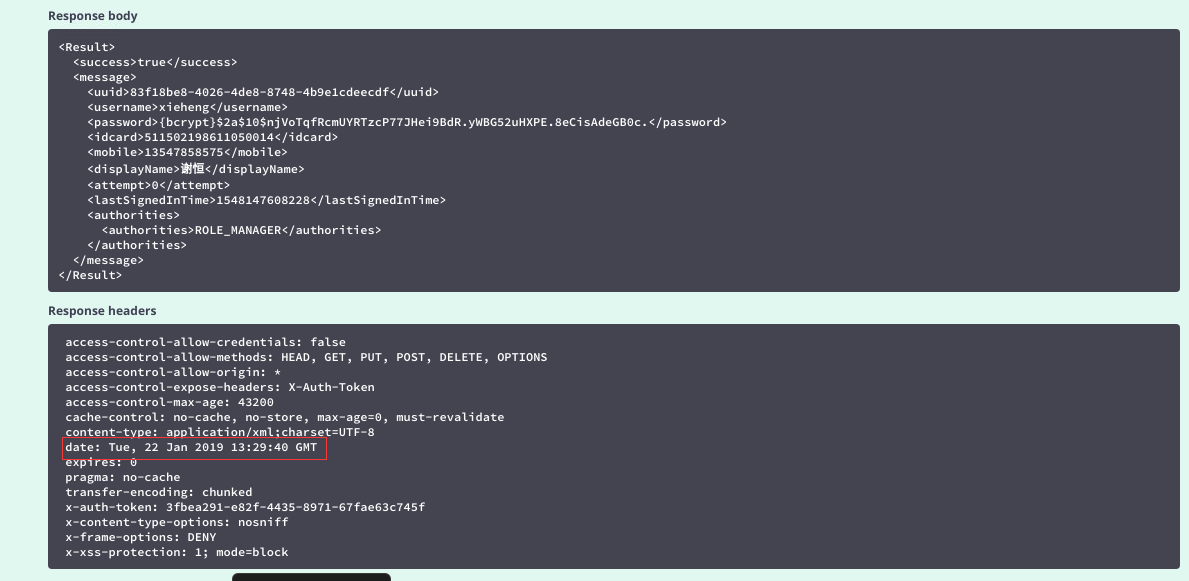

swagger redis time

Comment From: wilkinsona

By using @EnableRedisHttpSession you are telling Spring Boot that you want to take complete control over the configuration of Redis-based HTTP sessions. As a result, its auto-configuration backs off and server.servlet.session.timeout has no effect. If you want to use server.servlet.session.timeout then you should remove @EnableRedisHttpSession. Alternatively, if you want to use @EnableRedisHttpSession then you should use the maxInactiveIntervalInSeconds attribute to configure the session timeout.

Comment From: olayinkasf

This is not transparent though. At least I haven't found this documented anywhere. It seems rather strange that this property is not configurable when a managed session is used.

Comment From: wilkinsona

@olayinkasf This is an example of Spring Boot auto-configuration backing away when you start configuring things yourself.

What do you mean by "a managed session"?

Comment From: olayinkasf

What I meant is that it's not transparent that the value set for server.servlet.session.timeout is ignored when using one of the provided session repository e.g. via EnableJdbcHttpSession or EnableRedisHttpSession and that one must use the annotation property maxInactiveIntervalInSeconds.

Comment From: wilkinsona

What could we do to make it clearer? It's standard Spring Boot behaviour for things that are auto-configured to switch off when you start configuring things yourself. The documentation mentions running with --debug to learn about the auto-configuration that is being applied and why. If you happened to try that, did it help at all?

Comment From: vpavic

@wilkinsona, as I've seen similar confusion in Spring Session's issue tracker and on Stack Overflow already, I do believe Spring Boot's reference manual could be a bit more explicit about the auto-config vs native configuration support.

For instance, the section that covers Spring HATEOAS auto-config clearly states that:

The auto-configuration replaces the need to use @EnableHypermediaSupport ...

As well as:

You can take control of Spring HATEOAS’s configuration by using @EnableHypermediaSupport.

At the same time the section that covers Spring Session auto-config has not mention of @Enable*HttpSession/@Enable*WebSession. A sentence or two mentioning these in a manner similar to HATEOAS section would be very helpful in avoiding the kind of confusion we're seeing here.

Comment From: philwebb

I've opened https://github.com/spring-projects/spring-boot/issues/23151 for the documentation improvement.

Comment From: wilkinsona

Good suggestions. Thanks, @vpavic.

Comment From: daliborfilus

Hi, I don't want to revive this issue again, but I had this problem for multiple versions of Spring Boot 2.3.x (currently on 2.3.4).

I have this in my application.properties:

server.servlet.session.cookie.http-only=true
server.servlet.session.cookie.secure=true
server.servlet.session.cookie.max-age=-1
server.servlet.session.cookie.name=SESSION
server.servlet.session.timeout=14400s
#server.session.timeout=14400s # tried to uncomment this, just to be sure, but nothing changed
spring.session.store-type=redis
spring.data.redis.repositories.enabled = false
spring.redis.host=redis
spring.redis.port=6379

The app completely ignores these properties and all redis sessions are created with TTL around 1800 seconds.

I don't use EnableRedisHttpSession or EnableJdbcHttpSession or anything session related.

Only thing I use are these:

@SpringBootApplication(scanBasePackages = ["app"])
@EnableHypermediaSupport(type = [EnableHypermediaSupport.HypermediaType.HAL])
@EnableScheduling
@EnableWebSecurity
class BackendApplication

@Configuration
class SecurityConfig : WebSecurityConfigurerAdapter() {
    public override fun configure(http: HttpSecurity) {
        http.csrf().disable()
            .cors()
            .and()
            .exceptionHandling()
            .authenticationEntryPoint(restAuthenticationEntryPoint)
            .and()
            .sessionManagement().sessionCreationPolicy(SessionCreationPolicy.IF_REQUIRED).and() //                .httpBasic().realmName("AD").and()
            .httpBasic().disable() // we use our own implementation for HttpBasic
            .formLogin().loginProcessingUrl("/login").and()
            .logout().logoutUrl("/logout").logoutSuccessHandler(HttpStatusReturningLogoutSuccessHandler(HttpStatus.NO_CONTENT)).permitAll().and()
            .addFilter(CustomBasicAuthenticationFilter(authenticationManager(), userService))
            .addFilterAt(RestAuthenticationFilter(authenticationManager(), userService), UsernamePasswordAuthenticationFilter::class.java)
            .authorizeRequests()
            .antMatchers("/login").permitAll()
            .antMatchers("/actuator/info").permitAll()
            .antMatchers("/actuator/health").permitAll()
            .antMatchers("/actuator/**").hasRole("ADMIN")
            .anyRequest().authenticated()
    }
}

Only if I add @EnableRedisHttpSession(maxInactiveIntervalInSeconds = 14400), then and only then the records in redis have correct TTL.

I couldn't find anything relevant in --debug output (but I don't know what I should be looking for).

What could be the problem in my case? Could it be the WebSecurityConfigurerAdapter stuff? EDIT: I've tried removing all @EnableXYZ annotations from the code, but no change, TTL is still around 1800s.

Comment From: wilkinsona

@daliborfilus Can you please open a new issue with a small sample that reproduces the problem? In the absence of spring.session.timeout being set, server.servlet.session.timeout should be used to auto-configure Spring Session's session timeout. Your WebSecurityConfigurerAdapter shouldn't have any effect on that.

Comment From: daliborfilus

I will. Thanks

Comment From: daliborfilus

So I was creating the example app with smallest possible reproducible case and I've nailed the problem down to this line in my build.gradle config:

    configurations {
        compile.exclude group: 'jakarta.annotation', module: 'jakarta.annotation-api' // <<- THIS ONE
    }

If I remove it (or comment it out), the server.servlet.session.timeout=14400s line in application.properties works.(Tested using redis-cli monitor multiple times).

I remember excluding this group when I played with java jigsaw modules and it something was complaining about the same interfaces being implemented in more than one package or something like that.

Should I still create a new issue? I still don't understand why excluding jakarta.annotation group would result in such weird behavior. The application works with this for over a year and the only thing that doesn't work correctly is this redis session timeout thing...

Comment From: wilkinsona

@daliborfilus That's very strange. I don't understand why that dependency would make a difference but I would like to. Please do create a new issue with a sample and we'll take a look.
