Hellow Team, @yossigo , thanks for releasing the 6.2.0 with sentinel host name support and fixing all the related issues.
https://github.com/redis/redis/issues/8507 https://github.com/redis/redis/pull/8517 https://github.com/redis/redis/pull/8481 https://github.com/redis/redis/issues/8300
We are evaluating to run sentinel based redis cluster on kubernetes, so went ahead and verified 6.2.0 from Docker Hub , but surprisingly find out that, upon replica pod restart, sentinel replicas mymaster stuck with 9) "flags"
10) "s_down,slave" state and never recovered.
127.0.0.1:26379> sentinel replicas mymaster
1) 1) "name"
2) "redis-1.redis.FQDN"
3) "ip"
4) "redis-1.redis.FQDN"
5) "port"
6) "6379"
7) "runid"
8) "7b69bdd9dec849aa17bd9912b7e994cb6095b524"
9) "flags"
10) "s_down,slave"
11) "link-pending-commands"
12) "39"
13) "link-refcount"
14) "1"
15) "last-ping-sent"
16) "704052"
17) "last-ok-ping-reply"
18) "704597"
19) "last-ping-reply"
20) "704597"
21) "s-down-time"
22) "699026"
23) "down-after-milliseconds"
24) "5000"
25) "info-refresh"
26) "706516"
27) "role-reported"
28) "slave"
29) "role-reported-time"
30) "887409"
31) "master-link-down-time"
32) "0"
33) "master-link-status"
34) "ok"
35) "master-host"
36) "redis-0.redis.FQDN"
37) "master-port"
38) "6379"
39) "slave-priority"
40) "100"
41) "slave-repl-offset"
42) "66025"
last log on sentinel
1:X 23 Feb 2021 21:21:47.545 # +sdown slave redis-1.redis.FQDN:6379 redis-1.redis.FQDN 6379 @ mymaster redis-0.redis.FQDN 6379
happy to provide more details if required, thanks!
Comment From: yossigo
@satheeshaGowda It seems like sentinel still considers the connection up. This can happen if your instance changed an IP and the underlying network doesn't respond with ICMP or RST to packets of an old connection. Can you confirm this is the case?
Not very familiar with the Sentinel code base - I'd expect a reconnect timeout or at least a way to configure TCP keepalive on the sockets but I see none of that. @hwware maybe you're aware of something?
Comment From: satheeshaGowda
Hi @yossigo, thanks for taking a look and would like to confirm that indeed IP got changed but not sure about underneath network behavior, if required we can take tcp dump and analyze.
Comment From: hwware
@yossigo from my observation the link was down in 704 s ago, please see the following fields:
15) "last-ping-sent"
16) "704052"
17) "last-ok-ping-reply"
18) "704597"
19) "last-ping-reply"
20) "704597"
@satheeshaGowda I think there is something wrong with your k8 network settings, can you confirm this is the case? Also it would be great if you can tell us your topology of your deployments for master, slaves and sentinels, thanks!
Comment From: hwware
@satheeshaGowda , sorry just saw your message, thanks for confirming...
Comment From: satheeshaGowda

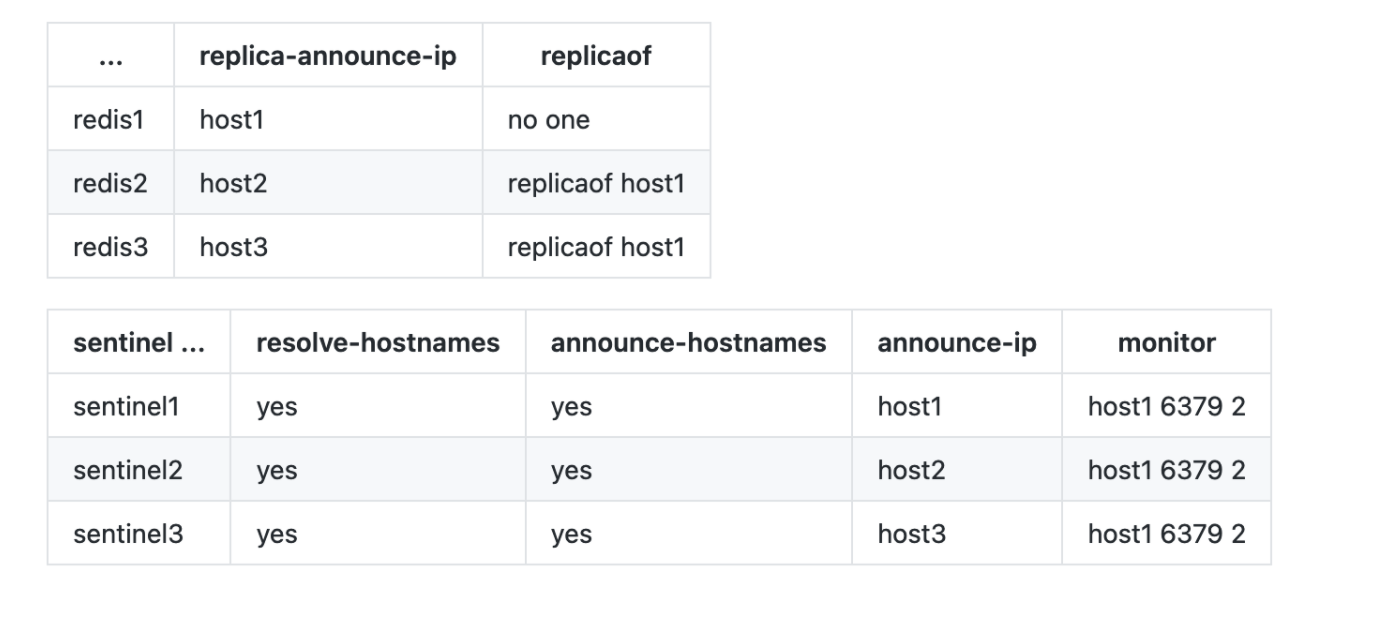

Here is our topology and relevant config.
Redis Kube Spec
apiVersion: apps/v1
kind: StatefulSet
metadata:
name: redis
spec:
serviceName: redis
replicas: 3
selector:
matchLabels:
app: redis
template:
metadata:
labels:
app: redis
spec:
initContainers:
- name: config
image: redis:6.2.0
command: [ "bash", "-c" ]
args:
- |
cp /tmp/redis/redis.conf /etc/redis/redis.conf
MASTER_FQDN=redis-0.redis.REDACTED
POD_FQDN=$(hostname -f)
echo "replica-announce-ip $POD_FQDN" >> /etc/redis/redis.conf
echo "replica-announce-port 6379" >> /etc/redis/redis.conf
if [ "$POD_FQDN" = "$MASTER_FQDN" ]; then
echo "this is master, not updating config..."
else
echo "updating replica redis.conf..."
echo "replicaof $MASTER_FQDN 6379" >> /etc/redis/redis.conf
fi
cat /etc/redis/redis.conf
volumeMounts:
- name: redis-config
mountPath: /etc/redis/
- name: config
mountPath: /tmp/redis/
containers:
- name: redis
image: redis:6.2.0
command: ["redis-server"]
args: ["/etc/redis/redis.conf"]
ports:
- containerPort: 6379
name: redis
volumeMounts:
- name: data
mountPath: /data
- name: redis-config
mountPath: /etc/redis/
volumes:
- name: redis-config
emptyDir: {}
- name: config
configMap:
name: redis-config
volumeClaimTemplates:
- metadata:
name: data
spec:
accessModes: [ "ReadWriteOnce" ]
storageClassName: scaleio
resources:
requests:
storage: 100Mi
---
apiVersion: v1
kind: Service
metadata:
name: redis
spec:
clusterIP: None
ports:
- port: 6379
targetPort: 6379
name: redis
selector:
app: redis
Sentinel Kube Spec
apiVersion: apps/v1
kind: StatefulSet
metadata:
name: sentinel
spec:
serviceName: sentinel
replicas: 3
selector:
matchLabels:
app: sentinel
template:
metadata:
labels:
app: sentinel
spec:
initContainers:
- name: config
image: redis:6.2.0
command: [ "sh", "-c" ]
args:
- |
REDIS_PASSWORD=testpassword
MASTER_FQDN=redis-0.redis.REDACTED
POD_FQDN=$(hostname -f)
echo "port 26379
protected-mode no
sentinel resolve-hostnames yes
sentinel announce-hostnames yes
sentinel announce-ip $POD_FQDN
sentinel announce-port 26379
sentinel monitor mymaster $MASTER_FQDN 6379 2
sentinel down-after-milliseconds mymaster 5000
sentinel failover-timeout mymaster 60000
sentinel parallel-syncs mymaster 1
sentinel auth-pass mymaster $REDIS_PASSWORD
" > /etc/redis/sentinel.conf
cat /etc/redis/sentinel.conf
volumeMounts:
- name: redis-config
mountPath: /etc/redis/
containers:
- name: sentinel
image: redis:6.2.0
command: ["redis-server", "/etc/redis/sentinel.conf", "--sentinel"]
ports:
- containerPort: 26379
name: sentinel
volumeMounts:
- name: redis-config
mountPath: /etc/redis/
- name: data
mountPath: /data
volumes:
- name: redis-config
emptyDir: {}
volumeClaimTemplates:
- metadata:
name: data
spec:
accessModes: [ "ReadWriteOnce" ]
storageClassName: scaleio
resources:
requests:
storage: 100Mi
---
apiVersion: v1
kind: Service
metadata:
name: sentinel
spec:
clusterIP: None
ports:
- port: 26379
targetPort: 26379
name: sentinel
selector:
app: sentinel
Comment From: hwware
@satheeshaGowda I did not find something specifically goes wrong in your config, maybe is there any change happens during runtime?
Comment From: satheeshaGowda
No, not really, and its always reproducible @hwware
Comment From: yossigo
@satheeshaGowda I think the best way to confirm this is to use netstat on the sentinel node and see if there are still TCP connections established with the Redis at the old address. Assuming that's the case, we'll have to address that in one of two ways:
1) Make Sentinel explicitly reconnect after some inactivity time. 2) Use TCP_KEEPALIVE to make the socket drop itself after some time.
[1] will probably be a better fix in the long run, but [2] is easier.
This is a fairly fundamental issue, I guess this never came up before because any situation where the instance's IP changed could not be supported anyway.
Comment From: juris
Having this issue on Kubernetes with AWS CNI plugin. Can confirm that old IP address still appears in netstat output.
The same applies to replicas. If I delete a replica pod, Sentinel does not pick up the replica with the new IP. Connection to the old one is still present with SYN_SENT status.
Comment From: kenlee1988

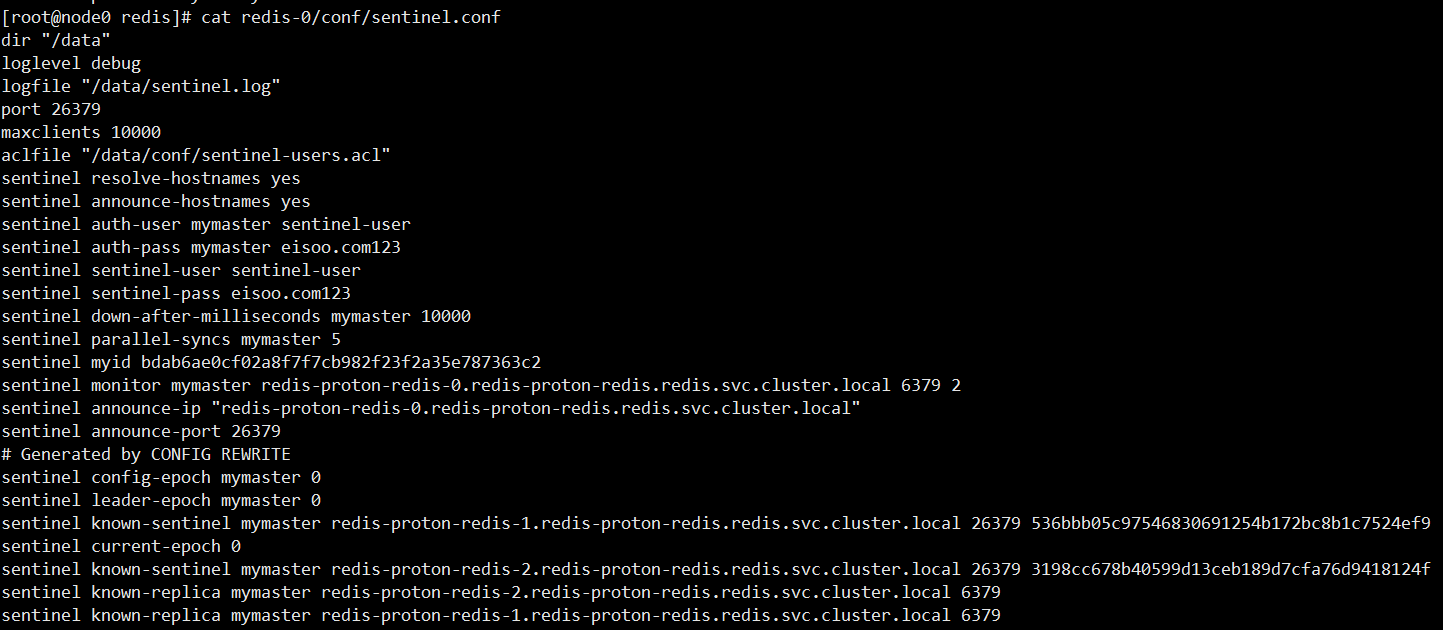

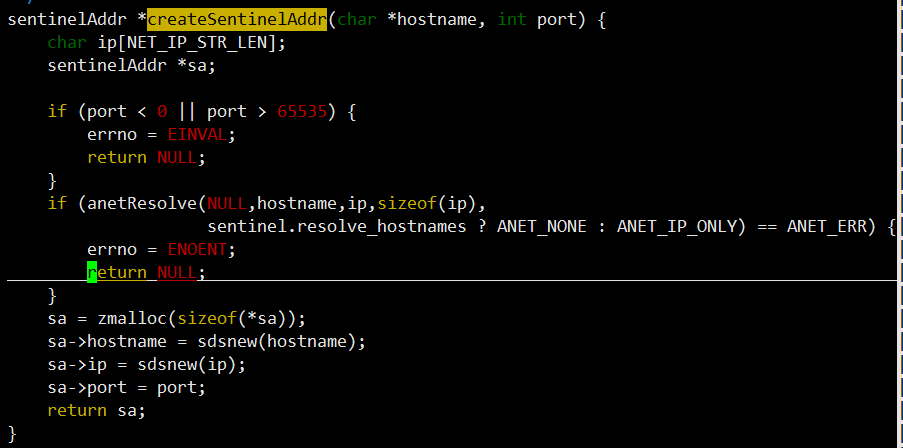

Having this issue on Kubernetes 1.20
![Redis [BUG]Sentinel stuck with +sdown upon replica pod restart](https://www.nineya.com/upload/2025/1/2051054070293631)
![Redis [BUG]Sentinel stuck with +sdown upon replica pod restart](https://www.nineya.com/upload/2025/1/2051061254735772)
![Redis [BUG]Sentinel stuck with +sdown upon replica pod restart](https://www.nineya.com/upload/2025/1/2051102075977608)
Comment From: yossigo
@juris A SYN_SENT entry in netstat implies it's attempting to reconnect, I was actually expecting to find an ESTABLISHED entry which would indicate the connection did not drop and hangs in there due to lack of timeout.
@kenlee1988 I'm not sure your report is related to the previous issues but there's certainly a real issue there. I've put together a quick patch, but unfortunately I don't have the bandwidth at the moment to set up an environment and test it properly or validate that all similar cases are indeed covered. I'll PR that and if anyone can pick this up and test/improve that can be a great help.
Comment From: troyanov
Might be the same issue as https://github.com/redis/redis/issues/9103?
Comment From: moticless
Hope this PR will fix it. Thanks
