Describe the bug
Open Telemetry Java Agent version 1.21 don't like the Instrument names produced by Spring Security 6.0 (from Class ObservationFilterChainDecorator)
Here is the WARNING Log (It appears to be a warning but is logged with log lever error by Spring):
WARN io.opentelemetry.ApiUsageLogging - Instrument name "spring.security.filterchains.WebAsyncManagerIntegrationFilter.after" is invalid, returning noop instrument. Instrument names must consist of 63 or fewer characters including alphanumeric, _, ., -, and start with a letter. Returning noop instrument.
The instrument name is produced by Spring Security there :
https://github.com/spring-projects/spring-security/blob/7ef659a643e964fd091a9ee0e61ab3ba00309d0b/web/src/main/java/org/springframework/security/web/ObservationFilterChainDecorator.java#L185
A fix for spaces in the name (#12490) has been released, however, the warning is still displayed, probably due to the length of the identifier.
To Reproduce Using a simple Spring Boot 3.0.3 project with Kotlin 1.7, JDK 17, Spring Boot 3.0.3, Spring Security 6.0.2 and Maven. Using Open Telemetry java Agent v 1.21. The application is running in a docker container, but you can reproduce the problem with a java -jar springboot.jar -javaagent:opentelemetry-javaagent-all.jar
Docker File :
``` ARG OPENJDK_IMAGE=openjdk:17-slim-bullseye ARG USER=app ARG WORKDIR=/app ARG OPENTELEMETRY_VERSION=1.21.0 ARG OPENTELEMETRY_REPO="https://github.com/open-telemetry/opentelemetry-java-instrumentation" ARG OPENTELEMETRY_JAR_PATH="/releases/download/v${OPENTELEMETRY_VERSION}/opentelemetry-javaagent.jar" ARG OPENTELEMETRY_JAR=opentelemetry-javaagent-all.jar
# Build FROM busybox:stable AS builder
ARG USER ARG WORKDIR ARG OPENTELEMETRY_REPO ARG OPENTELEMETRY_JAR_PATH ARG OPENTELEMETRY_JAR
RUN addgroup ${USER} \ && adduser -D -H -G ${USER} ${USER}
WORKDIR ${WORKDIR}
RUN wget -O ${OPENTELEMETRY_JAR} ${OPENTELEMETRY_REPO}${OPENTELEMETRY_JAR_PATH}
# Main FROM ${OPENJDK_IMAGE}
ARG USER ARG WORKDIR ARG OPENTELEMETRY_JAR
COPY --from=builder /etc/group /etc/group COPY --from=builder /etc/passwd /etc/passwd
USER ${USER}:${USER} WORKDIR ${WORKDIR}
ENV JAVA_TOOL_OPTIONS=-javaagent:${OPENTELEMETRY_JAR} COPY --from=builder ${WORKDIR} . ```
Expected behaviour
The expected behaviour is that Open Telemetry Java Agent doesn't create WARNING logs about Spring Security instrument names.
Comment From: FrankSpitulski
@jzheaux this fix does not seem to have actually made it into 6.0.3 as the release notes say. https://github.com/spring-projects/spring-security/blob/6.0.3/web/src/main/java/org/springframework/security/web/ObservationFilterChainDecorator.java
Comment From: mlux86
@jzheaux Josh, as the change apparently didn't make it into 6.0.3, are you planning to integrate it into the next release?
Comment From: rcollette

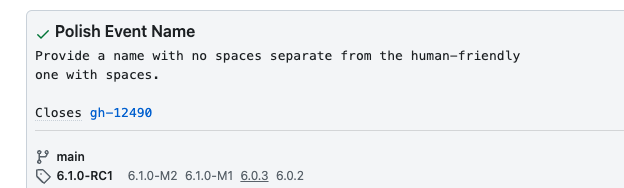

It did make it in, it's the Polish Event Name commit on Jan 6th however it is not dealing with long names like
[otel.javaagent 2023-04-28 02:14:38:190 +0000] [http-nio-5000-exec-1] WARN io.opentelemetry.sdk.metrics.internal.InstrumentNameValidator - Instrument name "spring.security.filterchains.WebAsyncManagerIntegrationFilter.after" is invalid, returning noop instrument. Instrument names must consist of 63 or fewer characters including alphanumeric, _, ., -, and start with a letter. Returning noop instrument.
This is more like an incompatibility between the metric names defined by Spring and the OTEL limitations. This is likely one of those things that will go to finger pointing till the end of time since an RFC spec is not providing guidance.
Comment From: FrankSpitulski
@rcollette I’ve linked the 6.0.3 file that should have the Polish Event Name commit on top of it but those changes are missing.
Comment From: rcollette
@FrankSpitulski - Look at line 184 of ObservationFilterChainDecorator... it has the changes from Polish Event Name.
Plus, note the tags
Comment From: FrankSpitulski
My bad, you’re correct that the Polish Event Names commit made it in afterwards. It is odd to see the fix removed just after it was committed.
per the Bug Fixes section in this release https://github.com/spring-projects/spring-security/releases/tag/6.0.3 I would expect the that closing the issue would mean that it was resolved successfully. It is not clear why the opentelemetry compatible changes were backed out.
Comment From: mlux86
So it looks like it was finally fixed in 6.1.0 😎 At least I don't observe the problem anymore once I pinned spring-security to that version.
Comment From: odoihc
Hi, the warning is still present with 6.1.0, please let's fix it if possible @jzheaux
[otel.javaagent 2023-06-06 09:21:36:206 +0200] [http-nio-8082-exec-1] WARN io.opentelemetry.sdk.metrics.SdkMeter - Instrument name "spring.security.filterchains.WebAsyncManagerIntegrationFilter.before" is invalid, returning noop instrument. Instrument names must consist of 63 or fewer characters including alphanumeric, _, ., -, and start with a letter.
java.lang.AssertionError
at io.opentelemetry.sdk.metrics.SdkMeter.checkValidInstrumentName(SdkMeter.java:161)
at io.opentelemetry.sdk.metrics.SdkMeter.counterBuilder(SdkMeter.java:85)
at io.opentelemetry.javaagent.shaded.instrumentation.micrometer.v1_5.OpenTelemetryCounter.<init>(OpenTelemetryCounter.java:36)
at io.opentelemetry.javaagent.shaded.instrumentation.micrometer.v1_5.OpenTelemetryMeterRegistry.newCounter(OpenTelemetryMeterRegistry.java:76)
Comment From: andrebask
You see,see
On Thu, 8 Jun 2023, 4:38 pm odoihc, @.***> wrote:
Hi, the warning is still present with 6.1.0, please let's fix it if possible @jzheaux https://github.com/jzheaux
[otel.javaagent 2023-06-06 09:21:36:206 +0200] [http-nio-8082-exec-1] WARN io.opentelemetry.sdk.metrics.SdkMeter - Instrument name "spring.security.filterchains.WebAsyncManagerIntegrationFilter.before" is invalid, returning noop instrument. Instrument names must consist of 63 or fewer characters including alphanumeric, _, ., -, and start with a letter. java.lang.AssertionError at io.opentelemetry.sdk.metrics.SdkMeter.checkValidInstrumentName(SdkMeter.java:161) at io.opentelemetry.sdk.metrics.SdkMeter.counterBuilder(SdkMeter.java:85) at io.opentelemetry.javaagent.shaded.instrumentation.micrometer.v1_5.OpenTelemetryCounter.
(OpenTelemetryCounter.java:36) at io.opentelemetry.javaagent.shaded.instrumentation.micrometer.v1_5.OpenTelemetryMeterRegistry.newCounter(OpenTelemetryMeterRegistry.java:76) — Reply to this email directly, view it on GitHub https://github.com/spring-projects/spring-security/issues/12811#issuecomment-1582844920, or unsubscribe https://github.com/notifications/unsubscribe-auth/AACUBA5D3YEGS3LBE57NTCTXKHWW5ANCNFSM6AAAAAAVL3UNKI . You are receiving this because you authored the thread.Message ID: @.***>
Comment From: tomilchik
Not sure of the eventual outcome of this ^^^. But: same behavior observed with SS 6.0.2 + OTEL 1.28.0. I don't think this is Spring Security bug. Metric names are valid, except they exceed 63 chars (since they are constructed using actual filter names). This looks to be OTEL Agent bug; limit of 63 chars on anything is too restrictive.
Comment From: rcollette
It's not an OTEL agent bug. 63 Characters is the limit defined by the OTEL specification.
https://opentelemetry.io/docs/specs/otel/metrics/api/
Comment From: aegliv
For everyone else stumbling over this issue, it seemsbe be adressed by OTEL itself, see: https://github.com/open-telemetry/opentelemetry-java/pull/5697
