I was using the spring security docs and this link as a reference to implement SSO: https://medium.com/digital-software-architecture/spring-boot-spring-security-with-saml-2-83d87df5b470
This seems to work if the spring boot starter parent dependency is version 2.4.2. But fails with version 2.7.2. It gives an error Invalid signature for object [id…]
I messed around with the code a bit and it only worked when i changed the identityprovider tag in the yaml file to assertingparty tag.
So the spring docs says to use this yaml file: https://docs.spring.io/spring-security/reference/servlet/saml2/login/overview.html#saml2-specifying-identity-provider-metadata
But the correct yaml file is: spring: security: saml2: relyingparty: registration: adfs: assertingparty: entity-id: https://idp.example.com/issuer verification.credentials: - certificate-location: "classpath:idp.crt" singlesignon.url: https://idp.example.com/issuer/sso singlesignon.sign-request: false
Comment From: jvalkeal
You're right that it's expected to work with assertingparty as Spring Boot 2.7.x deprecated identityprovider in favour of assertingparty. We need to change docs to mention something about this deprecation.
Can you share a bit more about the error, do you possible have a sample we could run? Did it fail at server startup or at runtime?
Comment From: jvalkeal
Also looking https://github.com/spring-projects/spring-boot/issues/30128, some new properties are now handled via boot's auto-config, but those added in that issue don't check deprecated properties.
I also saw a simple boot app(2.7.x) not to fail at startup when using identityprovider but it did with assertingparty. I expected behaviour to be same.
Also boot 3.0.x did remove deprecations so identityprovider is not processed anymore.
Comment From: Anubhav-2000
Hi @jvalkeal , When i have my yaml file like this: https://docs.spring.io/spring-security/reference/servlet/saml2/login/overview.html#saml2-specifying-identity-provider-metadata
Along with my security config file as:
@EnableWebSecurity
public class SecurityConfig {
@Autowired
private RelyingPartyRegistrationRepository relyingPartyRegistrationRepository;
@Bean
SecurityFilterChain app(HttpSecurity http) throws Exception {
// @formatter:off
RelyingPartyRegistrationResolver relyingPartyRegistrationResolver = new DefaultRelyingPartyRegistrationResolver(this.relyingPartyRegistrationRepository);
Saml2MetadataFilter filter = new Saml2MetadataFilter(relyingPartyRegistrationResolver, new OpenSamlMetadataResolver());
http
.authorizeHttpRequests((authorize) -> authorize
.anyRequest().authenticated()
)
.saml2Login(withDefaults())
.addFilterBefore(filter, Saml2WebSsoAuthenticationFilter.class);;
// @formatter:on
return http.build();
}
}

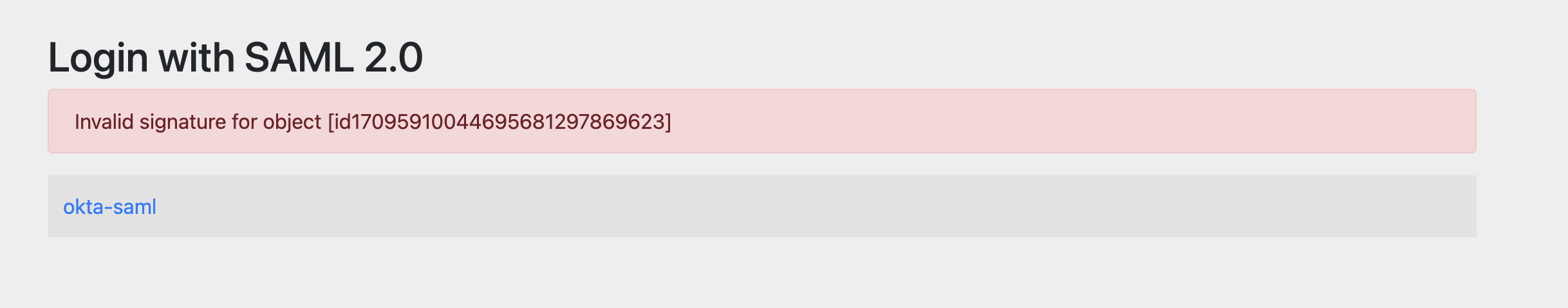

I get this error:
In the logs i get: Signature of Assertion 'id170959100448639611173959713' from Issuer: (url of issuer) not valid
My pom.xml:
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<parent>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-parent</artifactId>
<version>2.7.9</version>
<relativePath/> <!-- lookup parent from repository -->
</parent>
<groupId>com.example</groupId>
<artifactId>demo</artifactId>
<version>0.0.1-SNAPSHOT</version>
<name>demo</name>
<description>Demo project for Spring Boot</description>
<properties>
<java.version>17</java.version>
</properties>
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.security</groupId>
<artifactId>spring-security-saml2-service-provider</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-thymeleaf</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-actuator</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
<scope>test</scope>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-security</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.security</groupId>
<artifactId>spring-security-test</artifactId>
<scope>test</scope>
</dependency>
</dependencies>
<build>
<plugins>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
</plugin>
</plugins>
</build>
</project>
Comment From: jvalkeal
If you use:
spring:
security:
saml2:
relyingparty:
registration:
adfs:
identityprovider:
# assertingparty:
entity-id: https://idp.example.com/issuer
verification.credentials:
- certificate-location: "classpath:idp.crt"
singlesignon.url: https://idp.example.com/issuer/sso
singlesignon.sign-request: false
you should get exception (as it happens with assertingparty):
Caused by: java.lang.IllegalStateException: Certificate location 'class path resource [idp.crt]' does not exist
at org.springframework.util.Assert.state(Assert.java:97) ~[spring-core-5.3.25.jar:5.3.25]
at org.springframework.boot.autoconfigure.security.saml2.Saml2RelyingPartyRegistrationConfiguration.readCertificate(Saml2RelyingPartyRegistrationConfiguration.java:176) ~[spring-boot-autoconfigure-2.7.9.jar:2.7.9]
I think these all goes back to boot's handling of that deprecation, for example in this check empty list is returned, not null so it tries to use one from assertingparty.
https://github.com/spring-projects/spring-boot/blob/4bd0f7511991ddd15879e9a317f90eff1fd97722/spring-boot-project/spring-boot-autoconfigure/src/main/java/org/springframework/boot/autoconfigure/security/saml2/Saml2RelyingPartyRegistrationConfiguration.java#L237-L240
Other issue is below checks where deprecation is not even checked:
https://github.com/spring-projects/spring-boot/blob/4bd0f7511991ddd15879e9a317f90eff1fd97722/spring-boot-project/spring-boot-autoconfigure/src/main/java/org/springframework/boot/autoconfigure/security/saml2/Saml2RelyingPartyRegistrationConfiguration.java#L223-L233
Comment From: wilkinsona
I've opened https://github.com/spring-projects/spring-boot/issues/34525 to fix the problem with Boot ignoring the certificate location.
Comment From: jvalkeal
We'll use this issue to just update docs.
Comment From: Anubhav-2000
Should i still update the docs to reflect assertingparty instead of identityprovider?
Comment From: jvalkeal
@Anubhav-2000 If you want to create a PR, then it should be done against branch 6.0.x. Thx for your help.
