Context
How has this issue affected you? Without this enhancement request, we are blind in production for issues getting the token using spring-boot-starter-oauth2-client
What are you trying to accomplish? Observability for the call to get the token
What other alternatives have you considered? Are you aware of any workarounds? Dropping spring-boot-starter-oauth2-client in favor of writing our own two calls with the RestClient, which we would like to avoid (we like spring-boot-starter-oauth2-client)
Current Behavior
Here is our code:
@Configuration
public class RestClientConfig {
@Bean
public RestClient restClient(OAuth2AuthorizedClientManager authorizedClientManager, RestClient.Builder restClientBuilder) {
OAuth2ClientHttpRequestInterceptor interceptor = new OAuth2ClientHttpRequestInterceptor(authorizedClientManager);
return restClientBuilder
.requestInterceptor(interceptor)
.build();
}
@RestController
public class LessonsController {
private final RestClient restClient;
public LessonsController(RestClient restClient) {
this.restClient = restClient;
}
@GetMapping("/lessons")
public String fetchLessons() {
return restClient.get()
.uri("https://someprotectedresourceneedingtoken")
.attributes(clientRegistrationId("my-client"))
.retrieve()
.body(String.class);
}
}
spring:
application:
name: client-application
security:
oauth2:
client:
registration:
my-client:
provider: the-provider
client-id: someusername
client-secret: somepassword
authorization-grant-type: client_credentials
scope:
- resolve
- download
provider:
ssa-provider:
token-uri: https://somethirdparty.com/token
logging:
level:
root: DEBUG
With this code, we would get the following observation. (the get part is important)
2025-01-09T23:59:01.308+08:00 DEBUG 4250 --- [client-application] [nio-8080-exec-2] [29e0fac8ee9435452ddc0e91ac67b652-9c95bddc85f879bb] s.n.www.protocol.http.HttpURLConnection : sun.net.www.MessageHeader@10ce6bfd 8 pairs: {POST /token HTTP/1.1: null}{Accept: application/json;charset=UTF-8}{Content-Type: application/x-www-form-urlencoded;charset=UTF-8}{...5}{User-Agent: Java/23}{Host: ....com}{Connection: keep-alive}{Content-Length: 76}
2025-01-09T23:59:01.420+08:00 DEBUG 4250 --- [client-application] [nio-8080-exec-2] [29e0fac8ee9435452ddc0e91ac67b652-9c95bddc85f879bb] s.n.www.protocol.http.HttpURLConnection : sun.net.www.MessageHeader@67f01113 13 pairs: {null: HTTP/1.1 200}{Date: Thu, 09 Jan 2025 15:59:01 GMT}{Content-Type: application/json;charset=UTF-8}{Transfer-Encoding: chunked}{Connection: keep-alive}{Vary: origin,access-control-request-method,access-control-request-headers,accept-encoding}{X-Content-Type-Options: nosniff}{X-XSS-Protection: 0}{Cache-Control: no-cache, no-store, max-age=0, must-revalidate}{Pragma: no-cache}{Expires: 0}{Strict-Transport-Security: max-age=31536000 ; includeSubDomains}{X-Frame-Options: DENY}
2025-01-09T23:59:01.420+08:00 DEBUG 4250 --- [client-application] [nio-8080-exec-2] [29e0fac8ee9435452ddc0e91ac67b652-9c95bddc85f879bb] o.s.web.client.RestTemplate : Response 200 OK
2025-01-09T23:59:01.421+08:00 DEBUG 4250 --- [client-application] [nio-8080-exec-2] [29e0fac8ee9435452ddc0e91ac67b652-9c95bddc85f879bb] o.s.web.client.RestTemplate : Reading to [org.springframework.security.oauth2.core.endpoint.OAuth2AccessTokenResponse] as "application/json;charset=UTF-8"

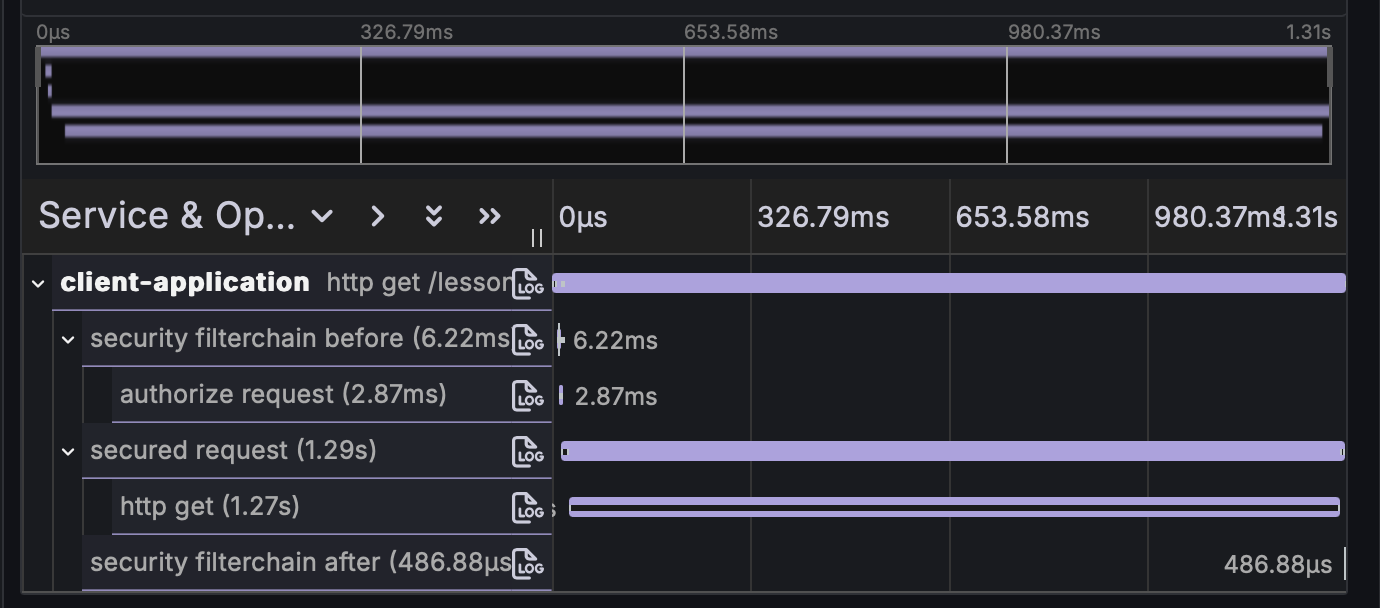

Unfortunately, the first call to get the token is missing. We can only see the call to get the protected resource.
This is a drawback, the service providing the token is sometimes flaky. Overall, it is a fair requirement to have observability on the call to get the token as well.
Expected Behavior

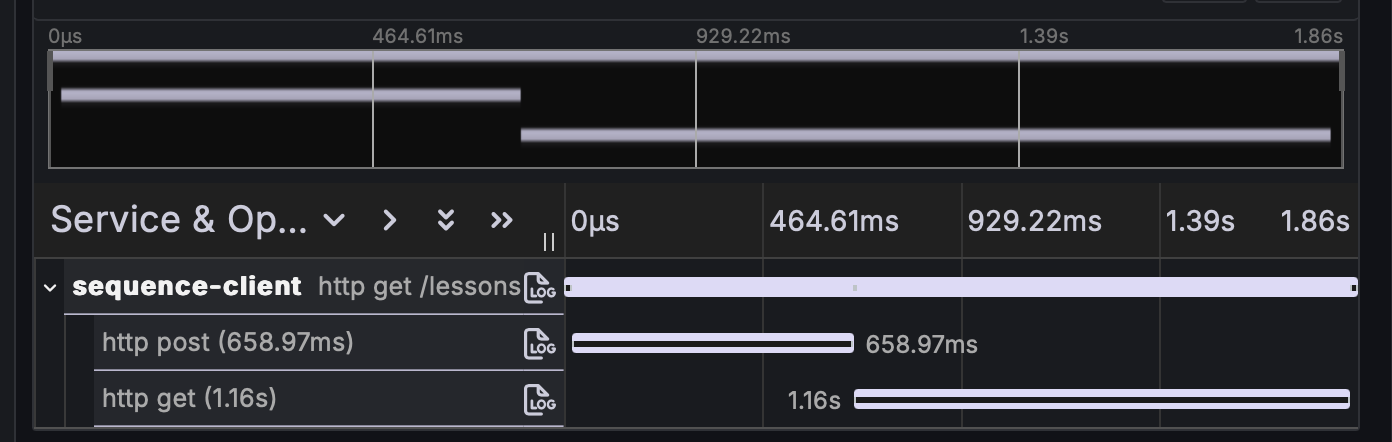

We are hoping to see something like this:
This is achievable by not using spring-boot-starter-oauth2-client and writing our own code:
@GetMapping("/lessons")
public String fetchLessons() {
Map ssa = restClient.post()
.uri("https://service.com/token?scope=resolve+download&grant_type=client_credentials")
.contentType(MediaType.APPLICATION_FORM_URLENCODED)
.headers(httpHeaders -> httpHeaders.setBasicAuth("aaa", "bbb"))
.retrieve()
.body(Map.class);
final MultiValueMap<String, String> params2 = new LinkedMultiValueMap<>();
params2.add("Authorization", "Bearer " + ssa.get("access_token"));
Consumer<HttpHeaders> consumer2 = it -> it.addAll(params2);
String result = restClient.get()
.uri("https://protectedresource...")
.headers(consumer2)
.retrieve()
.body(String.class);
return result;
}
But we like spring-boot-starter-oauth2-client and would like to avoid this route.
Would it be possible to enhance spring-boot-starter-oauth2-client, allowing it to pass in the custom RestClient? (not RestTemplate, not WebClient)
Rationale:
Many users already have a custom RestClient in their class path. It is properly configured with observability, SSL certificate, and so on.
Instead of defaulting the call to get the token with RestTemplate (which does not show any observability), it would be great if the user could pass the existing restClient.
Thank you for your time
Comment From: patpatpat123
Hello team, is it possible to get some help on this?
Comment From: jzheaux
Hi, @patpatpat123, as far as I know what you are asking for is already possible: https://docs.spring.io/spring-security/reference/servlet/oauth2/client/authorization-grants.html#oauth2-client-authorization-code-access-token
Am I misunderstanding?
Comment From: patpatpat123
Hello @jzheaux ,
Wanted to thank you for your time looking into this.
I saw the guide.
With either
@Configuration
public class RestClientConfig {
@Bean
public RestClient restClient(OAuth2AuthorizedClientManager authorizedClientManager, RestClient.Builder restClientBuilder) {
OAuth2ClientHttpRequestInterceptor interceptor = new OAuth2ClientHttpRequestInterceptor(authorizedClientManager);
return restClientBuilder
.requestInterceptor(interceptor)
.build();
}
or
@Configuration
public class RestClientConfig {
@Bean
public RestClient restClient(OAuth2AuthorizedClientManager authorizedClientManager, RestClient.Builder restClientBuilder) {
OAuth2ClientHttpRequestInterceptor interceptor = new OAuth2ClientHttpRequestInterceptor(authorizedClientManager);
return restClientBuilder
.requestInterceptor(interceptor)
.build();
}
@Bean
public OAuth2AccessTokenResponseClient<OAuth2AuthorizationCodeGrantRequest> accessTokenResponseClient() {
return new RestClientAuthorizationCodeTokenResponseClient();
}
}
or
@Configuration
public class RestClientConfig {
@Bean
public RestClient restClient(OAuth2AuthorizedClientManager authorizedClientManager, RestClient.Builder restClientBuilder) {
OAuth2ClientHttpRequestInterceptor interceptor = new OAuth2ClientHttpRequestInterceptor(authorizedClientManager);
return restClientBuilder
.requestInterceptor(interceptor)
.build();
}
@Bean
public OAuth2AccessTokenResponseClient<OAuth2AuthorizationCodeGrantRequest> accessTokenResponseClient(RestClient restClient) {
RestClientAuthorizationCodeTokenResponseClient accessTokenResponseClient =
new RestClientAuthorizationCodeTokenResponseClient();
accessTokenResponseClient.setRestClient(restClient);
return accessTokenResponseClient;
}
}
I am still seeing the use of RestTemplate
2025-02-05T18:43:32.360+08:00 DEBUG 5133 --- [client-application] [nio-8080-exec-2] [f69e232008fd4b2812539fe93a3b02f6-65c05f4d29a7ff08] o.s.web.client.RestTemplate : HTTP POST https://abc.com/token
2025-02-05T18:43:32.360+08:00 DEBUG 5133 --- [client-application] [nio-8080-exec-2] [f69e232008fd4b2812539fe93a3b02f6-65c05f4d29a7ff08] o.s.web.client.RestTemplate : Accept=[application/json, application/*+json]
2025-02-05T18:43:32.360+08:00 DEBUG 5133 --- [client-application] [nio-8080-exec-2] [f69e232008fd4b2812539fe93a3b02f6-65c05f4d29a7ff08] o.s.web.client.RestTemplate : Writing [{grant_type=[client_credentials], scope=[download]}] as "application/x-www-form-urlencoded;charset=UTF-8"
I would have expected to see the use of the rest client instead of the rest template. Am I wrong?

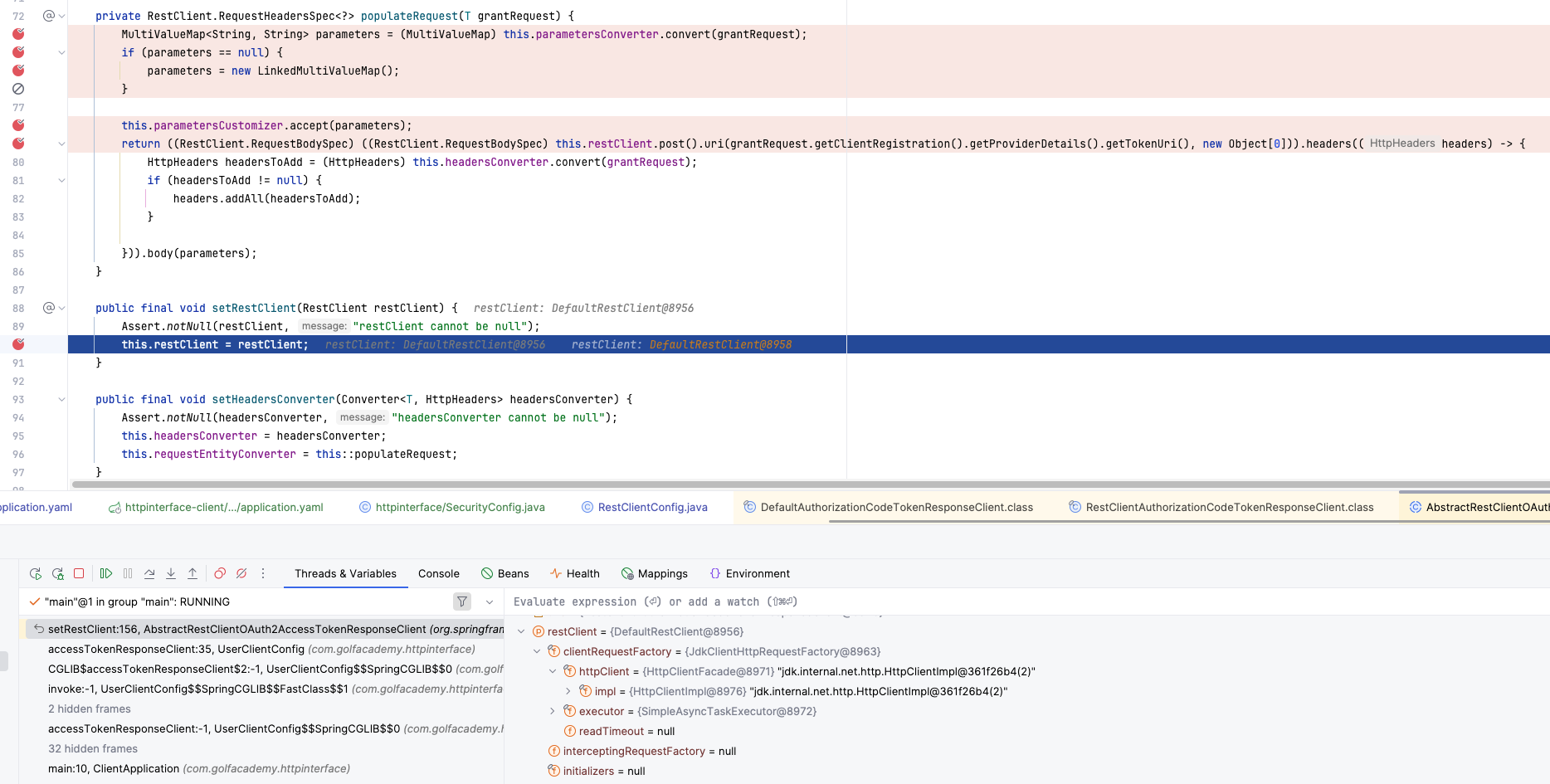

I can see the setRestClient() method suggested by the doc is being called.
But I would have expected the same RestClient provided, which has observability configured would get triggered. (Something like seeing the trace for line 79?)

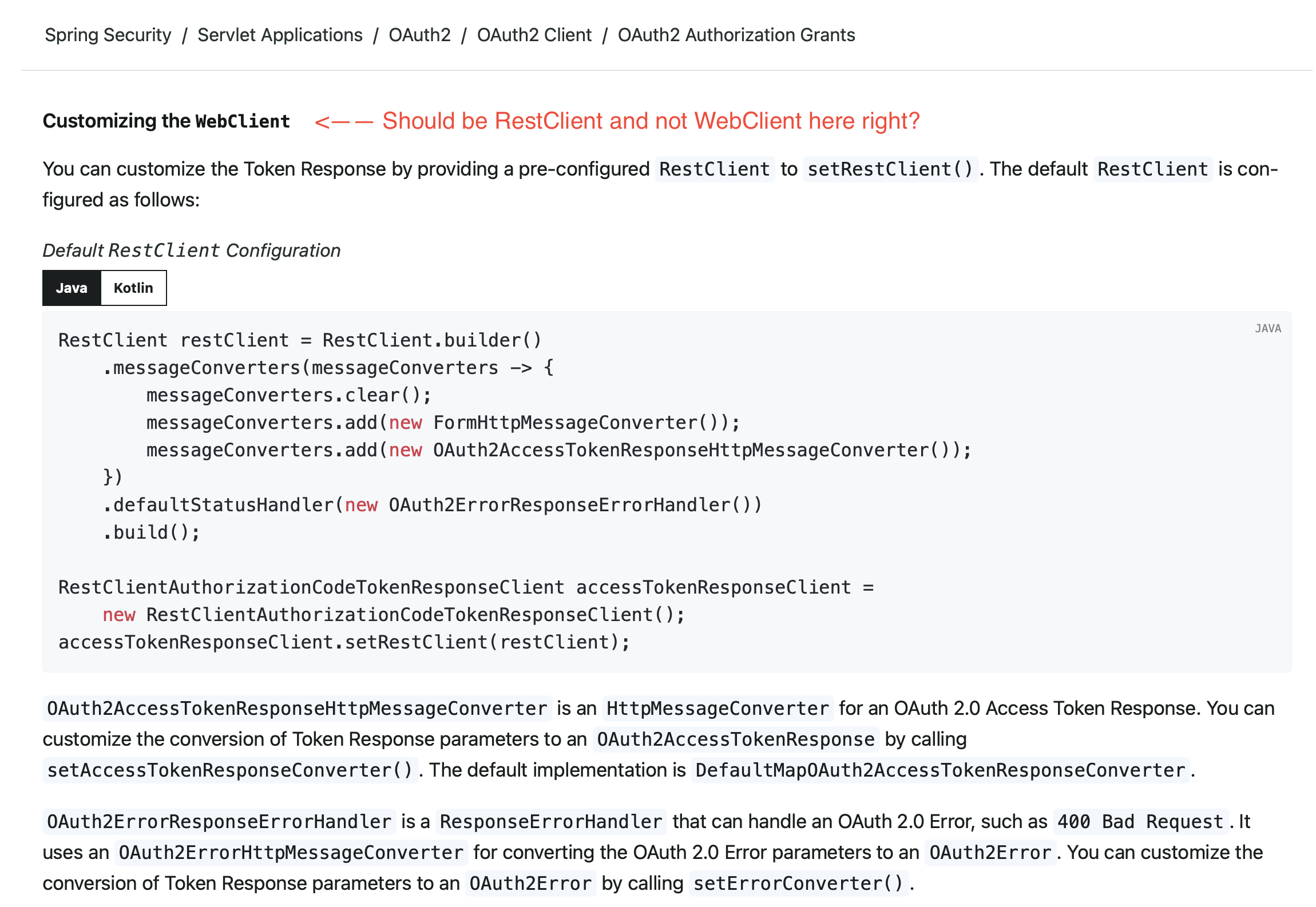

Also, just wanted to say, I think there is a typo in the doc (please see screenshot):
Could you please help by letting me know if I did something wrong in my RestClientConfig class?
Thank you again
Comment From: sjohnr
Hi @patpatpat123, thanks for reaching out. As @jzheaux mentioned, this is well supported through the example linked in the comment. The second configuration you provided is correct, the others are not. I have double-checked that this configuration works. At this point, I am not able to reproduce your finding.
Could you please provide a minimal, reproducible sample or ask a question on Stack Overflow with the same?
Comment From: sjohnr
Also, just wanted to say, I think there is a typo in the doc (please see screenshot):
It is a typo, yes. Would you like to submit a PR to fix the typo?
Comment From: patpatpat123
Sure @jzheaux ,
It is not a big deal actually.
On the file spring-security/docs/modules/ROOT/partials/servlet/oauth2/client/rest-client-access-token-response-client.adoc
line 260,
This:
=== Customizing the `WebClient`
Should be:
=== Customizing the `RestClient`
Comment From: sjohnr
Thanks @patpatpat123, please feel free to submit a PR.
Did you see this comment?
Could you please provide a minimal, reproducible sample or ask a question on Stack Overflow with the same?
