Spring Cloud Openfeign Feign Response Not Compressed

I have made a sample application. Even after enabling the request and response compression is not happening.

I am attaching the sample application.

Yml file

server:
  port: 8192
  servlet:
    context-path: /api/demo
  compression:
    enabled: true
    min-response-size: 1024


feign.compression.request.enabled: true
feign.compression.response.enabled: true

feign.client.config.default.loggerLevel: HEADERS

logging.level.com.example.feigndemo.ApiClient: DEBUG

eureka:
  client:
    enabled: false

api-client:
  ribbon:
    listOfServers: localhost:8192

The response headers does not contain gzip

when I hit the request from browser gzip happens

Server Call: http://localhost:8192/api/demo/feign/1

To Trigger feign call: feigndemo.zip

http://localhost:8192/api/demo/1

Can you please help.

Comment From: a601942905git

You should try the interface for passing body data. Then set the log feign: client: config: default: loggerLevel: FULL

Comment From: patan12

@a601942905git

This just enables the logging. Still I do not response headers that content is compressed

Comment From: a601942905git

When I tested, only the request has compression, and response does not.

Comment From: patan12

@a601942905git Same with me as well.

Comment From: ryanjbaxter

How are you making the request? If I do curl -v -H "Accept-Encoding: gzip" http://localhost:8192/api/demo/1 in the response headers I see

< HTTP/1.1 200
< vary: accept-encoding
< Content-Encoding: gzip
< Content-Type: application/json;charset=UTF-8
< Transfer-Encoding: chunked
< Date: Mon, 16 Sep 2019 18:36:43 GMT

Comment From: patan12

@ryanjbaxter

Sorry, I clubbed both server and client in one application. It might have caused some confusion

I am trying to simulate the below situation.

One Application invokes server through feign. Server has gzip compression enabled. And when feign compression is enabled, I expect the request and response to be compressed/uncompressed.

Here I have clubbed the server and client in the same application.

I invoke the http://localhost:8192/api/demo/1 from outside and it internally makes feign call to this http://localhost:8192/api/demo/feign/1

As I have enabled the compression at feign level, I expect the feign request shall pass gzip headers and response should contain gzip headers.

I notice two issues here

1. Feign adds two headers Accept-Encoding: deflate and Accept-Encoding: gzip. Though it is legally accepted, but spring boot has some issue. To make it work with spring boot there shall be only one header like this Accept-Encoding: deflate,gzip

ref issue: https://github.com/spring-projects/spring-boot/issues/18176

1. Second issue is that, I manually added Accept-Encoding: deflate,gzip to request, but feign was unable to compress response.

Let me know for any information

Comment From: ryanjbaxter

This still seems to be working as expected to me. Client makes a request without "Accept-Encoding: gzip For example curl -v http://localhost:8192/api/demo/1

Feign will add the Accept-Encoding: deflate,gzip header to the request made by the feign client. The server will receive those headers in the request and if compression is enabled reply back with a compressed response. However since the client (cURL) did not specify the headers the server should not return compressed data back to cURL in this case.

Feign adds two headers Accept-Encoding: deflate and Accept-Encoding: gzip. Though it is legally accepted, but spring boot has some issue. To make it work with spring boot there shall be only one header like this Accept-Encoding: deflate,gzip

When I log the headers that come in to /feign/{id} I see headers=[accept-encoding:"deflate", "gzip", accept:"*/*", user-agent:"Java/1.8.0_91", host:"localhost:8192", connection:"keep-alive"]. So it does appear that they are being sent correctly.

Comment From: patan12

@ryanjbaxter Sorry, I could not see response headers.

Am I missing something.

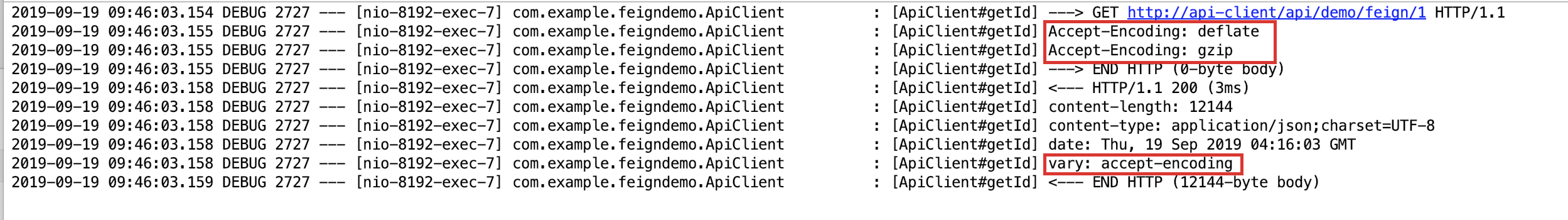

Here are the logs.

curl http://localhost:8192/api/demo/1

I can see these logs which denotes that 1. Request contains two separate Accept-Encoding Headers 2. Response headers does not have gzip encoding

[nio-8192-exec-7] com.example.feigndemo.ApiClient          : [ApiClient#getId] ---> GET http://api-client/api/demo/feign/1 HTTP/1.1
[nio-8192-exec-7] com.example.feigndemo.ApiClient          : [ApiClient#getId] Accept-Encoding: deflate
[nio-8192-exec-7] com.example.feigndemo.ApiClient          : [ApiClient#getId] Accept-Encoding: gzip
[nio-8192-exec-7] com.example.feigndemo.ApiClient          : [ApiClient#getId] ---> END HTTP (0-byte body)
[nio-8192-exec-7] com.example.feigndemo.ApiClient          : [ApiClient#getId] <--- HTTP/1.1 200 (3ms)
[nio-8192-exec-7] com.example.feigndemo.ApiClient          : [ApiClient#getId] content-length: 12144
[nio-8192-exec-7] com.example.feigndemo.ApiClient          : [ApiClient#getId] content-type: application/json;charset=UTF-8
[nio-8192-exec-7] com.example.feigndemo.ApiClient          : [ApiClient#getId] date: Thu, 19 Sep 2019 04:16:03 GMT
[nio-8192-exec-7] com.example.feigndemo.ApiClient          : [ApiClient#getId] vary: accept-encoding
[nio-8192-exec-7] com.example.feigndemo.ApiClient          : [ApiClient#getId] <--- END HTTP (12144-byte body)

Comment From: ryanjbaxter

The fact that you see

2019-09-19 09:52:19.604 DEBUG 71953 --- [nio-8192-exec-1] com.example.feigndemo.ApiClient          : [ApiClient#getId] Accept-Encoding: deflate
2019-09-19 09:52:21.291 DEBUG 71953 --- [nio-8192-exec-1] com.example.feigndemo.ApiClient          : [ApiClient#getId] Accept-Encoding: gzip

in the logs is just a side effect of how Feign is logging headers. Each value of each header will be printed out individually on its own line, see

https://github.com/OpenFeign/feign/blob/master/core/src/main/java/feign/Logger.java#L51

Add the following code to your app

@Configuration
    public class RequestLoggingFilterConfig {

        @Bean
        public CommonsRequestLoggingFilter logFilter() {
            CommonsRequestLoggingFilter filter
                    = new CommonsRequestLoggingFilter();
            filter.setIncludeQueryString(true);
            filter.setIncludePayload(true);
            filter.setMaxPayloadLength(10000);
            filter.setIncludeHeaders(true);
            filter.setAfterMessagePrefix("REQUEST DATA : ");
            return filter;
        }
    }

And then add log.level.org.springframework.web.filter.CommonsRequestLoggingFilter: DEBUG to application.yml and you will see the headers as they actually appear in the request.

Response headers does not have gzip encoding

I am asserting the the response headers should not have gzip encoding because you are not setting the Accept-Encoding header when making the cURL request. The server is honoring what the client requested.

Comment From: spring-projects-issues

If you would like us to look at this issue, please provide the requested information. If the information is not provided within the next 7 days this issue will be closed.

Comment From: spring-projects-issues

Closing due to lack of requested feedback. If you would like us to look at this issue, please provide the requested information and we will re-open the issue.
