SpringBoot Avoid illegal reflective access in CLI tests

Hi,

this is an attempt to get rid of illegal reflective access warnings in CLI tests. The idea is to use TomcatURLStreamHandlerFactory.disable(); and thus not registering any factory in URL that we would otherwise need to reset via reflection.

As this is part of the overall JDK 17 story under #26767, it should probably go into 2.5.x.

Let me know what you think. Cheers, Christoph

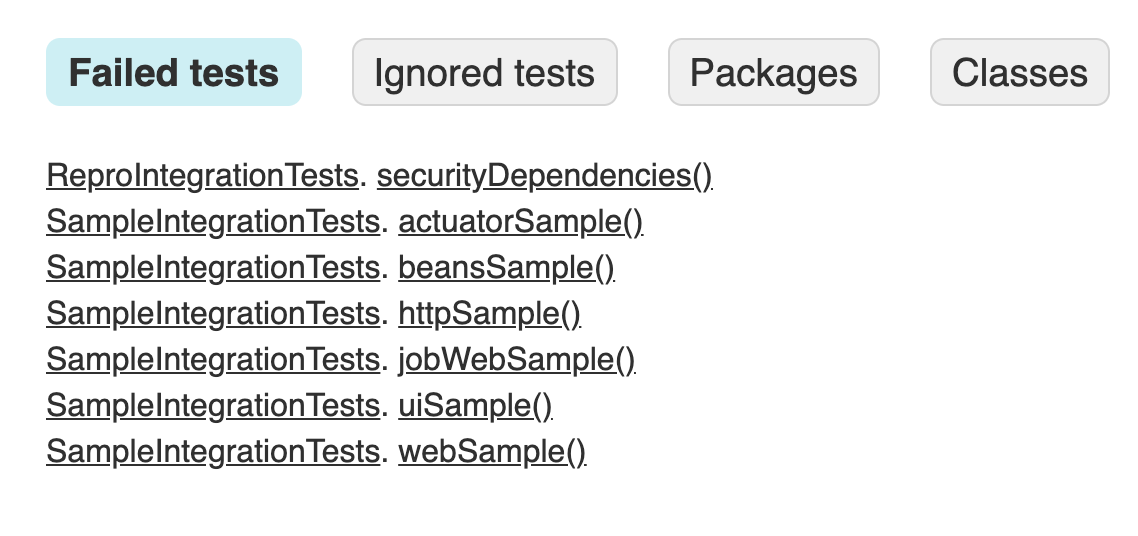

P.S.: I have this flaky / failing test that seems unrelated, but for completeness reasons:

:spring-boot-project:spring-boot-cli:test
    org.springframework.boot.cli.ReproIntegrationTests > securityDependencies()

General error during conversion: java.lang.IllegalArgumentException: Malformed \uxxxx encoding.

org.springframework.boot.cli.compiler.grape.DependencyResolutionFailedException: java.lang.IllegalArgumentException: Malformed \uxxxx encoding.
    at org.springframework.boot.cli.compiler.grape.AetherGrapeEngine.resolve(AetherGrapeEngine.java:298)
    at org.springframework.boot.cli.compiler.grape.AetherGrapeEngine.grab(AetherGrapeEngine.java:116)
        ...

Comment From: philwebb

I've got a feeling that reflection hack might have been because other tests had ended up setting it, perhaps indirectly via StandardRoot.registerURLStreamHandlerFactory(). @dreis2211 Did you try without the disable() call? I wonder why this specific test needed that. The code is 7+ years old so lots of things may have changed.

Comment From: dreis2211

@philwebb I tried without it and it horribly fails. SpringBoot Avoid illegal reflective access in CLI tests

Caused by: java.lang.Error: factory already defined
    at java.base/java.net.URL.setURLStreamHandlerFactory(URL.java:1228) ~[na:na]
    at org.apache.catalina.webresources.TomcatURLStreamHandlerFactory.<init>(TomcatURLStreamHandlerFactory.java:130) ~[tomcat-embed-core-9.0.46.jar:9.0.46]
    at org.apache.catalina.webresources.TomcatURLStreamHandlerFactory.getInstanceInternal(TomcatURLStreamHandlerFactory.java:53) ~[tomcat-embed-core-9.0.46.jar:9.0.46]
    at org.apache.catalina.webresources.TomcatURLStreamHandlerFactory.register(TomcatURLStreamHandlerFactory.java:77) ~[tomcat-embed-core-9.0.46.jar:9.0.46]
    at org.apache.catalina.webresources.StandardRoot.registerURLStreamHandlerFactory(StandardRoot.java:700) ~[tomcat-embed-core-9.0.46.jar:9.0.46]
    at org.apache.catalina.webresources.StandardRoot.initInternal(StandardRoot.java:682) ~[tomcat-embed-core-9.0.46.jar:9.0.46]
    at org.apache.catalina.util.LifecycleBase.init(LifecycleBase.java:136) ~[tomcat-embed-core-9.0.46.jar:9.0.46]

Comment From: philwebb

Thanks for trying that. It's strange that TomcatURLStreamHandlerFactory.instance is null but URL.factory is not. Probably a classloader issue since URL is in the base classloader.

I guess disable() ends up setting the instance, not calling URL and then later on StandardRoot.registerURLStreamHandlerFactory is no-op. So all things considered, I think calling disable() will work fine. LGTM.

Comment From: dreis2211

@philwebb I'm confused. Where did you see URL.factory being set?

I guess disable() ends up setting the instance, not calling URL and then later on StandardRoot.registerURLStreamHandlerFactory is no-op

Yes, that's the idea behind the PR.

Comment From: philwebb

Where did you see URL.factory being set

I didn't look in detail, but I guess that StandardRoot.registerURLStreamHandlerFactory was called in an earlier test. That triggers TomcatURLStreamHandlerFactory.register() which will call URL.setURLStreamHandlerFactory.

In a regular app the TomcatURLStreamHandlerFactory.instance null check is enough to stop that happening twice. I suspect here we've got some kind of classloader malarkey going on where TomcatURLStreamHandlerFactory.register() gets called, the URL has a factory set then the classloader is destroyed. Next time we get another classloader so TomcatURLStreamHandlerFactory.instance is null again but URL.factory is still set because it's part of the JVM base classloader.

Comment From: dreis2211

I didn't look in detail, but I guess that StandardRoot.registerURLStreamHandlerFactory was called in an earlier test.

That would surprise me in the CLI project. It might have been in other submodules, but then again they run in separate worker VMs (at least they should be) and thus don't interfere with each other.

Comment From: philwebb

Thanks @dreis2211. I've merged this to 2.5.x and forward to main.
