SpringBoot All Documents Added To Environment When Using Legacy Processing

Using Boot 2.7.5 I have this application.yaml

spring:
  config.use-legacy-processing: true
  application:
    name: demo

logging:
  level:
    org.springframework.web: info

---
spring:
  config:
    activate:
      on-profile: local

---
spring:
  config:
    activate:
      on-profile: alt


logging:
  level:
    org.springframework.web: debug
server:
  port: 9696

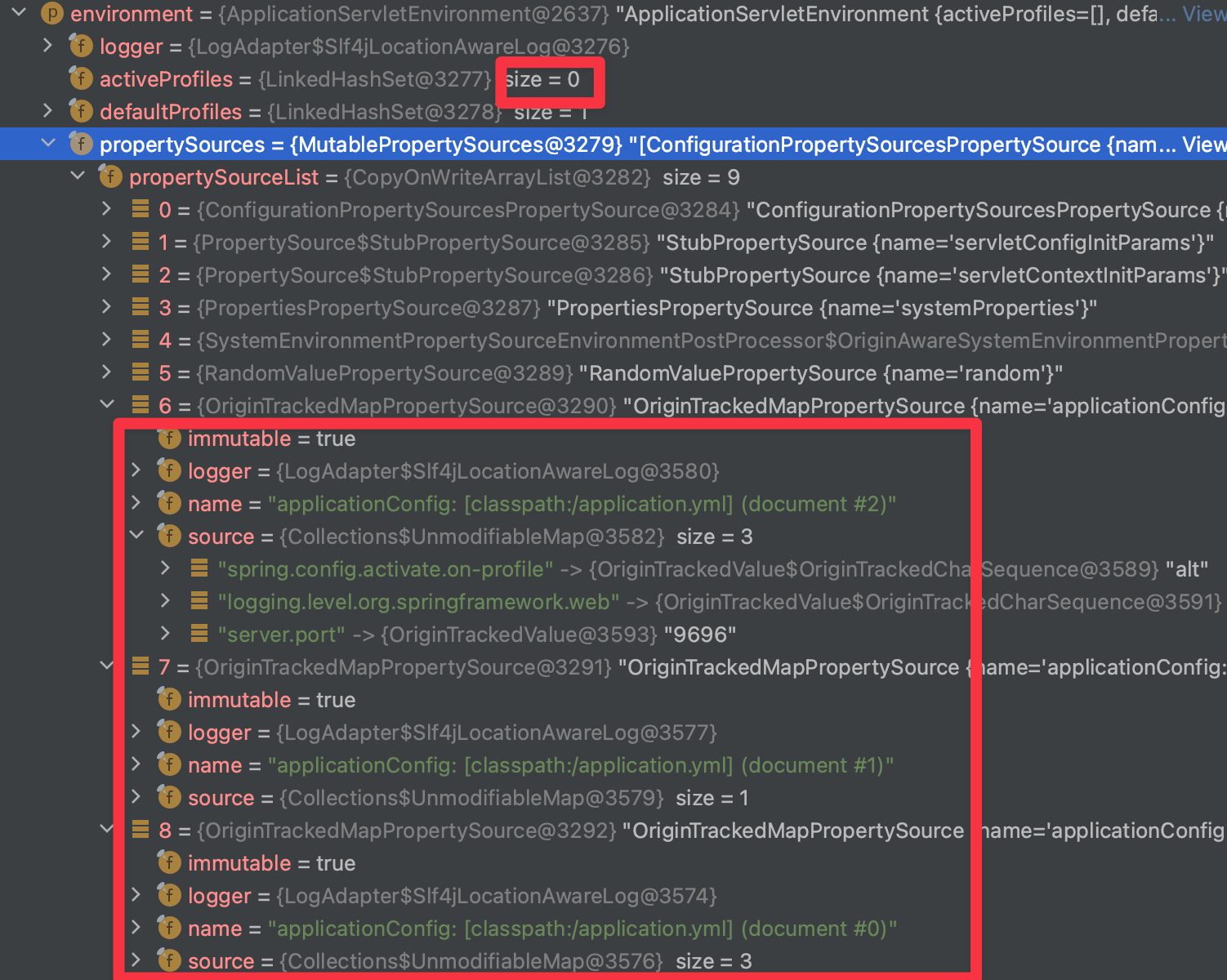

I have no profile enabled when running the app but all 3 documents in this application.yaml are added to the environment when setting use-legacy-processing to true.

When I start the app I notice that Tomcat starts on 9696. When use-legacy-processing is not used the server starts on 8080.

I have attached a sample project that reproduces the problem. demo-2.7.5.zip

Comment From: scottfrederick

With spring.config.use-legacy-processing: true you'll also need to use the legacy style of activating profiles with spring.profiles instead of spring.config.activate.on-profile:

spring:
  config.use-legacy-processing: true
  application:
    name: demo

logging:
  level:
    org.springframework.web: info

---
spring:
  profiles: local

---
spring:
  profiles: alt

logging:
  level:
    org.springframework.web: debug
server:
  port: 9696

Comment From: ryanjbaxter

Thanks @scottfrederick that makes sense
