SpringBoot Provide configuration for ignoring routes from being sampled

Right now, you have 3 options for configuring if a trace is reported. 1. Using the probability configuration properties, which only give you control over the percentage reported

Using a ObservationRegistryPredicate, however there doesn't seem to be a way to ignore any spans which are created as a result of a HTTP request because subsequent spans do not have an http.url attribute you can match on.
Providing a custom Sampler. However the shouldSample method does not receive the final attributes for the span and thus you cannot determine what path the sample is for.

Ideally Spring would provide a way to configure this. The primary use case being to ignore any traces related to /actuator since these typically are only for health checks and clutter up the tracing backend.

If there is another method I have not thought of that would work, I'd love to hear it!

Comment From: mhalbritter

There's a way, but it's not pretty:

@Configuration(proxyBeanMethods = false)
class MyObservationConfig {
    @Bean
    ObservationPredicate predicate() {
        return (s, context) -> {
            if (context instanceof ServerRequestObservationContext serverRequestObservationContext) {
                HttpServletRequest carrier = serverRequestObservationContext.getCarrier();
                return !carrier.getServletPath().startsWith("/actuator");
            }
            return true;
        };
    }
}

The Context would be fully populated inside an ObservationFilter, but i can't find a way to prevent the observation being reported from ObservationFilter.

@jonatan-ivanov Do you know any way?

Comment From: braunsonm

@mhalbritter unfortunately as I mentioned in the original issue that doesn't work. At least it hasn't in my experience.

The first span will be able to get ignored that way but any subsequent observations will still be reported. Inside the predicate there doesn't seem to be a way to get the parent span so you can't recursively find out if a new observation is related to a request.

For example with that predicate, we can still see a call with a WebClient or RestTemplate get reported to our trace backend, since they are not using the HttpServletRequestContext

Comment From: jonatan-ivanov

If you want to prevent a span from being reported, you can: - Write an ObservationPredicate and filter out the Observation: this will also filter out metrics. - Write a SpanExportingPredicate (see: SpanIgnoringSpanExportingPredicate): this will only filter out spans and leaves metrics alone.

You can inject your own sampler but it is for a different use-case, I would go with the options above.

Here's a working example (similar to Moritz's: https://github.com/spring-projects/spring-boot/issues/34400#issuecomment-1453162960) that filters out Observations for actuator on the server (and on the client side): CommonActuatorConfig

I'm not sure I get the issue with subsequent spans: with actuator, how do you have any (custom healthcheck)? You can get the parent, there is a getParentObservation method.

Comment From: braunsonm

@jonatan-ivanov The problem with this solution is the predicate only acts on spans. I know there is a getParentObservation method but it is always null when a predicate is used to filter out the ServerRequestObservationContext.

What you end up getting is a bunch of Spring Security traces that are disconnected (have no parent) which makes a mess when you're using a tool like tempo and trying to query for things. This also means that any custom observation you have in your Spring application still get reported but you can't see the context of why they ran (if they were initiated by a call from a path that was excluded). Yes we do register custom health checks, but this use case goes beyond just ignoring actuator.

Comment From: jonatan-ivanov

I'm not sure what you mean by "the predicate only acts on spans". The ObservationPredicate acts on Observations the SpanPredicate acts on Spans. What else should they act on other than Observations/Spans?

I know there is a getParentObservation method but it is always null when a predicate is used to filter out the ServerRequestObservationContext.

Since the ServerRequestObservationContext belongs to the Observation that belongs to the request that the server received, it has no parent, that's the first Observation. What parent should it have?

What you end up getting is a bunch of Spring Security traces

Now we are talking! :) If you don't want to see the Spring Security spans at all, you can disable them. If you only want to see them when the Observation of the server request is not filtered out, then similarly you can disable them only if they don't have a parent.

Comment From: braunsonm

I think we are misunderstanding eachother so I put together a minimum reproducable sample you can play with.

What I expect to happen: Any spans related to a call to /actuator/health should not be reported.

What actually happens: Any custom observations, spring security observation, or datasource observations etc are still reported but are now disconnected.

From what I gathered from your reply, you are working off the assumption that something like this should work:

@Configuration
public class TestConfiguration {
    @Bean
    ObservationPredicate ignoreActuator() {
        return (s, context) -> ignoreActuatorRecursive(context);
    };

    public boolean ignoreActuatorRecursive(Observation.ContextView context) {
        if (context instanceof ServerRequestObservationContext serverRequestObservationContext) {
            HttpServletRequest carrier = serverRequestObservationContext.getCarrier();
            return !carrier.getServletPath().startsWith("/actuator");
        }

        if (context.getParentObservation() != null) {  // <----- getParentObservation() is always null
            return ignoreActuatorRecursive(context.getParentObservation().getContextView());
        }

        return true;
    }
}

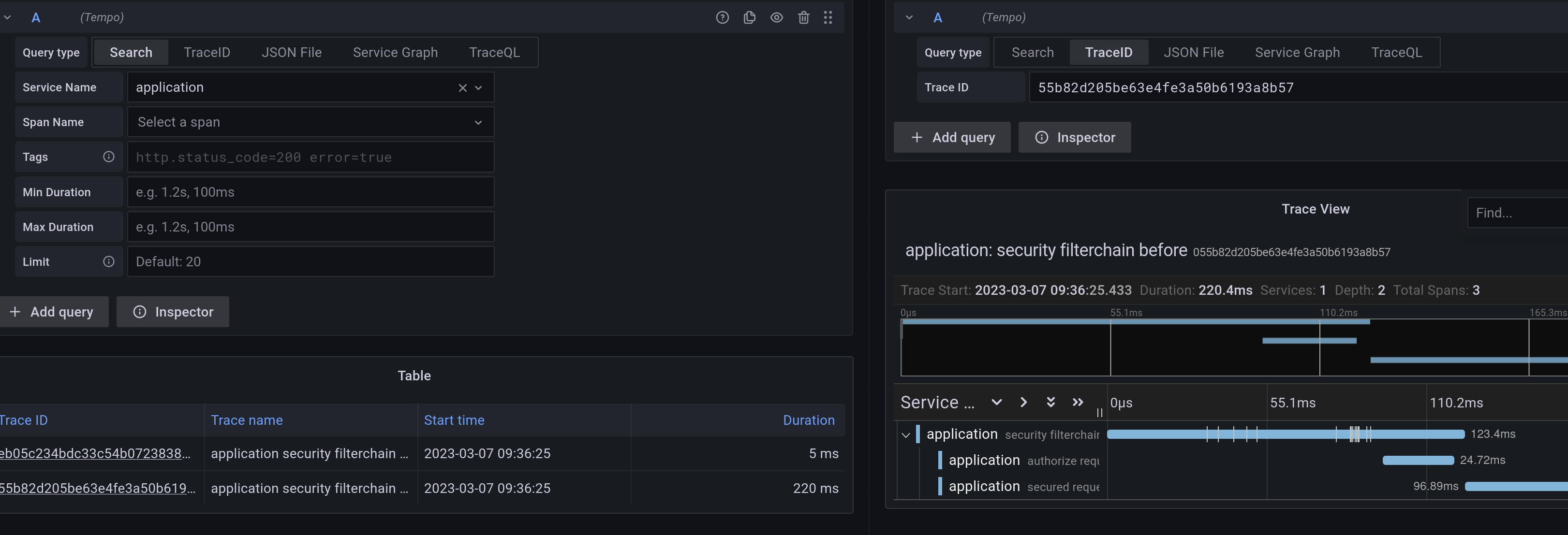

This results in the following being reported: SpringBoot Provide configuration for ignoring routes from being sampled

This is incorrect behaviour as it creates disconnected spans and doesn't actually result in any meaningful reduction in data reported to the tracing backend. The configuration doesn't work for a few reasons: 1. There is never a parent observation on these observations 2. Spring security does not have http.url attributes to match on (and they shouldn't) 3. Any custom observations you might have in your application, like datasources etc will also be reported here unless you add attributes to match the URL on to every single observation (some of which you do not control)

Does this help you at all? This application is running with only that configuration, and the following in the pom:

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>3.0.3</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.example</groupId>
    <artifactId>demo</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>demo</name>
    <description>Demo project for Spring Boot</description>
    <properties>
        <java.version>17</java.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-security</artifactId>
        </dependency>
        <dependency>
            <groupId>io.micrometer</groupId>
            <artifactId>micrometer-observation</artifactId>
        </dependency>
        <dependency>
            <groupId>io.micrometer</groupId>
            <artifactId>micrometer-tracing-bridge-otel</artifactId>
        </dependency>
        <dependency>
            <groupId>io.opentelemetry</groupId>
            <artifactId>opentelemetry-exporter-zipkin</artifactId>
        </dependency>
        <dependency>
            <groupId>io.micrometer</groupId>
            <artifactId>micrometer-registry-prometheus</artifactId>
            <scope>runtime</scope>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

Comment From: mhalbritter

A sample definitely helps, thanks. Can you please share it with us?

Comment From: braunsonm

@mhalbritter I did, it has no other changes than the configuration class above. I also provided all the dependencies used. If that isn't enough and you're looking for more let me know..

Comment From: jonatan-ivanov

I guess what @mhalbritter is asking is a project we can clone, import to the IDE and debug. What we see is a code snippet above not a sample project.

I haven't tried to set-up a sample project for this but there is one thing that confuses me, in your snippet I see this:

if (context.getParentObservation() != null) {  // <----- THIS IS NEVER TRUE

But then you say:

There is never a parent observation on these observations

So is there a parent or not. If there is a parent, what is it?

Comment From: braunsonm

There is never a parent. context.getParentObservation != null is always false (ie it is always null). I will modify my comment in that code snippet to make it more clear. I don't have a sample project to load for you, but I provided all the pom and code you would need to run it locally.

Comment From: jonatan-ivanov

So the security spans should have a parent. That was my assumption when I tried to provide you a workaround: if they always have a parent, the only scenario when they don't is when their parent is ignored so you can ignore them too so you can do something like:

if (context..getName().startsWith("spring.security.") && context.getParentObservation() == null) {
    return false; // assuming parent is also ignored
}

If this assumption does not hold, we need to fix instrumentation in Spring Security. Let us discuss this internally but could you please try another workaround? Could you please try to use a SpanFilter and set sampled to false for actuator spans?

Comment From: braunsonm

Your assumption does not hold. ALL Observations (ignored or not) do not have a parent set.

The function signature of SpanFilter's do not allow modifying a sampled state, just adding/removing data from the span as they operate on FinishedSpan.

https://github.com/micrometer-metrics/tracing/blob/e76ef15fd01df8d8711c7f3b9ee9003b1bae224f/micrometer-tracing/src/main/java/io/micrometer/tracing/exporter/FinishedSpan.java#L35

Instead I tried using a SpanExportingPredicate but it is never called. Types left in to make it clear.

    @Bean
    SpanExportingPredicate spanExportingPredicate() {
        return new SpanExportingPredicate() {
            @Override
            public boolean isExportable(FinishedSpan span) {
                return span.getTags().get("http.url") == null || !span.getTags().get("http.url").startsWith("/actuator");
            }
        };
    }

If it did get called I expect it would have the same problem as the ObservationPredicate

Comment From: mhalbritter

Sigh. Here's the sample: sb34400.zip. Instructions to run are in the readme.

Comment From: jonatan-ivanov

@mhalbritter Thank You!

@braunsonm

Your assumption does not hold. ALL Observations (ignored or not) do not have a parent set.

I'm sorry I missed that the parent is set after the predicate is tested so the parent will be there but not at the time where you need it in the predicate, I opened an issue to improve this: https://github.com/micrometer-metrics/micrometer/issues/3678

I think not being able to see what request the Spring Security Observations belong to is an issue, I created one for that too: https://github.com/spring-projects/spring-security/issues/12854 Fyi: this does not need any key-values or tags to be set it is enough if the Context holds this information since ObservationPredicate can access it.

Instead I tried using a SpanExportingPredicate but it is never called.

I missed that SpanExportingPredicate was added in 3.1.0-M1: https://github.com/spring-projects/spring-boot/pull/34002 If you want to use it, either you need to use 3.1.x or you can do the same what you see in the pull request (you might need to override (an)other bean(s)).

I think I can give you a not so simple workaround:

// This adds the http.url keyvalue to security observations from the root (mvc) observation
// You add an ignoreSpan=true keyValue instead if you want, or something that can signal to the SpanExportingPredicate what to ignore
@Bean
ObservationFilter urlObservationFilter() {
    return context -> {
        if (context.getName().startsWith("spring.security.")) {
            Context root = getRoot(context);
            if (root.getName().equals("http.server.requests")) {
                context.addHighCardinalityKeyValue(root.getHighCardinalityKeyValue("http.url"));
            }
        }

        return context;
    };
}

private Observation.Context getRoot(Observation.Context context) {
    if (context.getParentObservation() == null) {
        return context;
    }
    else {
        return getRoot((Context) context.getParentObservation().getContextView());
    }
}

// This ignores actuator spans but its logic depends on the ObservationFilter above
// Auto-configuration for SpanExportingPredicate was added in 3.1.0-M1
// So either you use 3.1.x or you can add the same to your config : https://github.com/spring-projects/spring-boot/pull/34002
@Bean
SpanExportingPredicate actuatorSpanExportingPredicate() {
    return span -> !span.getTags().get("http.url").startsWith("/actuator");
}

This workaround will not be necessary once the Spring Security issue above is fixed. What do you think about closing this issue in Boot? I think there is not much we can do here.

Comment From: braunsonm

Fine with me, in particular I do not think having http.url added to specific observations is the correct approach here, as I mentioned custom observations or ones provided by libraries would need to also have an attribute added to them that might have a leaky abstraction.

The micrometer issue you opened I think will solve this when it is completed.

Thanks for your thorough look into this issue.

Comment From: jonatan-ivanov

I do not think having http.url added to specific observations is the correct approach here

That's why I commented that you can use whatever data you want (e.g.: ignoreSpan=true), please feel free to use your own key-value, you "just" need to maintain the "contract" between the two components.

Comment From: sibethencourt

Hi @jonatan-ivanov I've tried to apply your fix by adding the config from https://github.com/spring-projects/spring-boot/pull/34002 but turns out that the SpanProcessor does not have the @ConditionalOnMissingBean annotation so I cannot replace it, unless there is some way that I don't know of?

It seems to be precisely the only bean that doesn't have the annotation, is that expected or could be a miss? https://github.com/spring-projects/spring-boot/blob/main/spring-boot-project/spring-boot-actuator-autoconfigure/src/main/java/org/springframework/boot/actuate/autoconfigure/tracing/OpenTelemetryAutoConfiguration.java#L127

Comment From: jonatan-ivanov

@sibethencourt If you check where the SpanProcessor is used, you will find SdkTracerProvider. So you might need to create a SdkTracerProvider as well depending on your situation.

This seems intentional to me, if you check how ObjectProvider<SpanProcessor> is used:

spanProcessors.orderedStream().forEach(builder::addSpanProcessor);

So it supports multiple processors that are additional.

Comment From: sibethencourt

Hi Jonatan,

thanks for the reply. Yes I managed to create a second span processor with support for SpanExportingPredicate but since the original is also there and I can't disable it, both were sending traces so at the end even if one managed to filter traces successfully the original was sending it anyway.

I think if I create a new SdkTracerProvider will work I'll give it a try, thank you 👍

Comment From: sibethencourt

Hi, I'm coming back to this because it's getting more complicated for me to filter all the child spans of a particular root trace. I wanted to see if there was a way to do it using opentelementry API, and this is what I've found so far: As @braunsonm mentioned at the beginning Sampler wouldn't work because at that time all the traces are empty. The only solutions I found would be to use SpanExportingPredicate or SpamFilter, (I only use opentelementry API so any micrometer option wouldn't work for me). To be able to filter all the child spans, first I need to keep track of the root.traceId for any trace that I want to filter, and then make sure I also filter all the spans with parent equals any filtered trace. So fine, I implemented that, also a mechanism to clean up old traceIds that are too old and I managed to get something together, which seems to do the trick, until... I realized that the SpanExportingPredicate receives the child spans first and then at the end receive the root trace 🤦 So now, I don't have any way of knowing if a child span should be filtered because I would only see the root trace when it's too late. I'm sure something must be wrong in my code but couldn't figure out what's going on from here.

Is this by design? Am I doing anything wrong? it seems to complicated for what it should really is 🤔
